Backrest Assembly - Rogue 2
Backrest Installation
NOTE: Remove existing backrest before beginning the installation process.
NOTE: If replacing the whole backrest, the backrest will come as an assembly and the first two
steps can skipped.

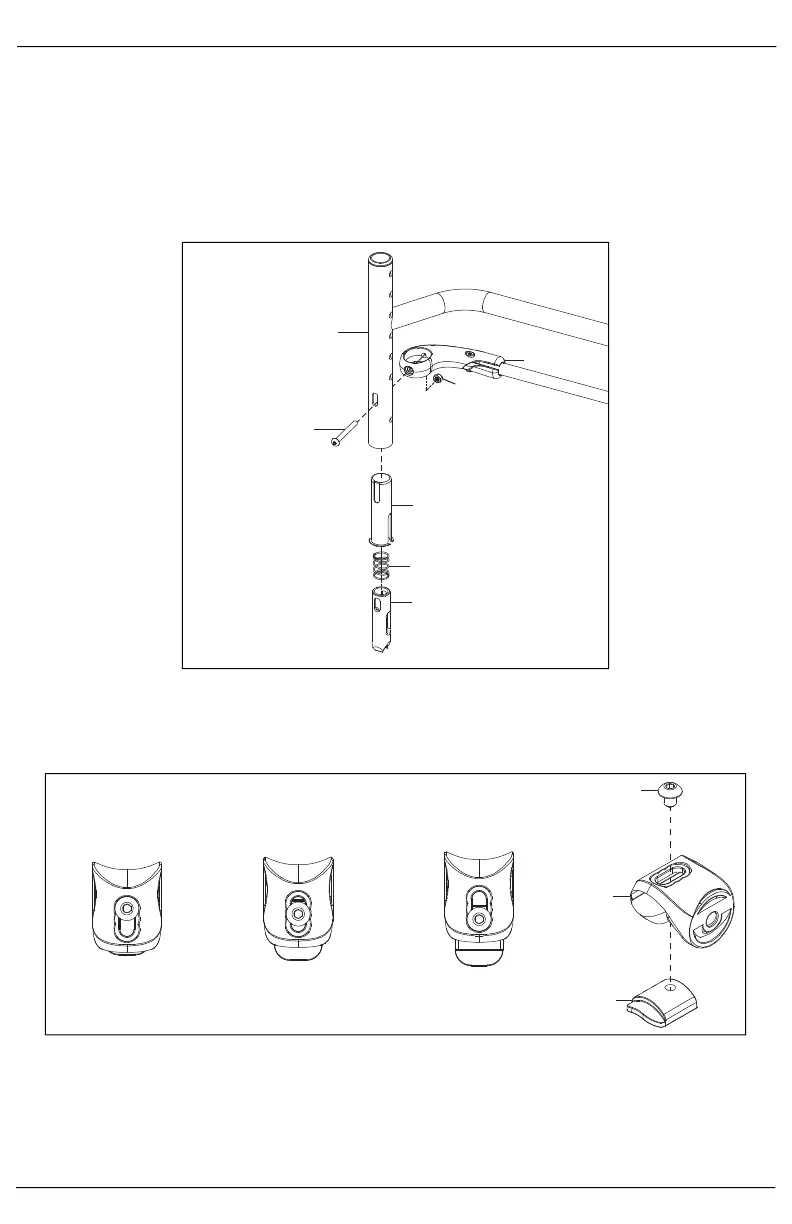

1. Install the release lever assembly (B) onto the back post (A) with a screw (D) and nut (C) using a 3mm
Allen wrench. The screw will pass through the tube sleeve (E) and release pin (G) which are installed up
through the bottom of the back post. The compression spring (F) is installed up through the bottom of
the back post also, but the bolt doesn’t pass through it. Repeat steps on opposite side of back post.
2. Secure the relax bumper (C) to the relax saddle (B) with the screw (A) using a 4mm Allen wrench. There
a
re three index slots that the screw can be installed in - the top (9°), middle (4°) and bottom (0°). Install
the screw in the desired position and repeat steps on the second set of saddles and bumpers. Ensure
both sides are set in the same position.
A
B
C
D
E
F
G
9° Relax Position
4° Relax Position
0° Relax Position
A
B
C
