High Mount Angle Adjustable Footrest

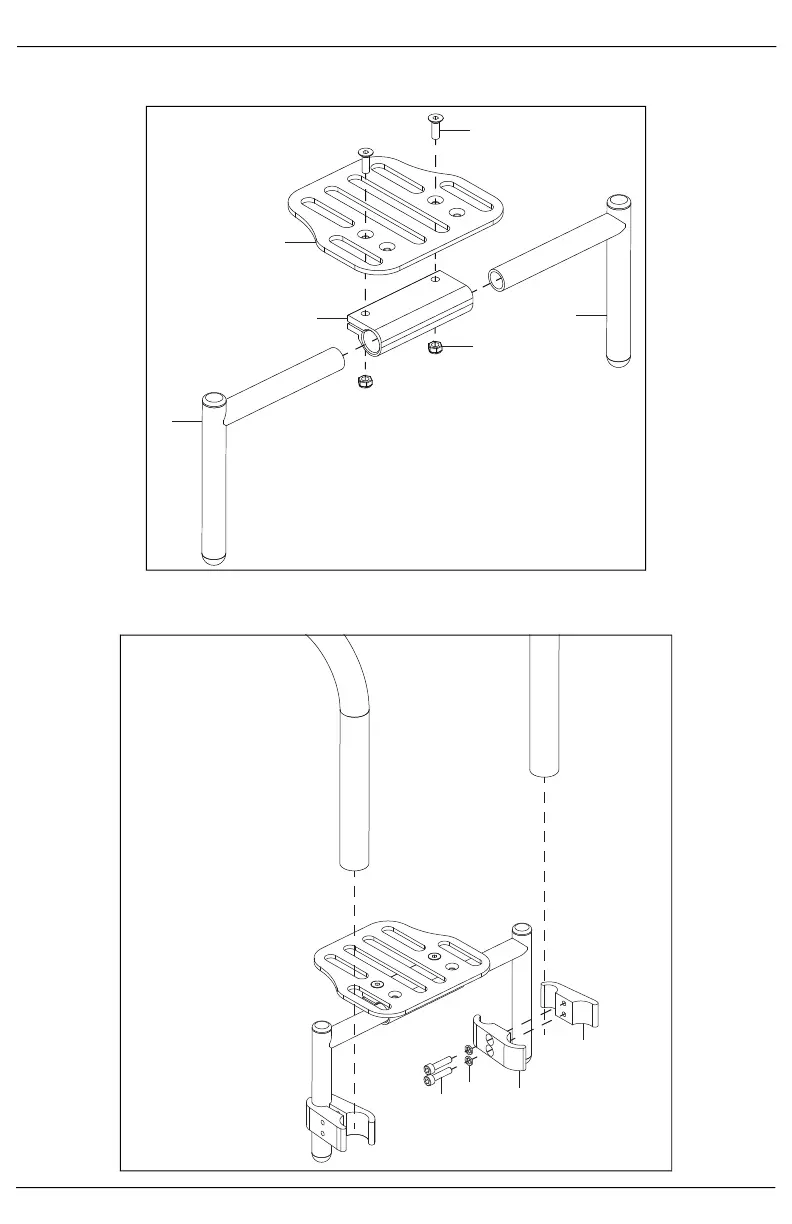

1. Install the footrest tubes (A) into the footrest adjustable clamp (B) and secure by installing the footrest
platform (C) onto the clamp with two screws (D) and two nuts (E) using a 5mm Allen wrench.
2. Install the two clamps (C & D), one end on the footrest tube and the other end around the frame tube,
with two screws (A) and two lock washers (B) using a 5mm Allen wrench.
A
A
E
B
C
D
Shown
assembled
without frame
tube in place.
A
B
C
D
