15
Index Towers and Camber Tube

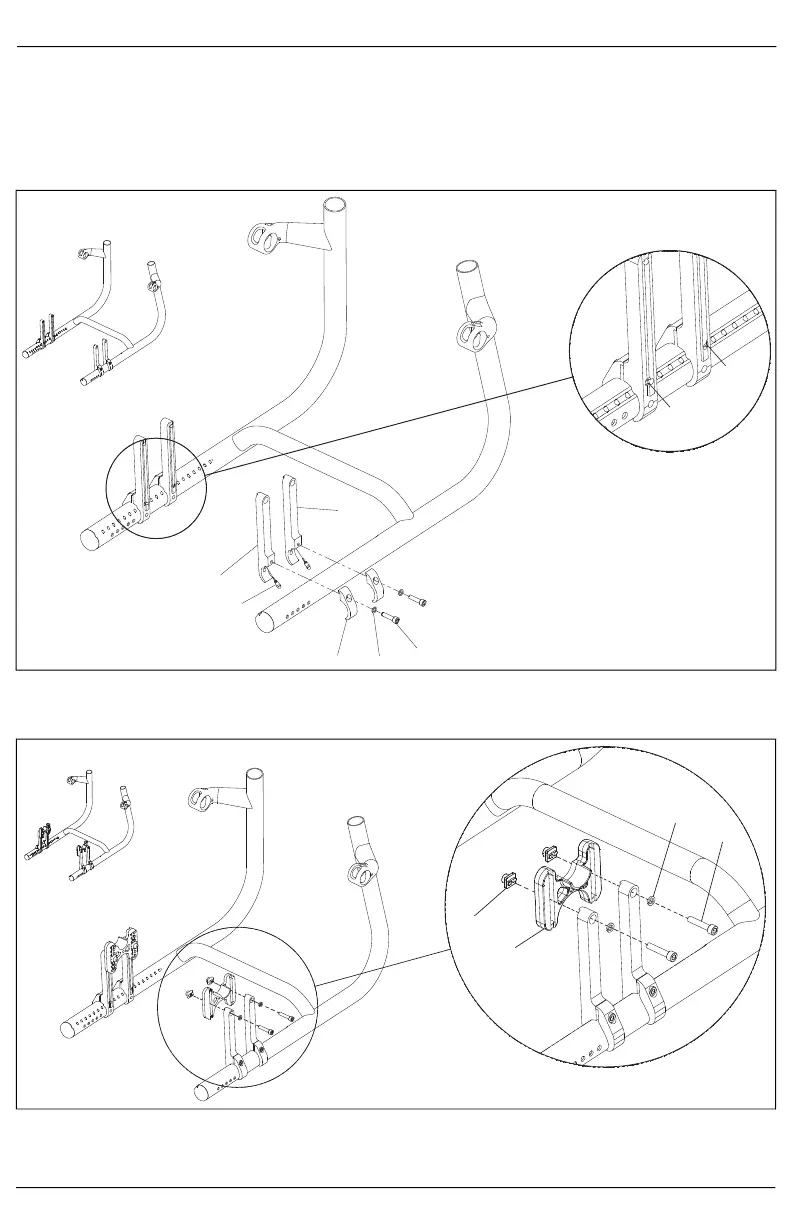

NOTE: The install is easier if the frame is flipped upside down as shown below.
1. Install the dimple buttons (B) into the rear index clamps (A & C).
2. Install the rear index clamps (A & C) onto the frame along with the rear tower outer clamps (D) with two
bolts (F) and two washers (E) per side, using a 5mm Allen wrench.
3. Repeat on the opposite side, ensuring both sets of index clamp assemblies are set in the same location
on both sides of the frame.
4. Install the upper base mount (B) onto the rear index clamps with two bolts (D), two washers (C) and two
square nuts (A) per side using a 5mm Allen wrench. Repeat on opposite side.
Rear tower
dimple
should face
rearward.
Front tower
dimple should
face forward.
A
B
C
D
E
F
