45
Transit

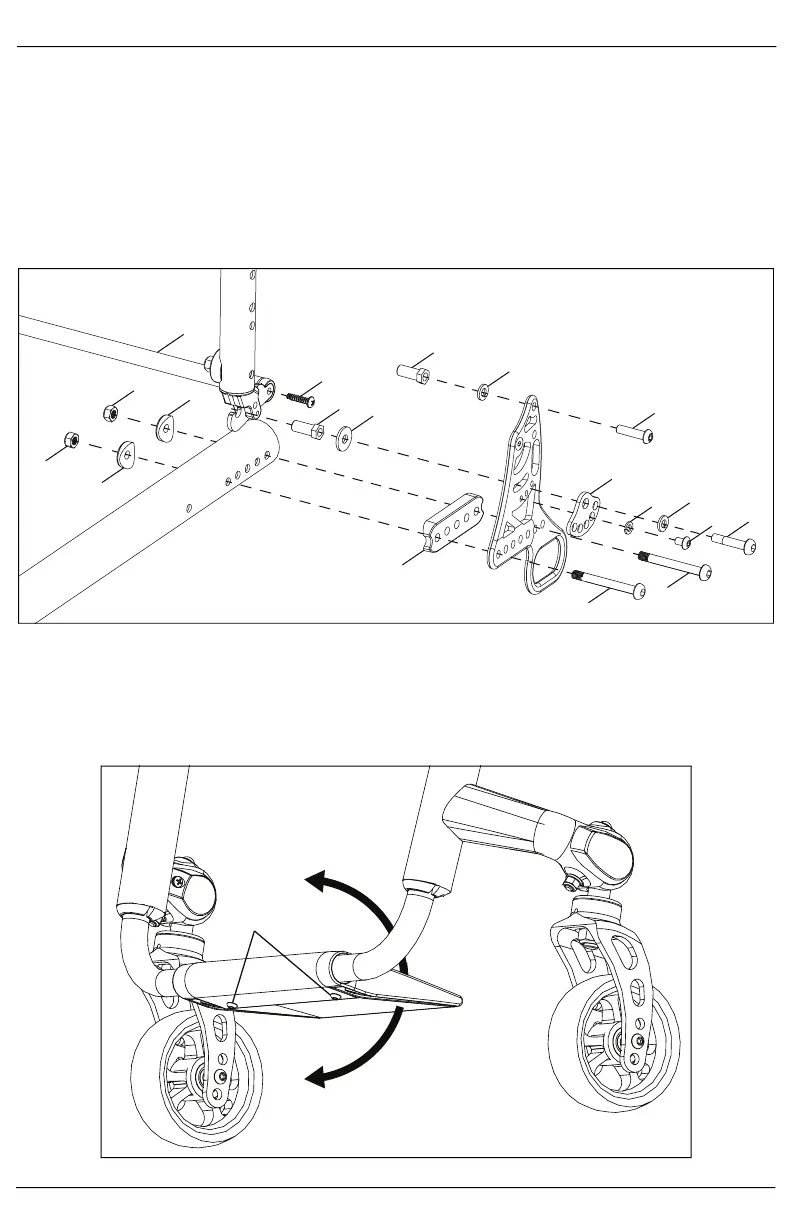

6. Install two bolts (J & K), two lock washers (F & I), arc adjustment cam (H), washer (E) and strike hex (D)
using a 3mm and 4mm Allen wrench along with a 10mm wrench.
NOTE: The angle of the backrest can be adjusted using the different arc adjustment cam holes.
Choose the configuration that works best for the chair user.
7. Secure backrest assembly to the frame by installing two bolts (L), saddleback (M), two saddles (B) and
two nuts (A) using a 4mm Allen wrench and a 10mm wrench.
NOTE: The two bolts (L) determine the seat depth based on the frame holes that are used. Choose
the configuration that works best for the chair user.
NOTE: Longer fasteners have been provided to accomodate a setup where the backrest and CG are
set in the same spot.
Hybrid Angle Adjustable Footrest
Angle Adjustment of Your Footrest
1. Loosen the two set screws (A) on the bottom of the footrest using a 4mm Allen wrench.
2. Rotate footrest to desired angle and secure in place by retightening the two screws.
Back plate is shown off the back post to
show other parts and hardware more clearly.
A
B
C
D
E
D
F
G
K
L
L
M
A
B
N
J
F
I
H
