Angle Adjustable Footrest

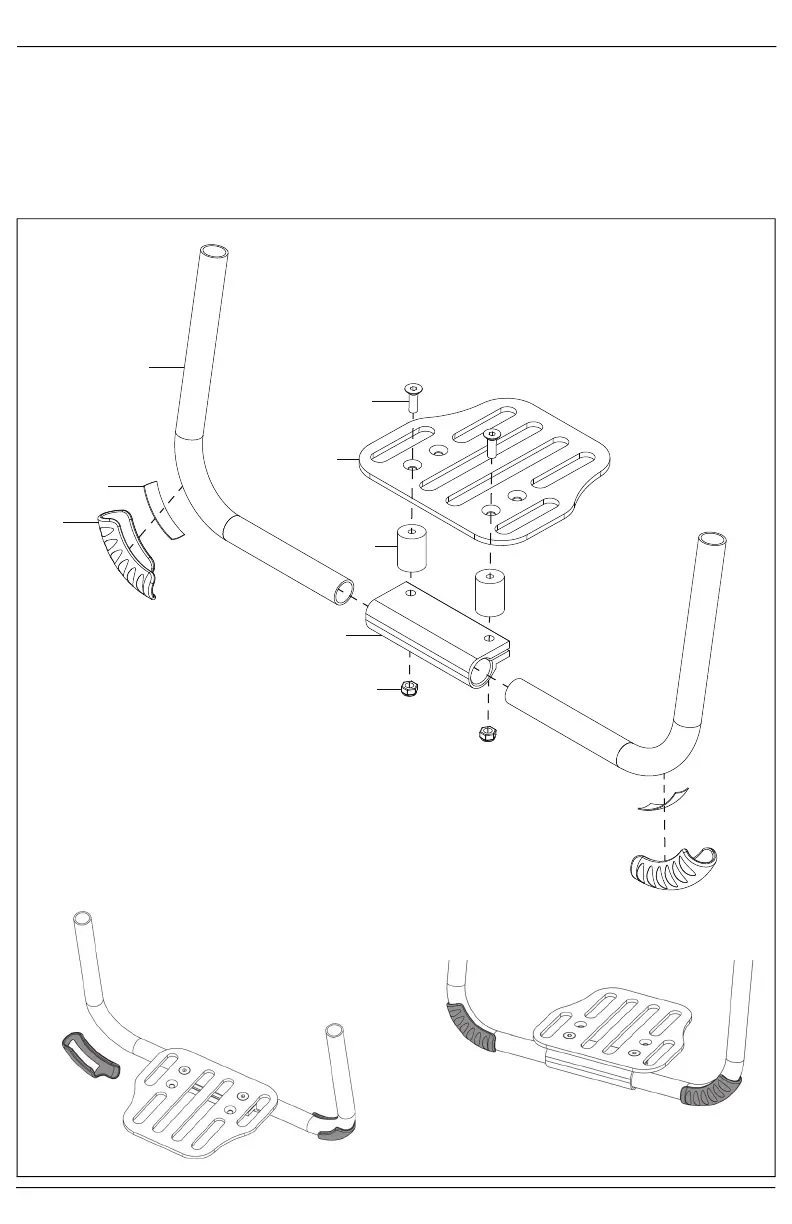

1. Install the footrest extension tubes (A) into the footrest adjustable clamp (G).
2. Install the footplate (E) onto the clamp and secure with two screws (D) and two nuts (H) using a 5mm
Allen wrench and a 10mm wrench. If a riser (F) is being used to elevate the footrest platform, install
between the footrest platform and the footrest adjustable clamp.
3. Install the footrest protectors (C) by peeling the backing off of the tape (B) and sticking the tape inside
the footrest protector. Peel the remaining backing off of the tape and snap footrest protectors onto the
footrest as seen below.
A
B
C
G
H
Apply tape to the
inside of the footrest
protectors.
Snap the footrest protectors
onto the footrest.
D
E
F
