66
One Arm Drive (OAD)
Installation

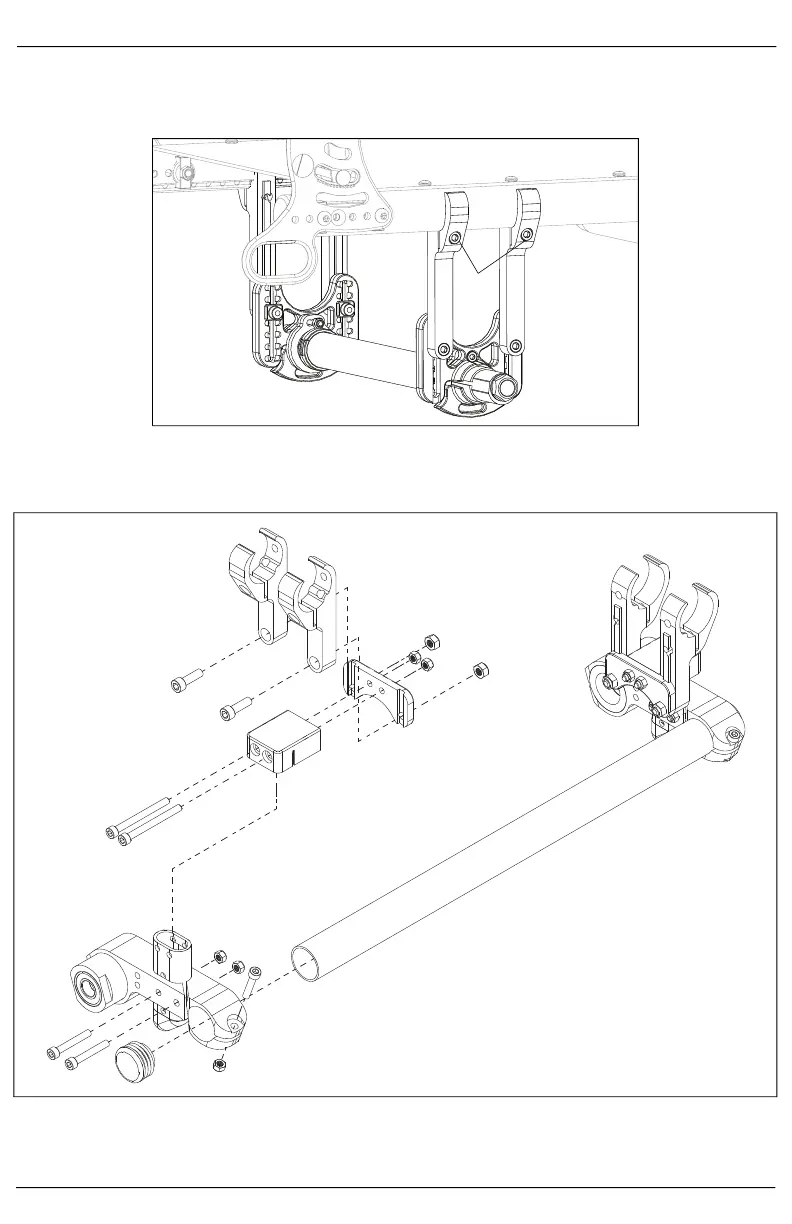

1. Remove wheels, camber tube and index tower assembly by removing two bolts (A) at the top of the
index towers on each side using a 4mm Allen wrench.
2. Assemble the camber mount tubes to the towers with the brackets and hardware shown below. Ensure
both sides are installed in the same positions. Do not fully tighten.
NOTE: When used with anti-tips, the anti-tip receiver would never be mounted upside down.
3. Reinstall the towers to the frame with the hardware from step 1 of the installation section.
