67
One Arm Drive (OAD)

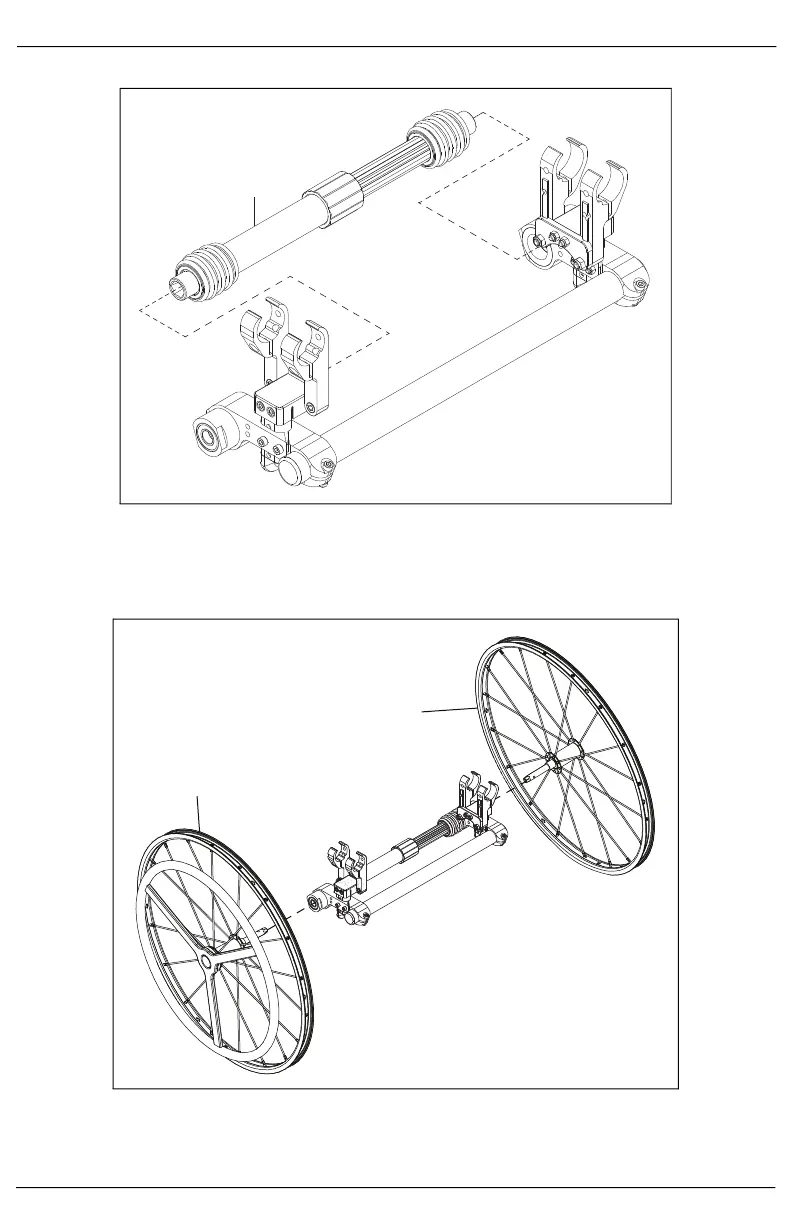

4. Before fully tightening, install the OAD drive shaft (A) into the two axle mounts.
NOTE: Visit the parts manual for full sizing and hardware guides.
5. Install the OAD wheels on both sides of chair. Install the OAD wheel with the handrim (A) on the desired
drive side. The OAD wheel with no handrim (B) is the following side and is installed opposite the drive
wheel.
A
B
Chair frame and tires are not
shown in image to show the
OAD wheel assembly more
clearly.
