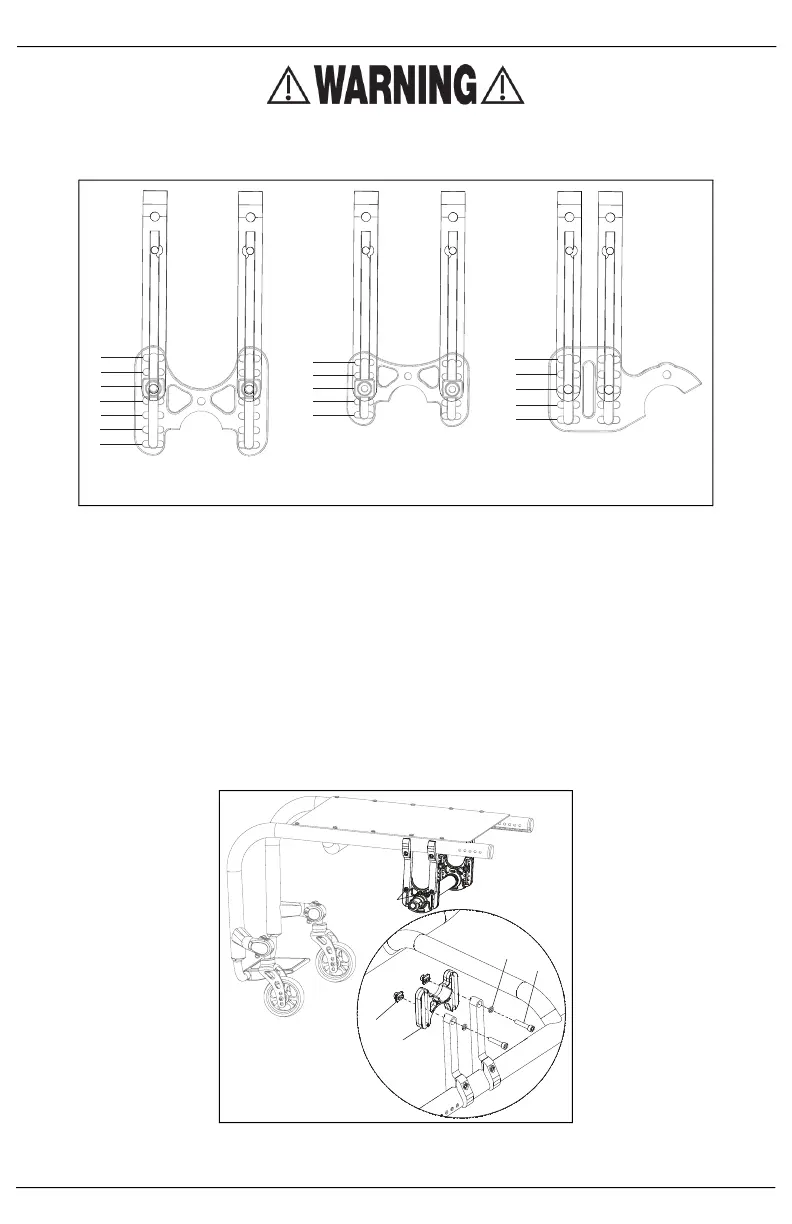

Seat Height Adjustment
WARNING: Repairs and adjustments not made by a qualified technician working for an authorized
Ki Mobility Dealer can result in poor performance or failure of the device which may cause serious
injury or death.
NOTE: Do not adjust the tower into index 1 or 2 when changing seat heights. You MUST order a
longer tower and mount it in an approved index position. Approved index positions are 3 - 7.
Rear Seat Height
Rear seat height can be adjusted by repositioning upper base mounts.
1. Remove your wheels by depressing the buttons on the quick release axle. For easier access, flip the
chair upside down.
2. Use a 4mm Allen wrench to loosen the two bolts (D), two washers and two square nuts (A) per upper
base mount.
3. Retighten the hardware in the new desired seat height hole on the upper base mount.
4. Repeat on both sides of the wheelchair.
5. When the desired height is reached, tighten the bolts (D) to 70 in/lbs.
NOTE: Height adjustments are in ¼" increments.
NOTE: A front caster adjustment should be made to correspond with any change in seat angle.
ROGUE 2 STANDARD
SHORT
ROGUE 2 AMPUTEE
ROGUE XP STANDARD
1
1
1
2
2
2
3
3
3
4
4
4
5
5
5
6
7
