KI ROGUE 2 - Height Adj. with Adj. Push Handle - Rogue XP

27
Height Adj. With Adj. Push Handle - Rogue XP
Assembly

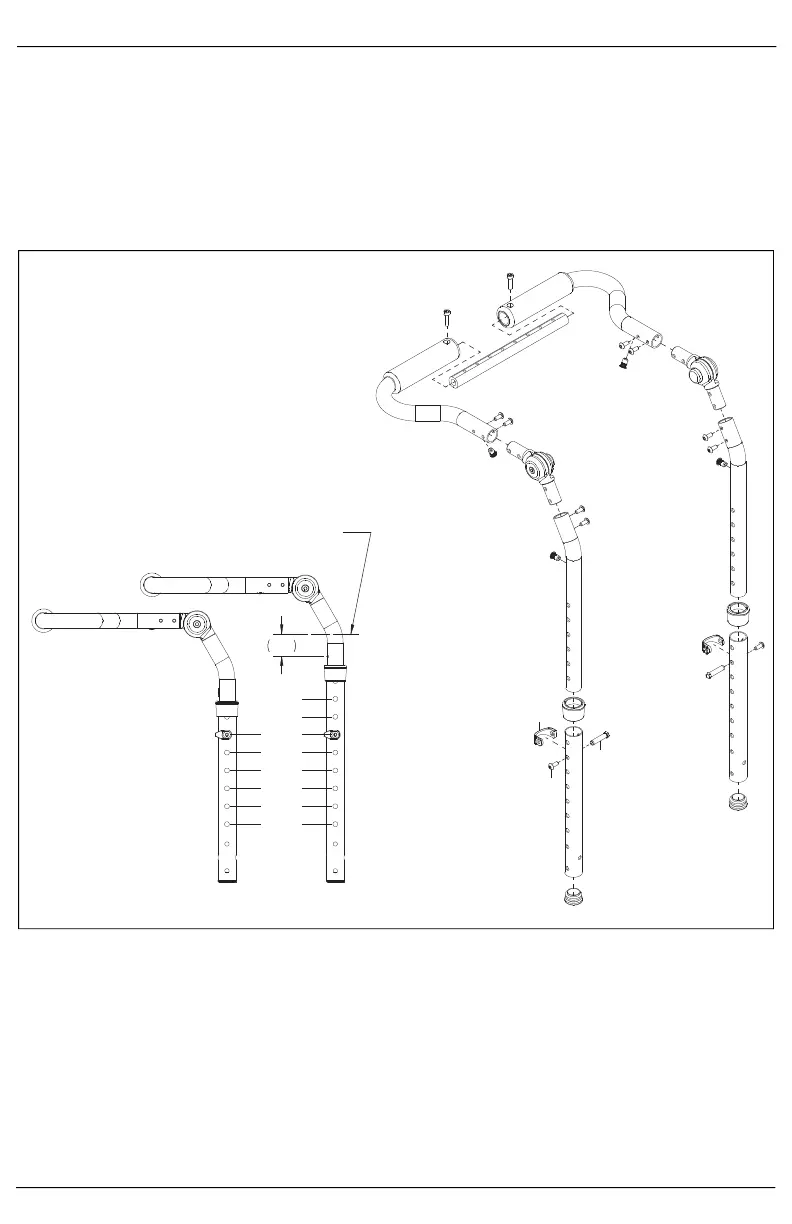

1. See image below for assembly of the Height Adjustable with Adjustable Push Handle back.
Height Adjustment
1. See the image below for callouts on which holes are used for the desired height configuration.
2. Remove the button head cap screw and hex bolt with a 3mm Allen wrench.
3. Slide the fastener restrainer collar to the desired hole and place the hex bolt into place.
4. Reinstall the the button head cap screw and tighten using 3mm Allen wrench. Repeat on opposite side,
ensure both sides are set in the same height configuration.
A
B
C
1.25”
22
21
20
19
18
17
16
1513
14
15
16
17
18
Back height is defined as 1.25” above rivnut,
rounded to nearest inch.
