KI ROGUE 2 - Swing Away Armrest

30
Swing Away Armrest
Rogue 2

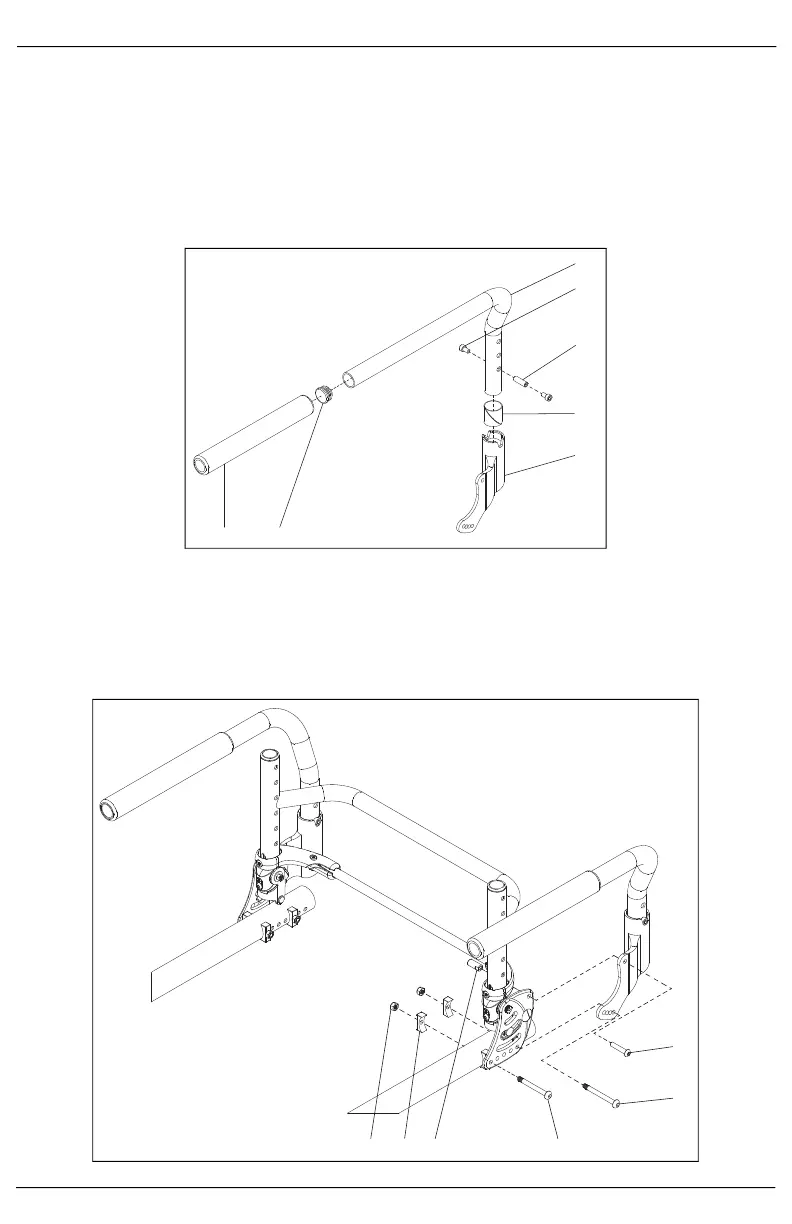

1. Install the tube plug (B) into the swing away arm (C) (if not already assembled).
2. Install the armrest foam (A) over the swing away arm (C) (if not already assembled).
3. Set the height of the swing away arm by using one of the three possible holes and install the two bolts
(D) using two 5mm Allen wrenches.
NOTE: The highest hole on the swing away arm will provide the lowest setting. The lowest hole will
provide the highest setting.
4. Install the swing away arm assembly into the receiver (G) with the sleeve (F).
5. Install the swing away arm assembly onto the outside of the backplates with three bolts (D,E & F), four
saddles (B - 2 inside of frame, 2 outside of frame), two nuts (A) and a strike (C). A 4mm Allen wrench
and a 10mm wrench are needed for the install. If existing hardware is present on the backplate, remove
and install what is shown below.
NOTE: Install the bolt (E) into the angle hole on the swing away receiver that makes the swing away
armrest parallel with the ground.
AB
C
D
E
F
G
A
B
CD
E
F
