Swing Away Armrest
Rogue XP

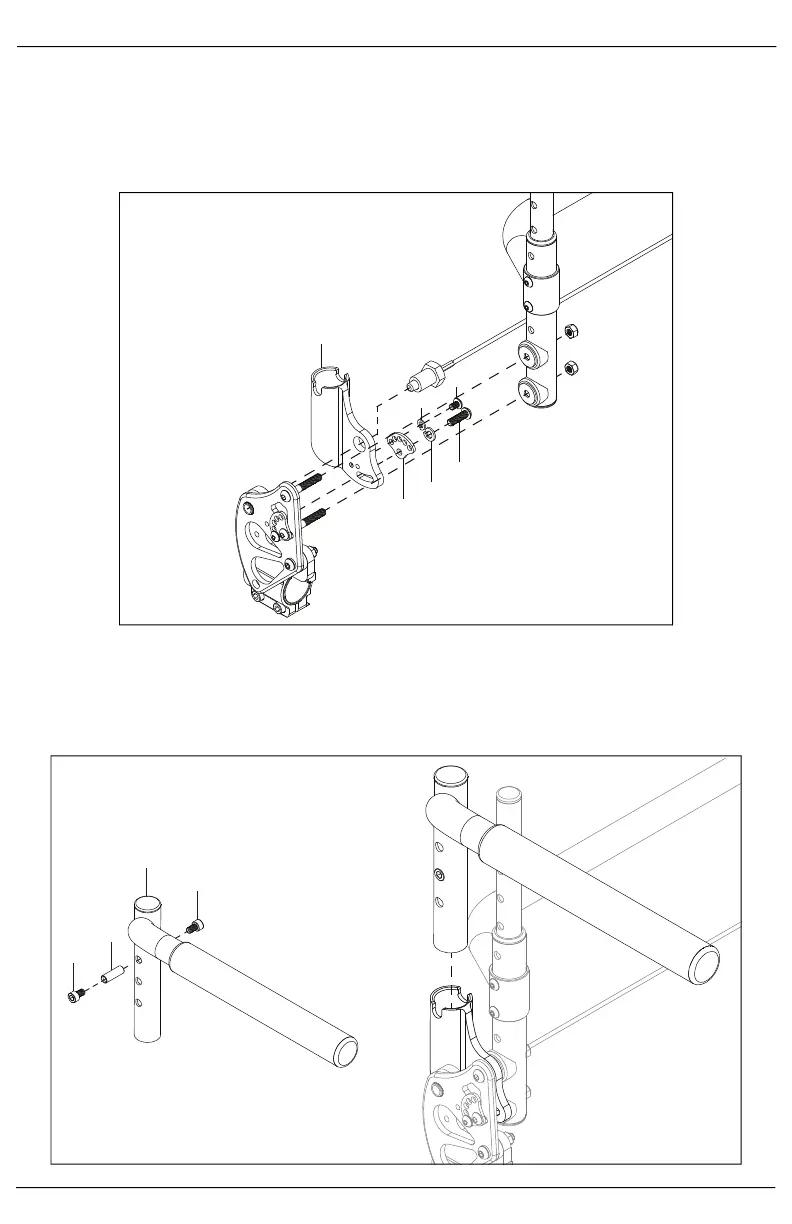

1. Detach the backrest from the backrest plate and install the swing away receiver (A) between the
backrest and backrest plate along with arc adjustment cam (D) with two screws (C& F) and two lock
washers (B & E) using a 3mm Allen wrench and a 4mm Allen wrench. See image below.
NOTE: The backrest cable will also need to be detached, put through the swing away receiver hole
and back into backrest plate.
2. Install two bolts (A) and the threaded barrel (B) into the swing away armrest (C). The bolts act as stops
when the armrest is dropped into the receiver, controlling the armrest height. Change height setting as
needed and repeat steps on opposite side.
NOTE: There is a short and tall swing away arm available. The short has a height range of 7" - 9" and
the tall has a height range of 9.25" - 11.25".
