Side Guards
Side Guard Receiver

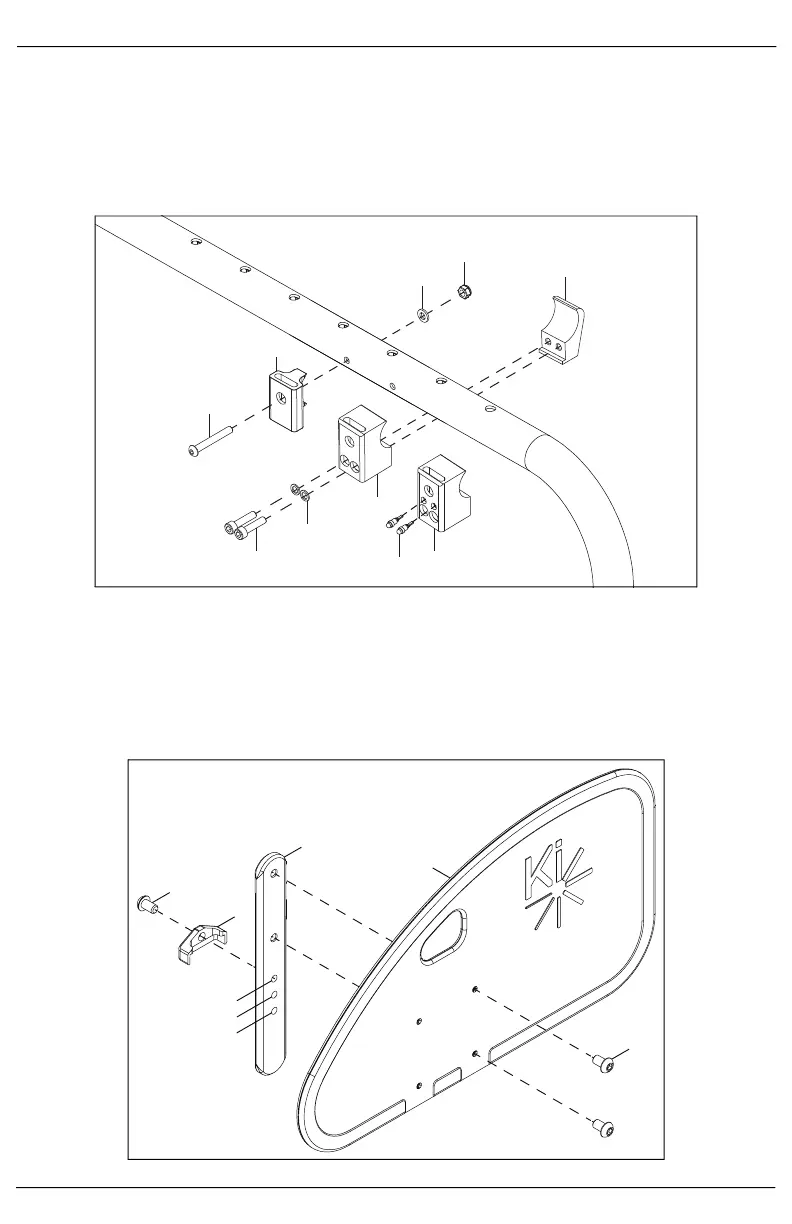

1. There are three types of side guard receivers that may be used. The mounted side guard receiver (B) is
installed onto the frame with screw (A), washer (C) and nut (D) using a 4mm Allen wrench and a 10mm
wrench. The clamp side guard receivers (G & H) are installed onto the frame with two screws (E) and
two washers (F) using a 5mm Allen wrench. The anti-rattle side guard receiver (I) is installed the same
way as the clamp side guard receiver, it just has two additional rubber buttons (J) installed into the
receiver. Repeat on opposite side.
Removable Adult Side Guard
1. Install the adult side guard (D) onto the side guard post (C) with two screws (A) using a 4mm Allen
wrench. On the opposite side, install the side guard post stop (B) with a screw (A) using a 4mm Allen
wrench.
NOTE: There are two sets of holes that the side guard post (C) can be installed onto the side guard
with. Choose the holes that place the side guard in the desired position. The height is also adjusted
with the hole that the side guard post stop (B) is installed in.
