Drum Brake - Rogue XP
7. Route the cable down the backrest cane to the drum brake.
8. Thread the end of the the cable through the hole in the pinch bolt and tighten after removing all play
from the cable.
9. Adjust cable until no wheel drag is present and positive lock is achieved with levers.

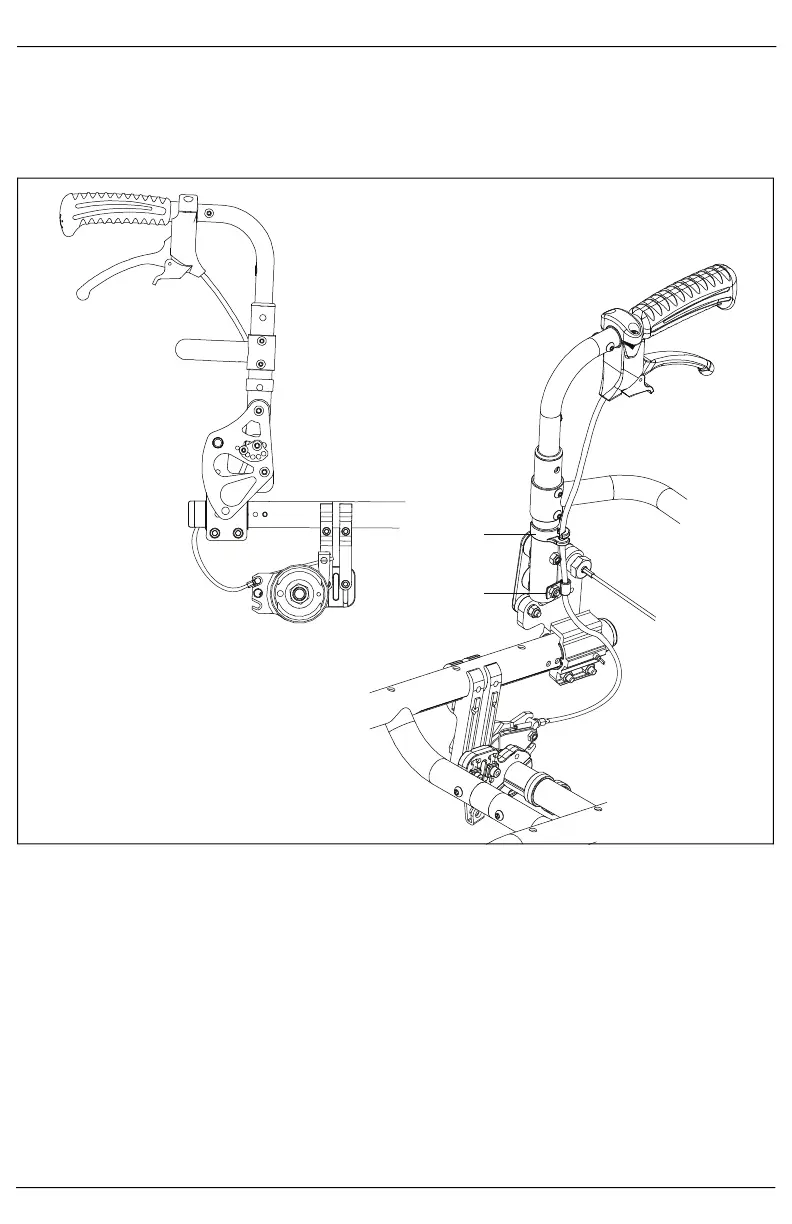

10. Secure cable to back cane and frame with cable clip (A) and P-Clip (B) as shown.
A
B
