Your vehicle at a glance
82

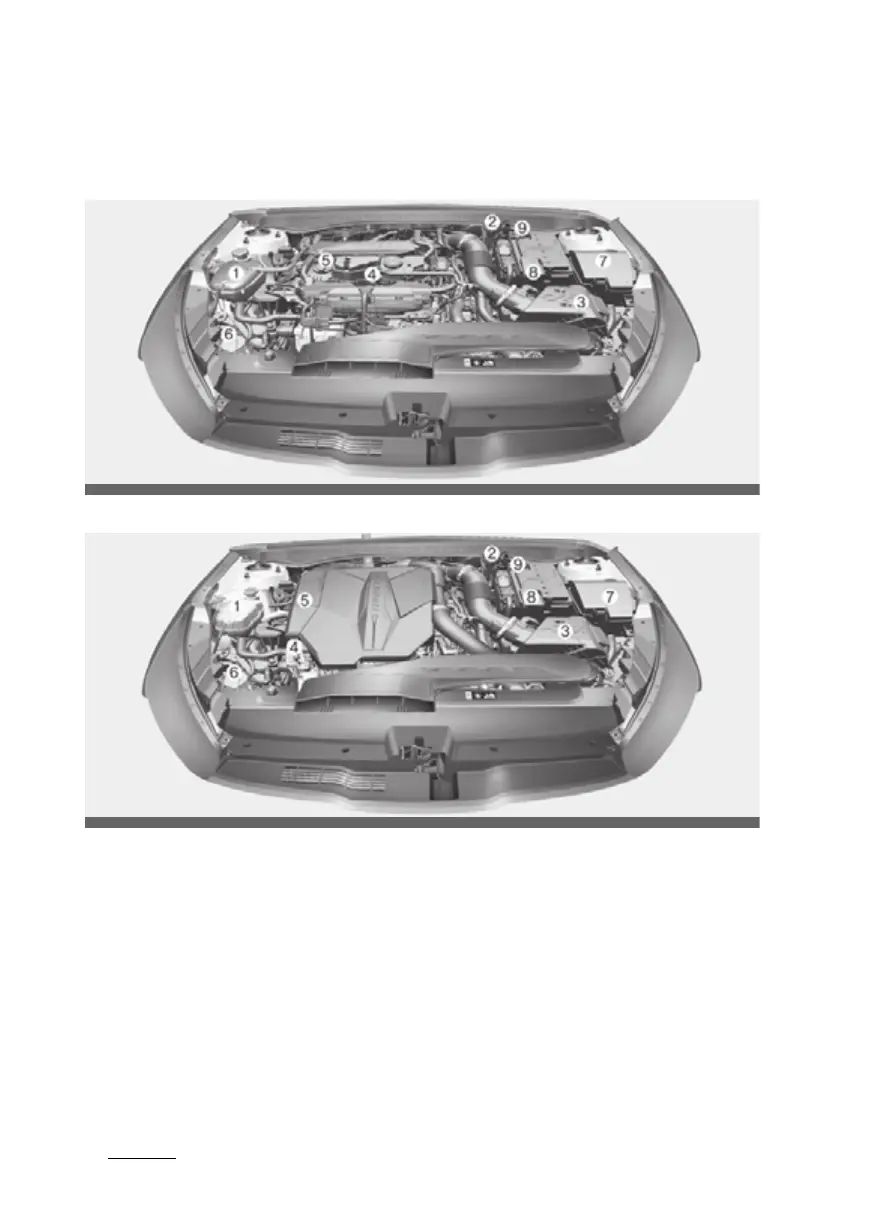

Engine compartment
Engine compartment
Smartstream G1.6 T-GDi
Smartstream G2.5 T-GDi
* The actual engine room in the vehicle may differ from the illustration.
1. Engine coolant reservoir 8-21
2. Brake fluid reservoir 8-24
3. Air cleaner 8-26
4. Engine oil dipstick 8-18
5. Engine oil filler cap 8-18
6. Windshield washer fluid reservoir 8-25
7. Fuse box 8-47
8. Positive battery terminal 8-31
9. Negative battery terminal 8-31
