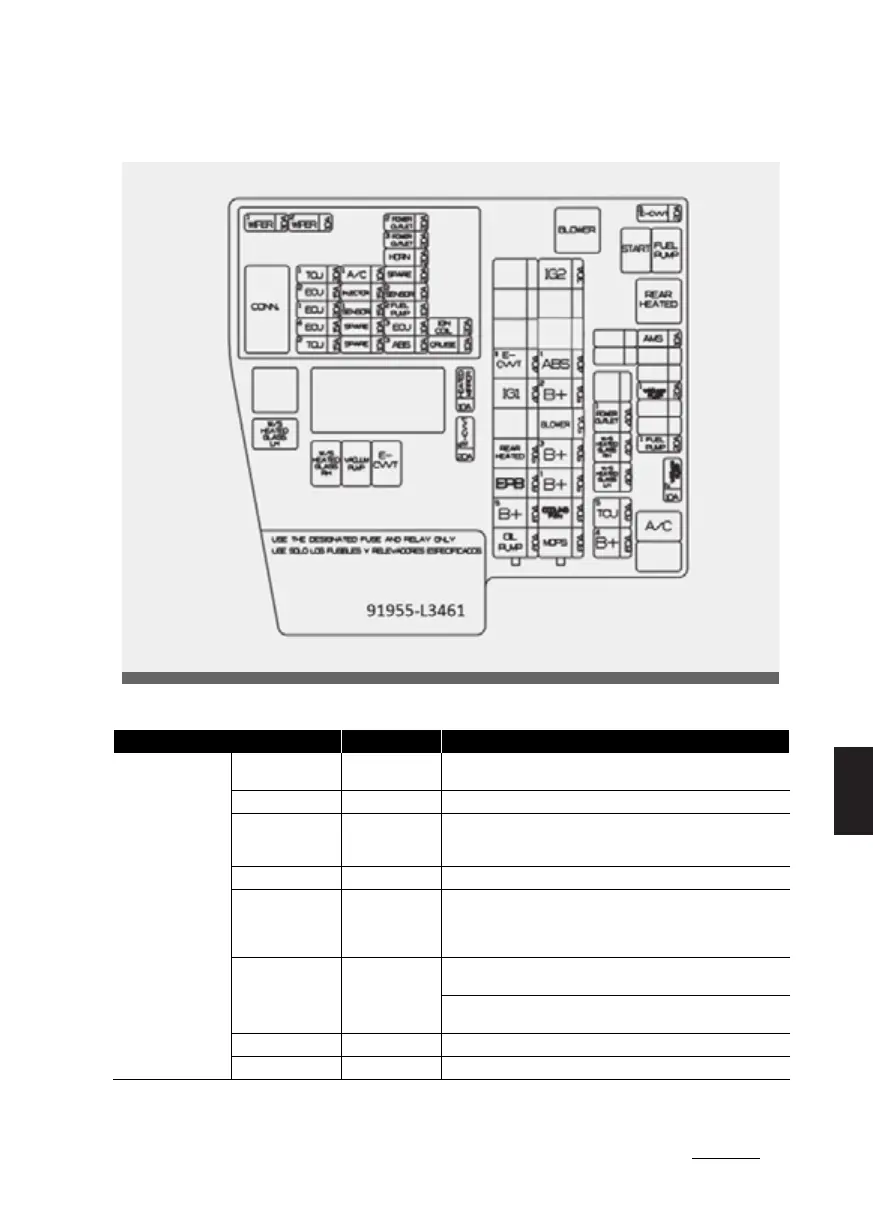

Maintenance Fuses
Smartstream G2.5 T-GDi
Refer to the following table for a description of the fuse.
Fuse Name Fuse rating Circuit Protected
MULTI FUSE-1
IG2 30A
Engine Room Junction Block (Start Relay), PCB Block (Ignition
switch2 Relay)
ABS1 40A ESC (Electronic Stability Control) Module
B+2 50A
ICU Junction Block (Instrument Panel Module1, Instrument Panel
Module3, Instrument Panel Module4, Fuse - AMP (Amplifier), IBU
(Integrated Body Control Unit)1)
BLOWER 50A Engine Room Junction Block (Blower Relay)
B+3 50A
ICU Junction Block (Instrument Panel Module5, Instrument Panel
Module6, Instrument Panel Module7, Instrument Panel Module8,
Instrument Panel Module9, Instrument Panel Module10, Instru
-
ment Panel Module11)
B+1 50A
ICU Junction Block (Fuse - P/SEAT(Driver), P/SEAT(PASS), CHILD
LOCK, MODULE1,
S/HEATER(RR), SAFETY P/WINDOW(Left Handle side), SAFETY P/
WINDOW(Right Handle side)
COOLING FAN 80A Cooling Fan Motor
MDPS 80A MDPS (Motor Driven Power Steering) Unit
To Next Page
