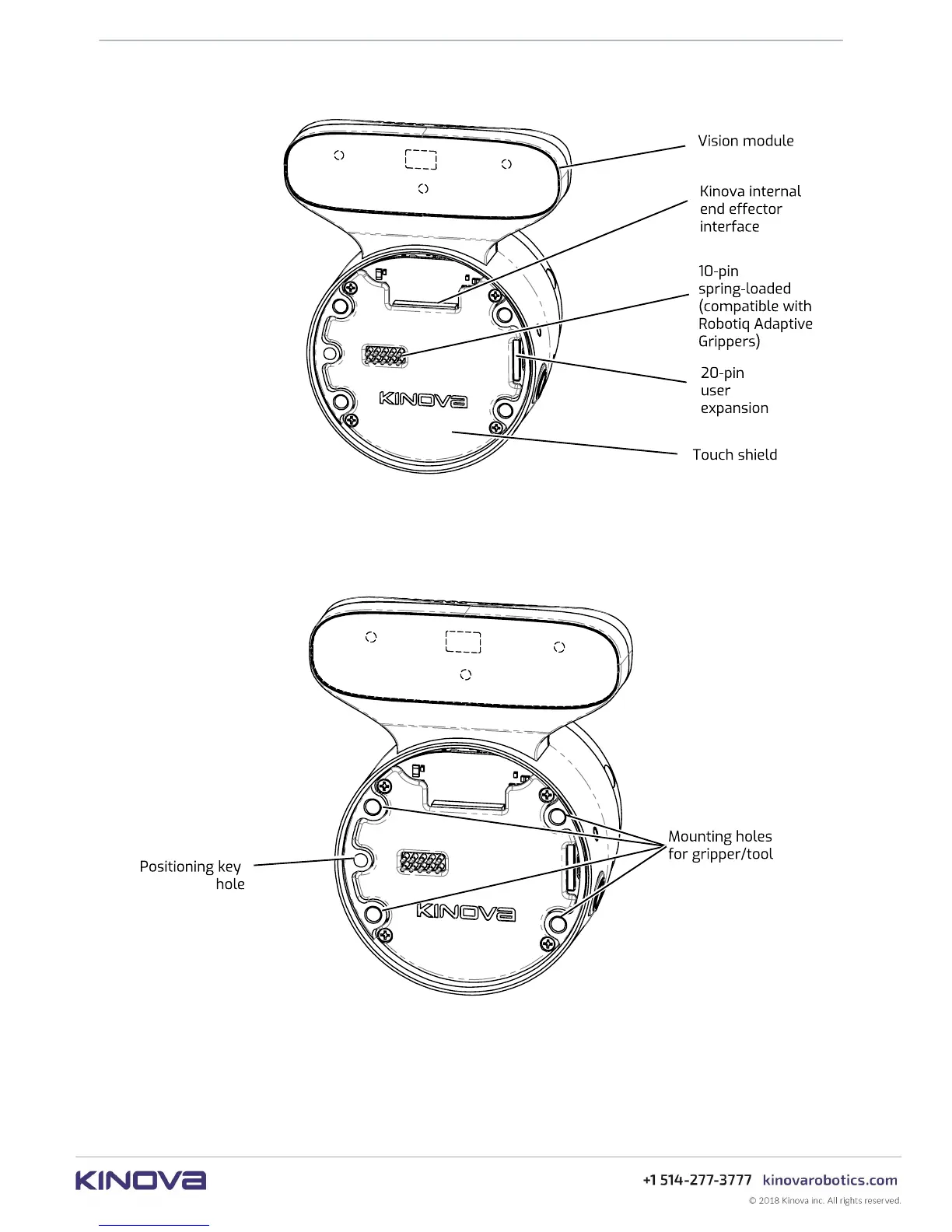

Figure 17: Interface module
The interface also includes four mounting holes for physical mounting of an end effector and a
position key hole used for alignment of the end effector in the right orientation.
Figure 18: Mounting holes and positioning key hole
The interface module includes a 6-axis accelerometer / gyroscope. The module also includes an
Ethernet switch to route connectivity and control data between the interface module and the
vision module and any connected tool (e.g. gripper).
