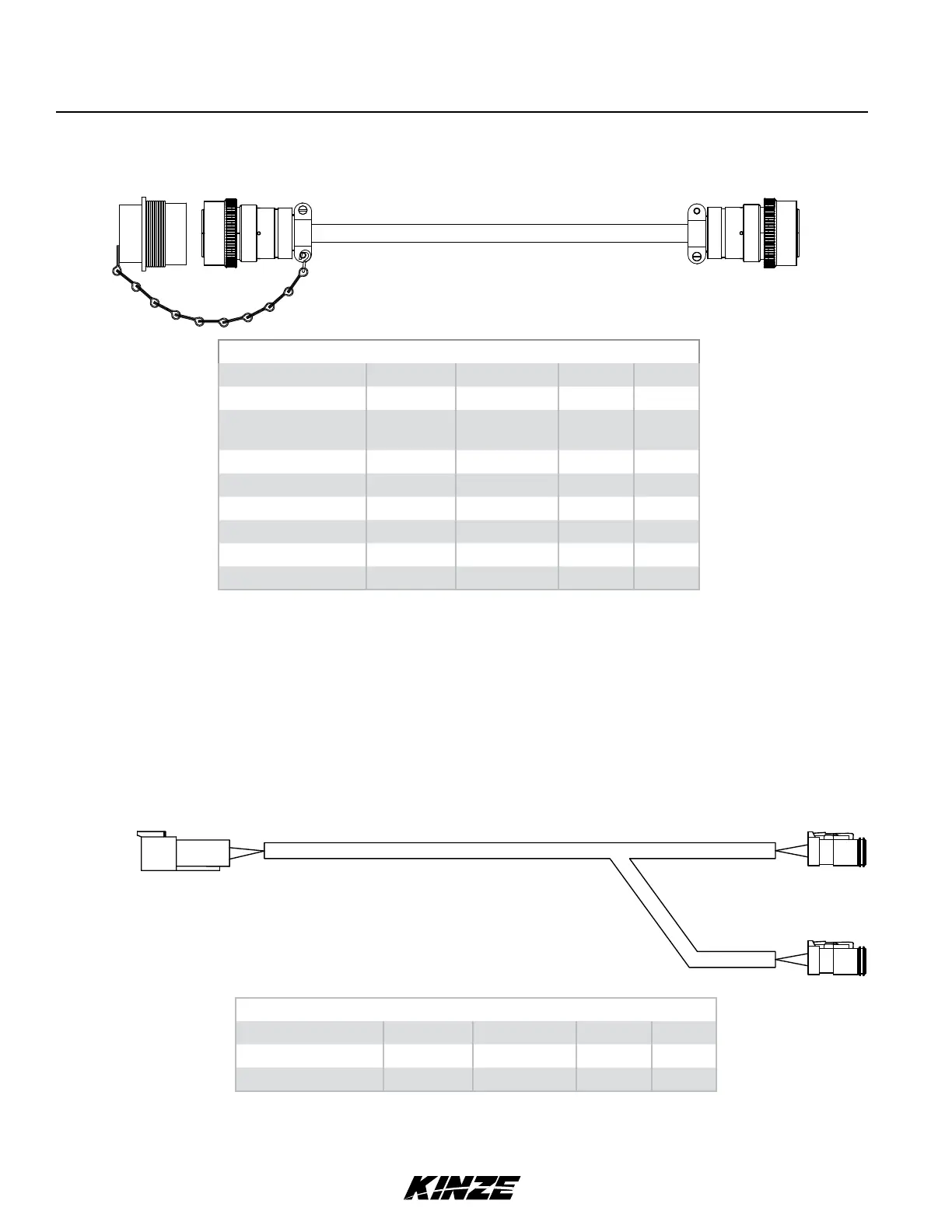

ISO EXTENSION CABLE - 12 ROW, 16 ROW, AND 24 ROW
Planter (PLT)Tractor (TRC)
P/N A19392
Signal Wire Gauge Color TRC PLT
ECU Power (12V DC) 14 Red/Orange 4 B
Dirty Tractor Power
(12V DC)
10 Red 3 G
Dirty Tractor Ground 10 Black 1 E
ECU Ground 14 Black/Orange 2 D
ISOBUS Can High 18 TQ Yellow 8 S
ISOBUS Can Low 18 TQ Green 9 T
TBC Power 18 TQ Red 6 J
TBC Ground 18 TQ Black 7 K
DRAWBAR HITCH CABLE - 12 ROW, 16 ROW, AND 24 ROW
P/N A18712
Signal Wire Gauge Color P LT HIT
Power 16 Red 1 1
Ground 16 Blue/Red 2 2
Planter (PLT)
Hitch (HIT)
Hitch (HIT)
