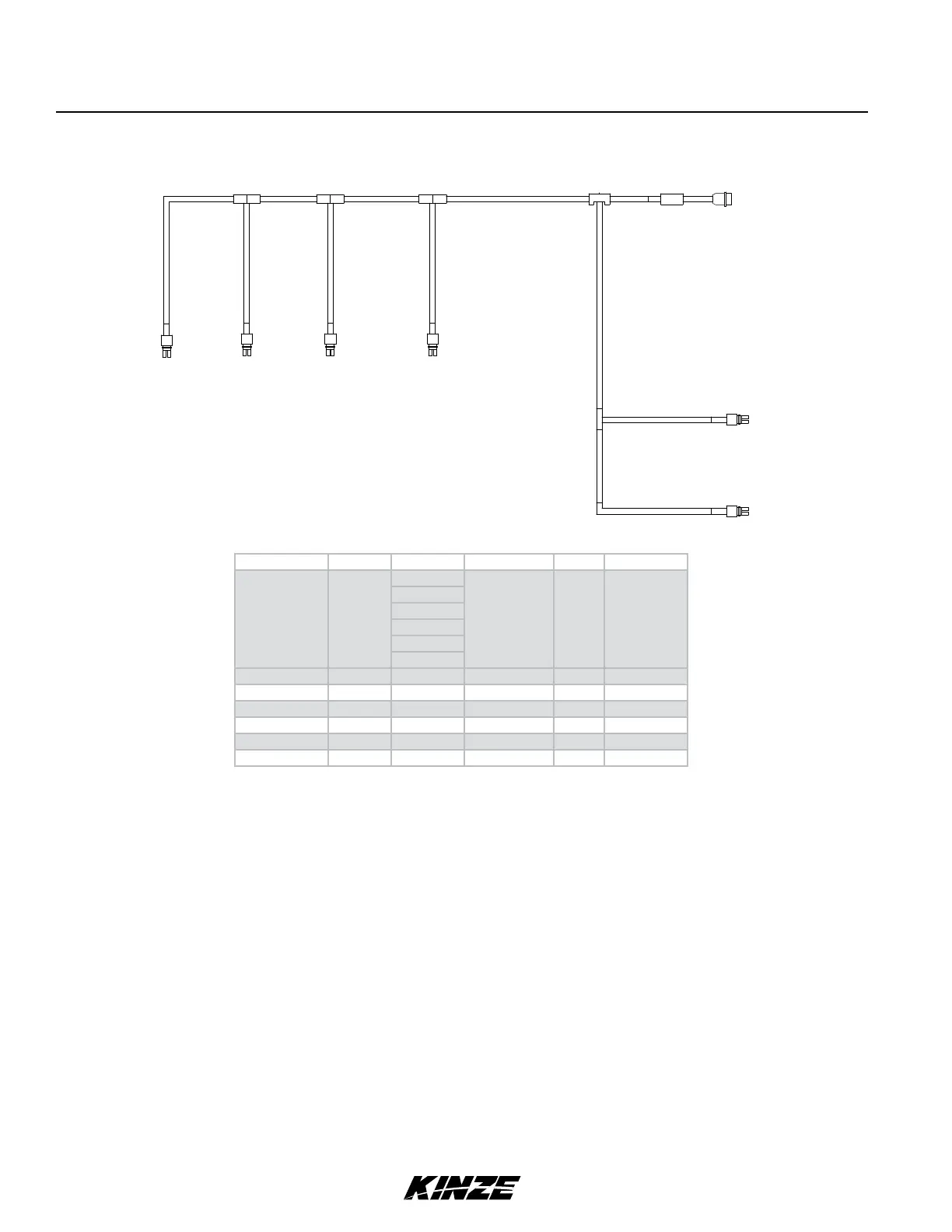

12V CLUTCH CABLE - 12 ROW
P5
P6
J1
P4P3P2P1
Wire Number From To Gauge Color Function
W1 J1-1
P1-A
16 Red Clutch Power
P2-A
P3-A
P4-A
P5-A
P6-A
W2 J1-2 P1-B 18 Yellow Row 12 or 1
W3 J1-3 P2-B 18 Green Row 11 or 2
W4 J1-4 P3-B 18 Pink Row 10 or 3
W5 J1-5 P4-B 18 Orange Row 9 or 4
W6 J1-6 P5-B 18 Brown Row 8 or 5
W7 J1-7 P6-B 18 Black Row 7 or 6
To Next Page
