M0290-01Model 4900
TM
Row Unit Operation
3-22 Rev. 8/19

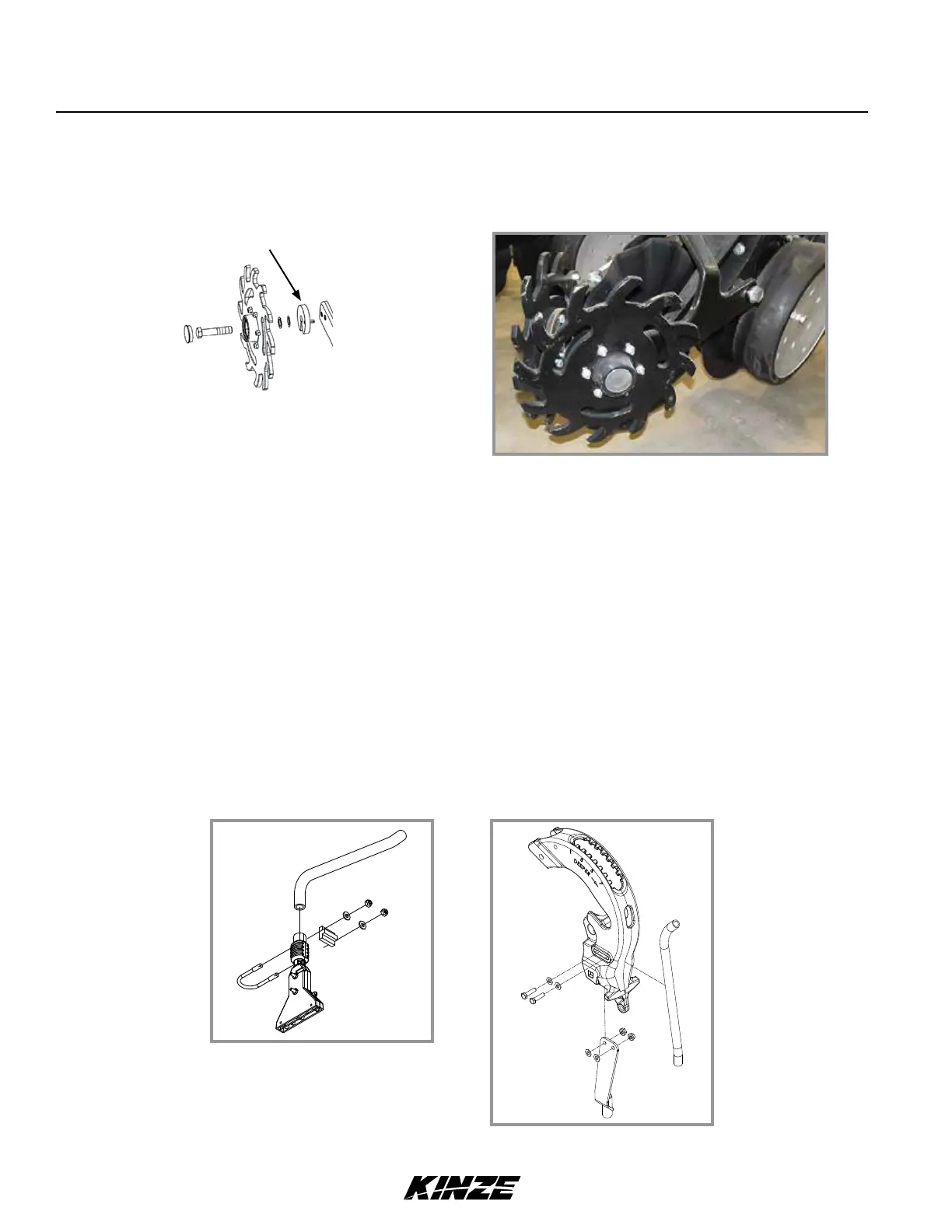

COULTER MOUNTED RESIDUE WHEELS
Coulter mounted residue wheels are designed for use on row units.
Coulter Mounted Residue Wheels
Residue wheels attach to row unit mounted coulter with two cap screws and sleeves allowing unit to free-float. A
2-position spindle bolt mounting positions wheels interlocked or staggered. Depth adjustment is made with a spring-
loaded cam and pin with 11 positions in ¼" increments (Style A); 8 Postions in /" increments (Style B). A high point
on the cam allows wheels to be locked up.
A weed guard on the inboard side of each wheel helps prevent weed wrap which can cause premature bearing failure.
NOTE: Opening in weed
guard must face down.
Weed guard
Straight Drop In-furrow Placement
4½" Slope-compensating Bander
GRANULAR CHEMICAL BANDING OPTIONS
Granular chemical banding options allow 4½" slope-compensating banding, straight drop in-furrow placement or 14"
rear banding.
NOTE: Granular chemical rear bander is not compatible with covering discs/single press wheel option.
