Kinze 4900 - 4 K Row Unit Seed Meter Harness - 12 Row, 16 Row, and 24 Row

TM
Model 4900M0290-01
Rev. 8/19 6-67
Lubrication and Maintenance

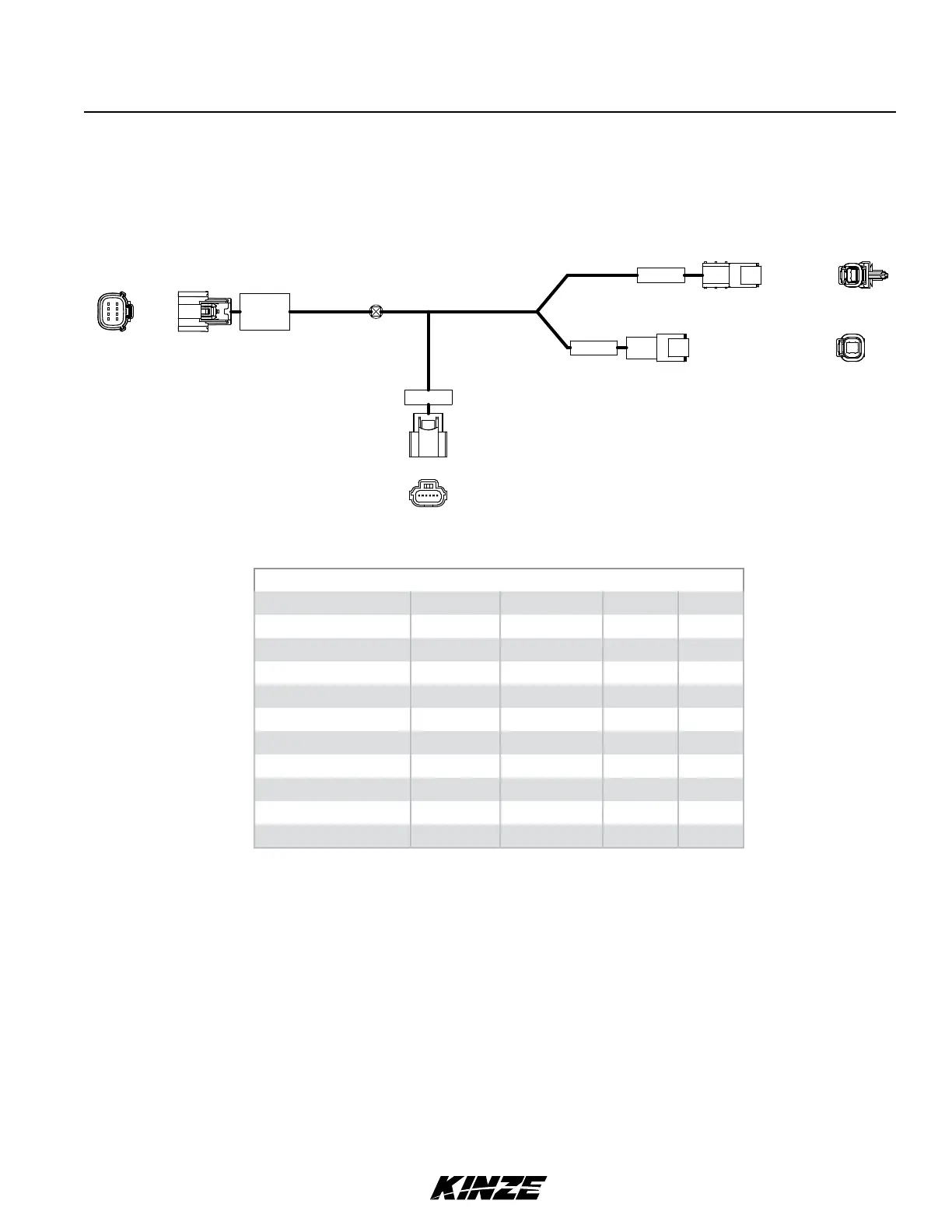

4K ROW UNIT SEED METER HARNESS - 12 ROW, 16 ROW, AND 24 ROW
P/N A25203
Signal Wire Gauge Color From To
Seed Meter Motor 1+ 18 Red P1-1 P2-1
Seed Meter Motor 1- 18 White P1-2 P2-2
Seed Meter Motor 2- 18 Black P1-3 P2-4
Seed Meter Motor 2+ 18 Green P1-4 P2-3
Seed Sensor (Power) 18 TXL Red P1-5 P3-1
Ground 18 Black P1-6 SP1
Seed Sensor (Lin) 18 TXL Blue P1-7 P3-2
Seed Sensor (Ground) 18 TXL Black SP1 P3-6
Manual Run (Ground) 18 Black SP1 P4-1
Manual Run (Input) 18 Red P1-8 P4-2
SEED METER
P2
SEED SENSOR
P3
MANUAL RUN
P4
VENDOR ID
REV / DATE
PART NUMBER
ROW IPN-J4
P1
(P1)
(P4)
(P2)
(SP1)
(P3)
