Model 4900M0290-01
Rev. 8/19 6-57
Lubrication and Maintenance

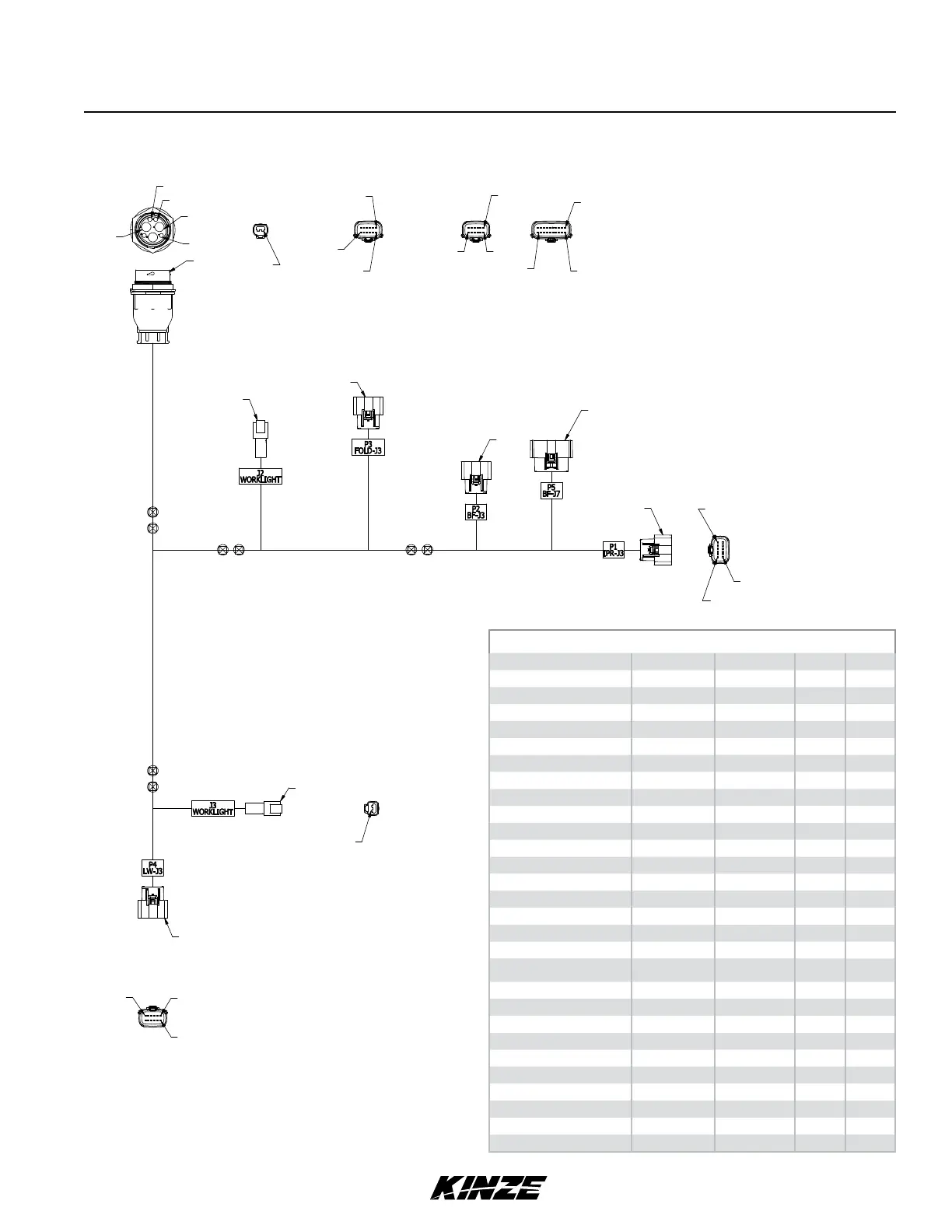

12V POWER HARNESS, TOOLBAR - 24 ROW
SP3
SP4
SP5
SP6
SP7
SP8
Pin 1
Pin 6
Pin 12
Pin 1
Pin 6
Pin 12
Pin 1
Pin 6
Pin 12
Pin 1
Pin 6
Pin 12
Pin 1
Pin 1
J2
P3
P2
P1
J3
P4
SP1
SP2
J1
Pin 1
Pin 2
Pin 4
Pin 7
Pin 3
P5
Pin 1
Pin 10
Pin 20
P/N A25195
Signal Wire Gauge Color FROM TO
12V Power + 6 Red J1-3 SP1
GND 6 Black J1-4 SP2
12V Power + 8 Red SP1 SP3
12V Power + 8 Red SP1 SP7
GND 8 Black SP2 SP4
GND 8 Black SP2 SP8
C.W. Light Pwr + 16 Red SP3 J2-2
12V Pwr + 10 Red SP3 SP5
C.W. Light Gnd 16 Black SP4 J2-1
Gnd 10 Black SP4 SP6
Fold IPN 12V Pwr + 16 Red SP5 P3-1
Fold IPN 12V Pwr + 16 Red SP5 P3-3
BF IPN 12V Pwr + 16 Red SP5 P2-1
BF IPN 12V Pwr + 16 Red SP5 P2-3
IPR 12V Pwr + 16 Red SP5 P1-1
Fold IPN Gnd 16 Black SP6 P3-2
Fold IPN Gnd 16 Black SP6 P3-4
BF IPN Gnd 16 Black SP6 P2-2
BF IPN Gnd 16 Black SP6 P2-4
IPR Gnd 16 Black SP6 P1-2
RW IPN 12V Pwr + 16 Red SP7 P4-1
RW IPN 12V Pwr + 16 Red SP7 P4-3
W.W. Light Pwr + 16 Red SP7 J3-2
RW IPN Gnd 16 Black SP8 P4-2
RW IPN Gnd 16 Black SP8 P4-4
W.W Light Gnd 16 Black SP8 J3-1
Drawbar Hitch + 16 Red/Blue J1-1 P5-3
Drawbar Hitch + 16 Blue/Red J1-2 P5-4
To Next Page
