Kinze 4900 - IPP Wing Harness - 12 Row, 16 Row, and 24 Row

TM
Model 4900M0290-01
Rev. 8/19 6-81
Lubrication and Maintenance

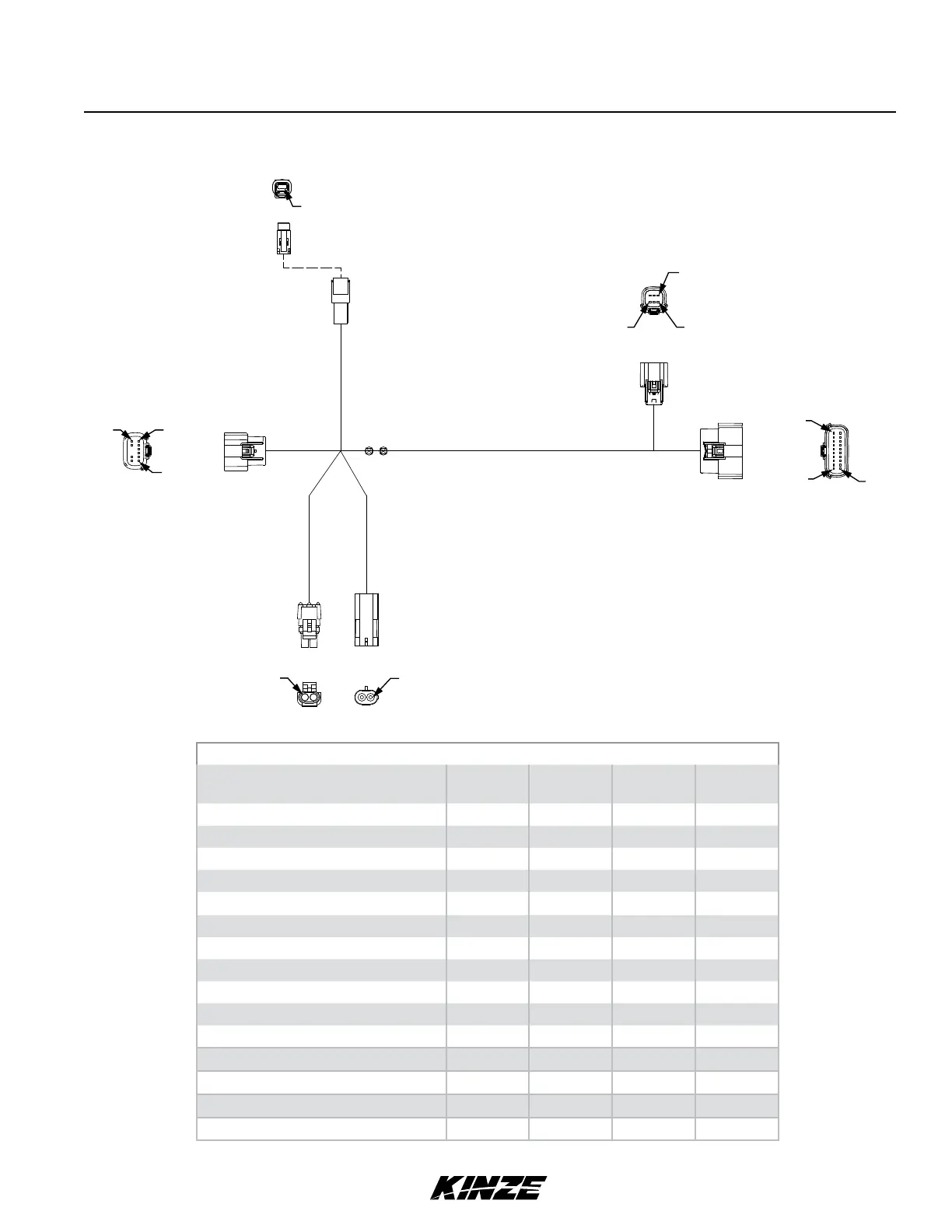

IPP WING HARNESS - 12 ROW, 16 ROW, AND 24 ROW
P/N A25711
Signal Wire
Gauge
Color From To
RS232 RX 18(TP-1) ORN P1-1 P3-1
RS232 TX 18(TP-1) BRN P1-2 P3-2
CAN HI 18(TP-2) YEL P2-1 SP1
CAN LO 18(TP-2) GRN P2-2 SP2
IPP Power 16 RED P2-3 P3-12
IPP Ground 16 BLK P2-4 P3-6
IPP Software Update 18 BLU P2-5 P3-11
CAN HI 18(TP-3) YEL SP1 P3-5
CAN LO 18(TP-3) GRN SP2 P3-4
CAN HI 18(TP-4) YEL SP1 P4-1
CAN LO 18(TP-4) GRN SP2 P4-2
Fertilizer Row Cut Off Valve (Power) 18 Red P1-3 P6-A
Fertilizer Row Cut Off Valve (Ground) 18 Black P1-4 P6-B
Fertilizer Flow Sensor (Power/Signal) 18 Red P1-13 P5-A
Fertilizer Flow Sensor (Ground) 18 Black P1-19 P5-B
Pin 20
Pin 1
Pin 6
Pin 3
Pin 1
Pin 1
P4
P3
Pin 6
Pin 1
Pin A
Pin A
P5P6
Pin 12
Pin 10
P1
P2
SP1
SP2
