Kinze 4900 - PDP Power Extension Harness, 30 - 12 Row, 16 Row, and 24 Row

TM
Model 4900M0290-01
Rev. 8/19 6-87
Lubrication and Maintenance
PDP POWER EXTENSION HARNESS, 30' - 12 ROW, 16 ROW, AND 24 ROW
P/N A25210

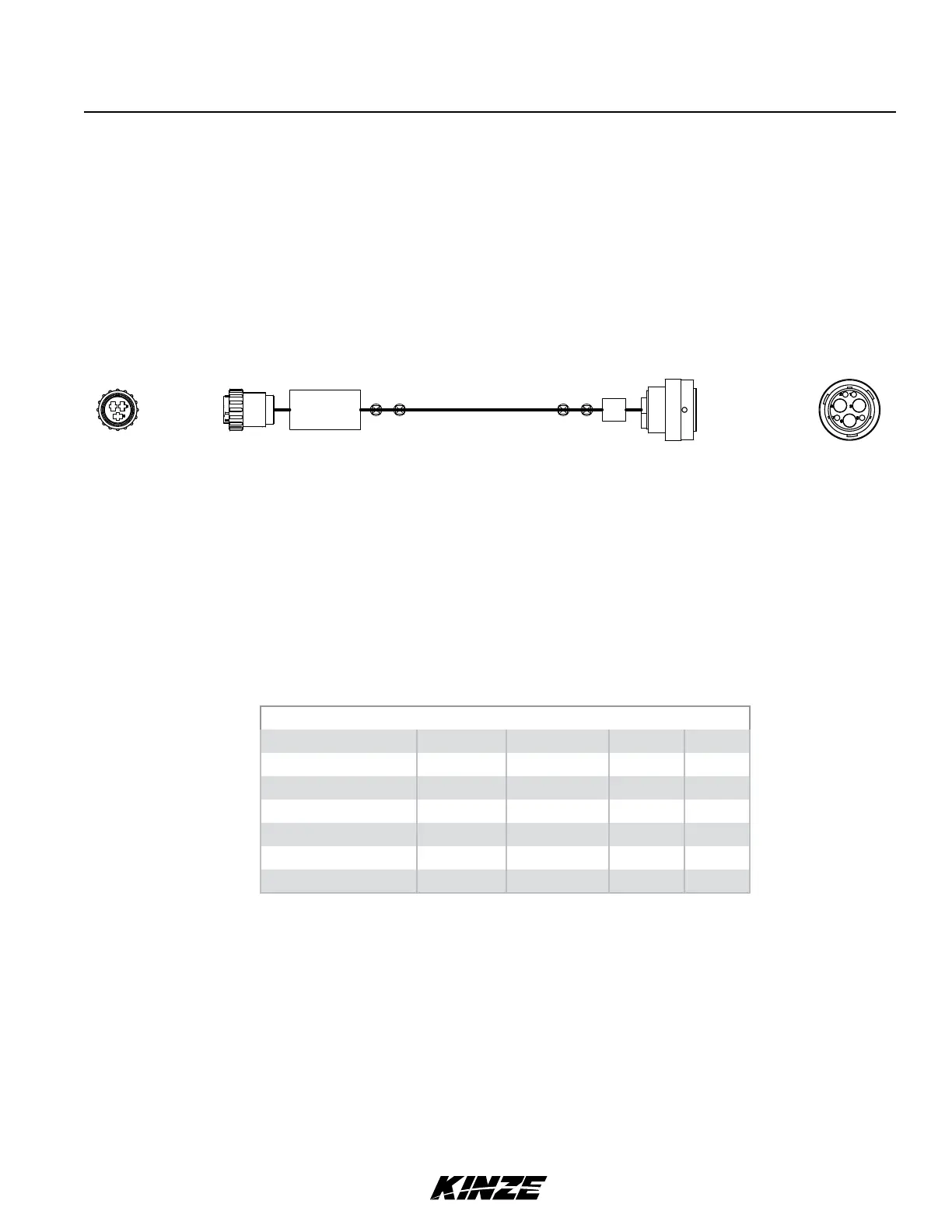

Signal Wire Gauge Color From To
PDP Power 10 RED P1-1 SP1
PDP Ground 10 BLK P1-3 SP2
PDP Power 8 RED SP1 SP3
PDP Ground 8 BLK SP2 SP4
PDP Power 4 RED SP3 P2-3
PDP Ground 4 BLK SP4 P2-4
PDP
P2
VENDOR ID
REV / DATE
PART NUMBER
P1 - PDP
(P1)
(SP2) (SP4)
(SP1) (SP3)
(P2)
