M0290-01Model 4900
2-2 Rev. 8/19
TM
Machine Operation

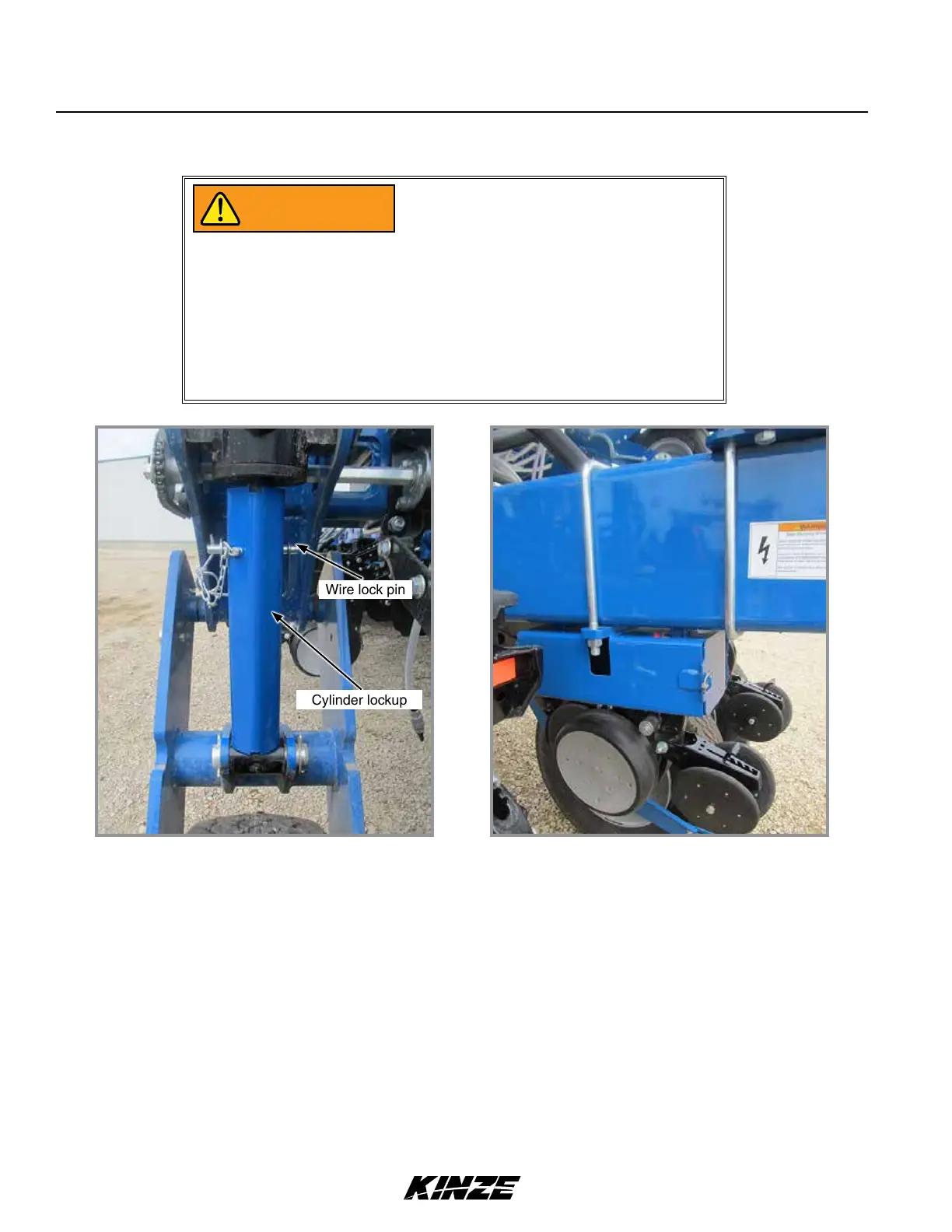

TRANSPORT AXLE CYLINDER SAFETY LOCKUP
Cylinder lockup storage tubeTransport axle cylinder lockup installed
Transport axle cylinder lockups are required on all four transport cylinders on planter when working on, storing, or
transporting planter.
Fully extend cylinder to raised position. Install transport axle cylinder lockups. Insert wire lock pin through holes on
cylinder lockup and secure.
Store transport axle cylinder lockups in cylinder lockup storage tube before operating planter.
Wire lock pin
Cylinder lockup
Transport axle can lower from transport
position without the use of any
controller, causing death, serious injury,
or damage to property and equipment.
Do not operate any hydraulic function
while transporting the planter. Make sure
all transport safety lockups are installed
on the four transport cylinders and all
SCV controls are in their neutral state
before transporting, storing and working
on the planter.
WARNING
