Kinze 4900 - Gauge Wheel Depth Adjustment

M0290-01Model 4900
4-6 Rev. 8/19
TM
Fertilizer
GAUGE WHEEL DEPTH ADJUSTMENT
Rotate the depth adjustment cam to adjust depth of fertilizer placement into the soil.
Pull out the handle and rotate the depth adjustment cam in 60° increments to achieve desired depths. There are six
depths available, with 2" (5 cm) as the shallowest option and 4" (10 cm) as the deepest from the ground surface. Refer
to the illustration and chart above.
NOTE: Depth gauge values are approximate and can vary greatly depending on actual field conditions and
adjusted position.

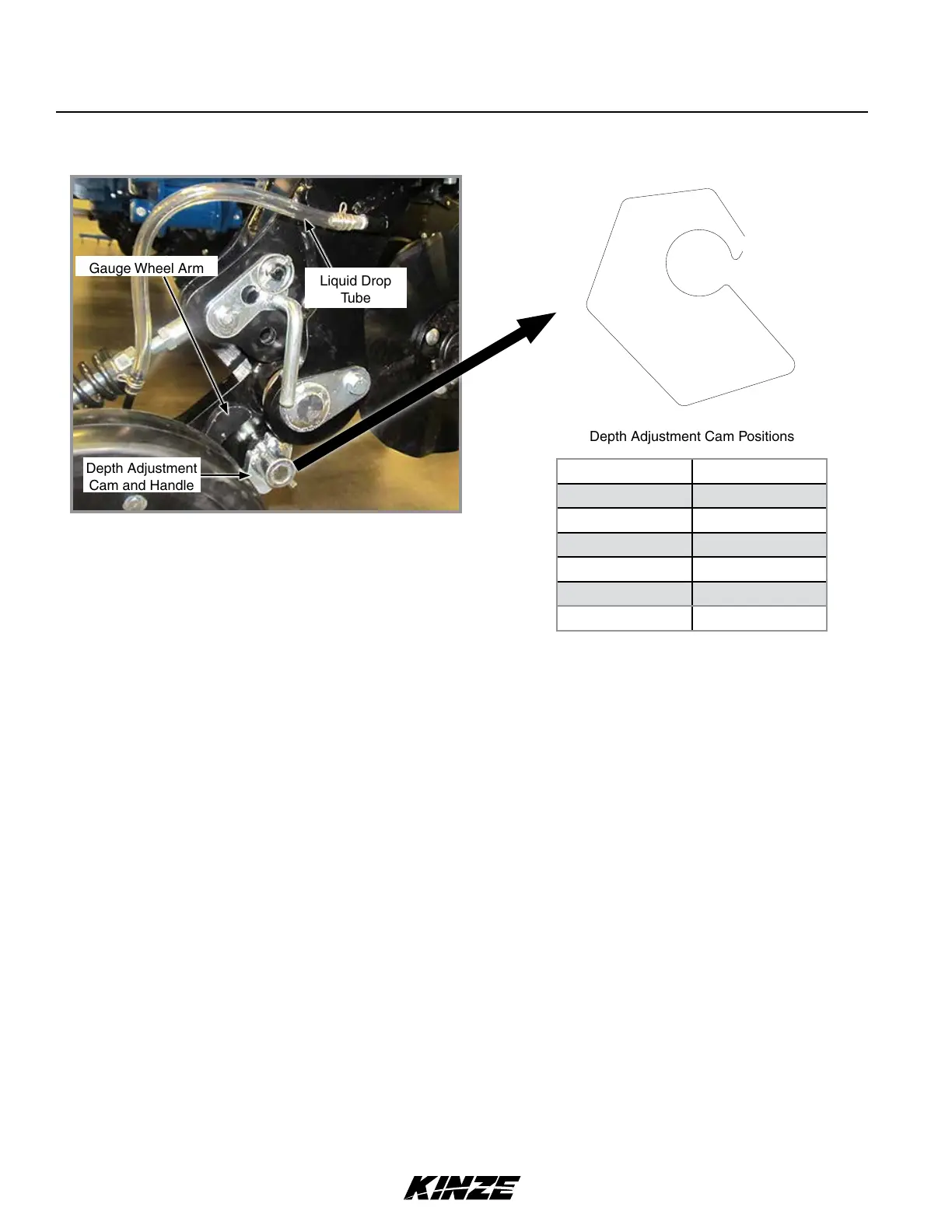

Depth Adjustment
Cam and Handle
Gauge Wheel Arm
1
2
3
4
5
6
Depth Adjustment Cam Positions
Cam Position Depth
1 2" (5 cm)
2 2.4" (6 cm)
3 2.8" (7.1 cm)
4 3.2" (8.1 cm)
5 3.6" (9.1 cm)
6 4" (10 cm)
Liquid Drop
Tube
