Kinze 4900 - PDP Power Extension Harness, 18 - 12 Row, 16 Row, and 24 Row

M0290-01Model 4900
6-86 Rev. 8/19
TM
Lubrication and Maintenance

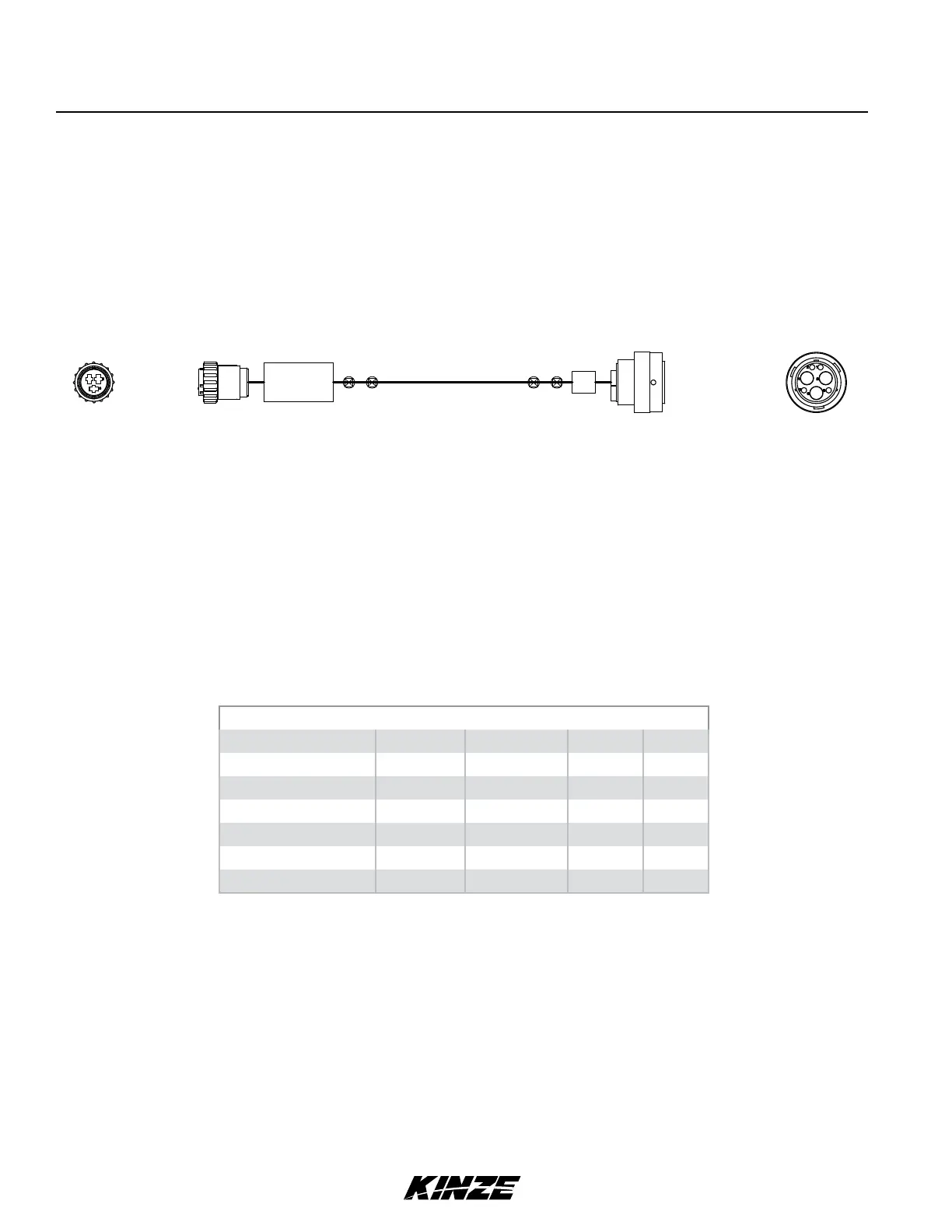

PDP POWER EXTENSION HARNESS, 18' - 12 ROW, 16 ROW, AND 24 ROW
P/N A25209
Signal Wire Gauge Color From To
PDP Power 10 RED P1-1 SP1
PDP Ground 10 BLK P1-3 SP2
PDP Power 8 RED SP1 SP3
PDP Ground 8 BLK SP2 SP4
PDP Power 4 RED SP3 P2-3
PDP Ground 4 BLK SP4 P2-4
PDP
P2
VENDOR ID
REV / DATE
PART NUMBER
P1
(J1)
(SP2)
(SP1)
(P1)
