Kinze 4900 - Product Control Module Cable - 12 Row, 16 Row, and 24 Row

To Next Page

To Previous Page

M0290-01Model 4900

6-42 Rev. 8/19

Lubrication and Maintenance

PCM

CAN

Signal PCM Wire/Color J1 J2 CAN RC CC IS G

Load Power 1 Red 2 - - - - - -

Load Power 2 Red 3 - - 1 - - -

Load Power 3 Red 4 - - - - - -

Load Power 4 Red 5 - - - - 1 -

Load Ground 5 Black - - - - - - 1, 2

Load Ground 6 Black 14, 15 - - - - - -

Load Ground 7 Black 16 - - 2 - - -

Load Ground 8 Black 17 - - - - - -

ECU Power 11 White/Red 11 - - - - - -

CAN H - Twisted Pair Yellow 34 - 1 - - - -

CAN L - Twisted Pair Green 33 - 2 - - - -

Switch In - Red/Green 10 - - - - 2 -

Section 1 - White 24 - - - 1 - -

Section 2 - Green 25 - - - 2 - -

Section 3 - Orange 26 - - - 3 - -

Section 4 - Blue 27 - - - 4 - -

Section 5 - Brown - 11 - - 5 - -

Section 6 - Yellow - 10 - - 6 - -

Section 7 - Violet - 9 - - 7 - -

Section 8 - Gray - 8 - - 8 - -

Section 9 - Pink - 7 - - 9 - -

Section 10 - Ta n - 6 - - 10 - -

Section 11 - Red/Green - 5 - - 11 - -

Section 12 - Black/Red - 4 - - 12 - -

PWM 1 Power - Red/White - 23 - 3 - - -

PWM 1 Ground - Black/White 35 - - 4 - - -

PWM 2 Power - Red/Yellow - 12 - 5 - - -

PWM 2 Ground - Black/Yellow 12 - - 6 - - -

PWM 3 Power - Red/Blue 1 - - 7 - - -

PWM 3 Ground - Black/Blue - 24 - 8 - - -

Meter Speed 1 - Green 30 - - 9 - - -

Meter Speed 2 - Green/White 29 - - 10 - - -

Meter Speed 3 - Green/Red - 33 - 11 - - -

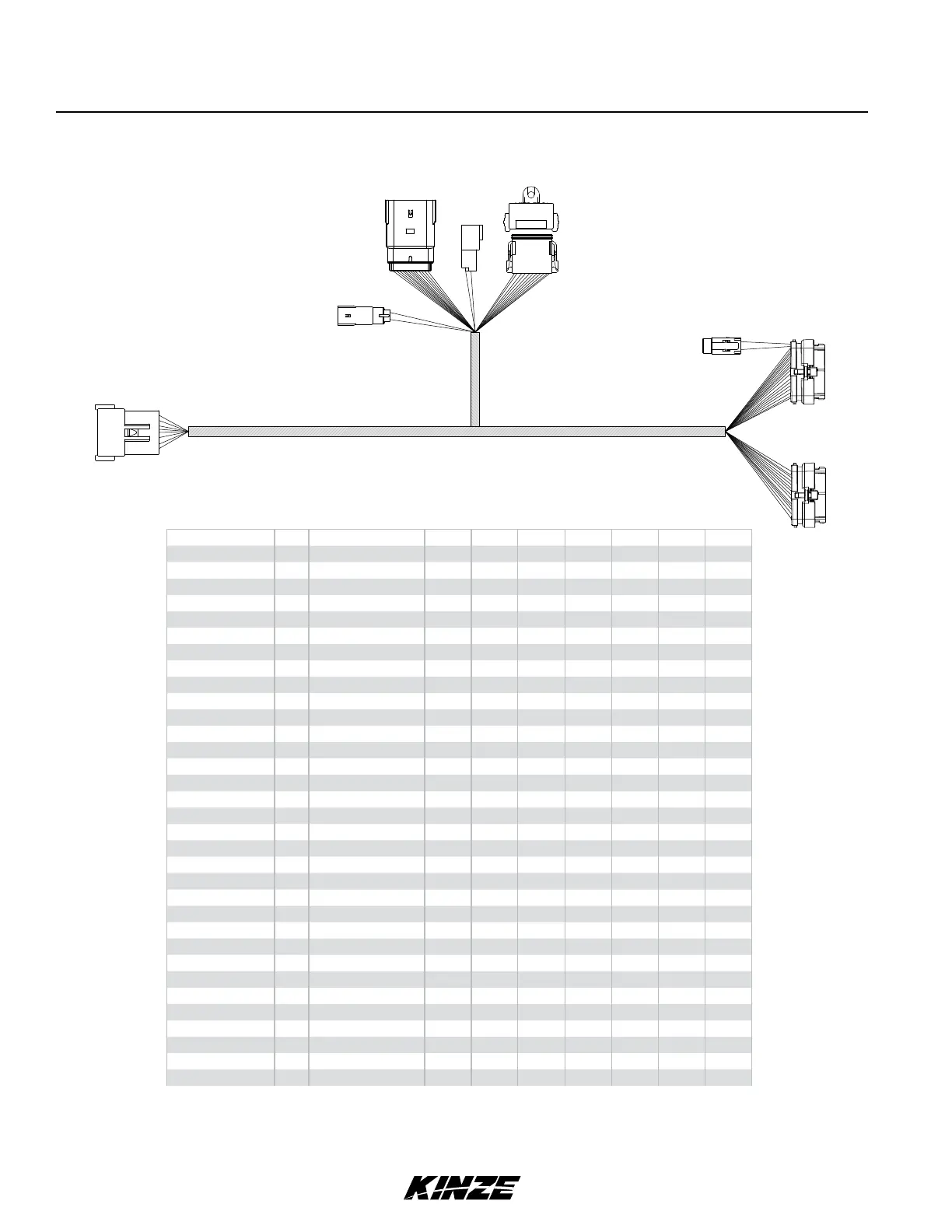

PRODUCT CONTROL MODULE CABLE - 12 ROW, 16 ROW, AND 24 ROW
