TM
Model 4900M0290-01
Rev. 8/19 2-29
Machine Operation

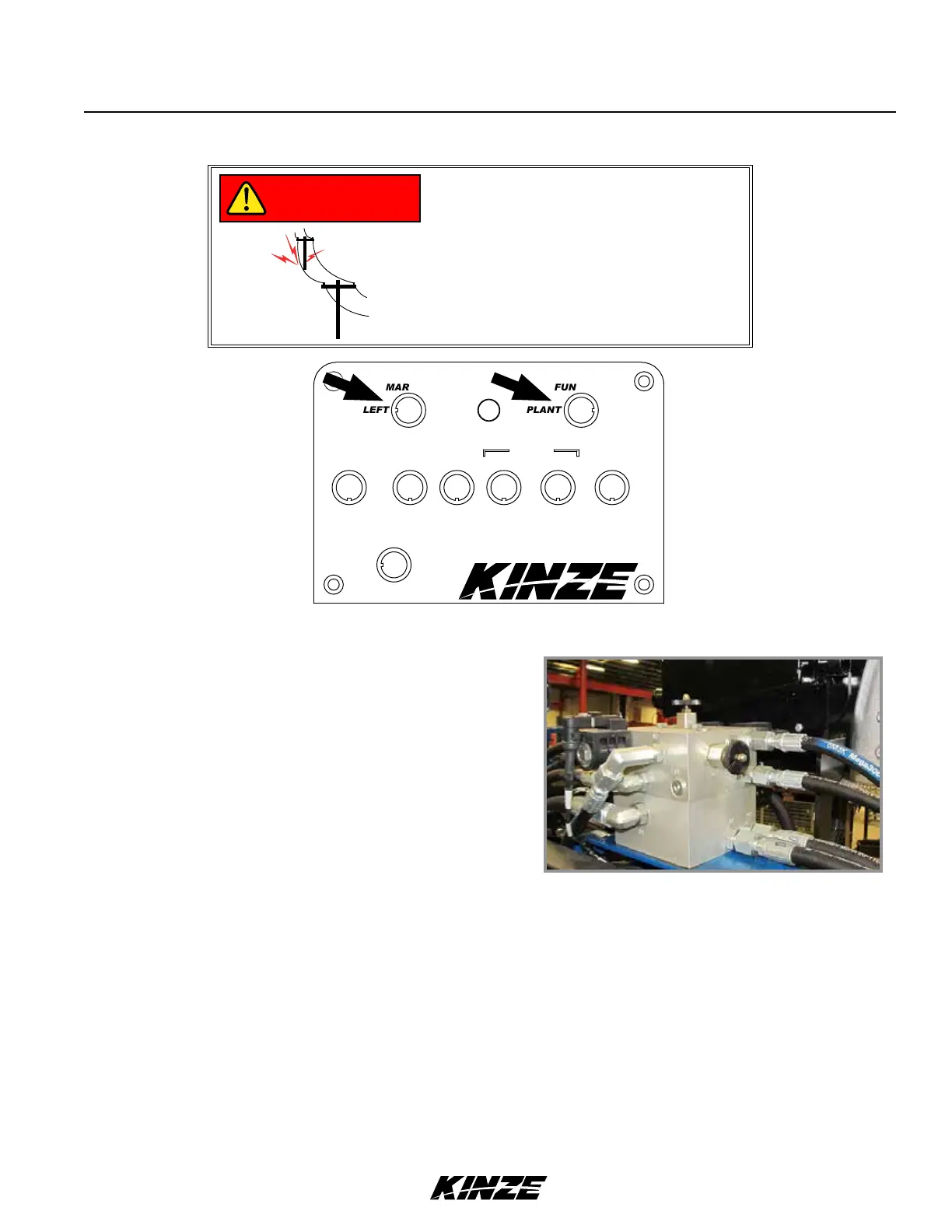

ROW MARKER OPERATION USING CONTROL BOX
Control Box
FUNCTION
FOLDPLANT
OFF
HITCH
FOLD
OFF
AXLE
WING
WHEELS
DP INCR L INCR
VACUUM
R INCR
DP DECR L DECR
R DECR
WORK
LIGHTS
BF
ONLY
OFF
MARKERS
OFF
RIGHTLEFT
OFF
RIGHT
LEFT
POINT ROW
TM
Contacting or coming close to power
lines or other high energy sources will
cause death or serious injury.
Keep away from power lines or high
energy sources at all times.
DANGER
Two solenoid valves on valve block at rear L.H. side of center
frame, and a three position selector switch on control console
permit operator to lower or raise desired row marker.
NOTE: See row marker adjustments on following pages.
If the planter is equipped with Blue Drive refer to M0288 -
Kinze Blue Vantage Operator’s Manual for marker control.
1. Place FUNCTION switch in PLANT position.
2. Place MARKERS switch in LEFT or RIGHT position.
3. Toggle switch to other side to operate opposite row marker.
4. Raise row marker at end of field.
5. After turn, lower the pre-selected row marker.
6. Continue to follow this procedure.
NOTE: Both row markers can be lowered by operating switch in each position and hydraulic control twice.
Row markers raise simultaneously with hydraulic control in raise position.
If electrical system does not operate properly:
• Check fuse.
• Check wiring connections.
• Check control switch.
• Check solenoid. SOLENOID HOUSING IS MAGNETIZED WHEN ENERGIZED.
Row Marker Solenoid Valves
To Next Page
