Machine Operation
1. If equipped with row markers, remove lockups from storage and installation marker cylinder rods.

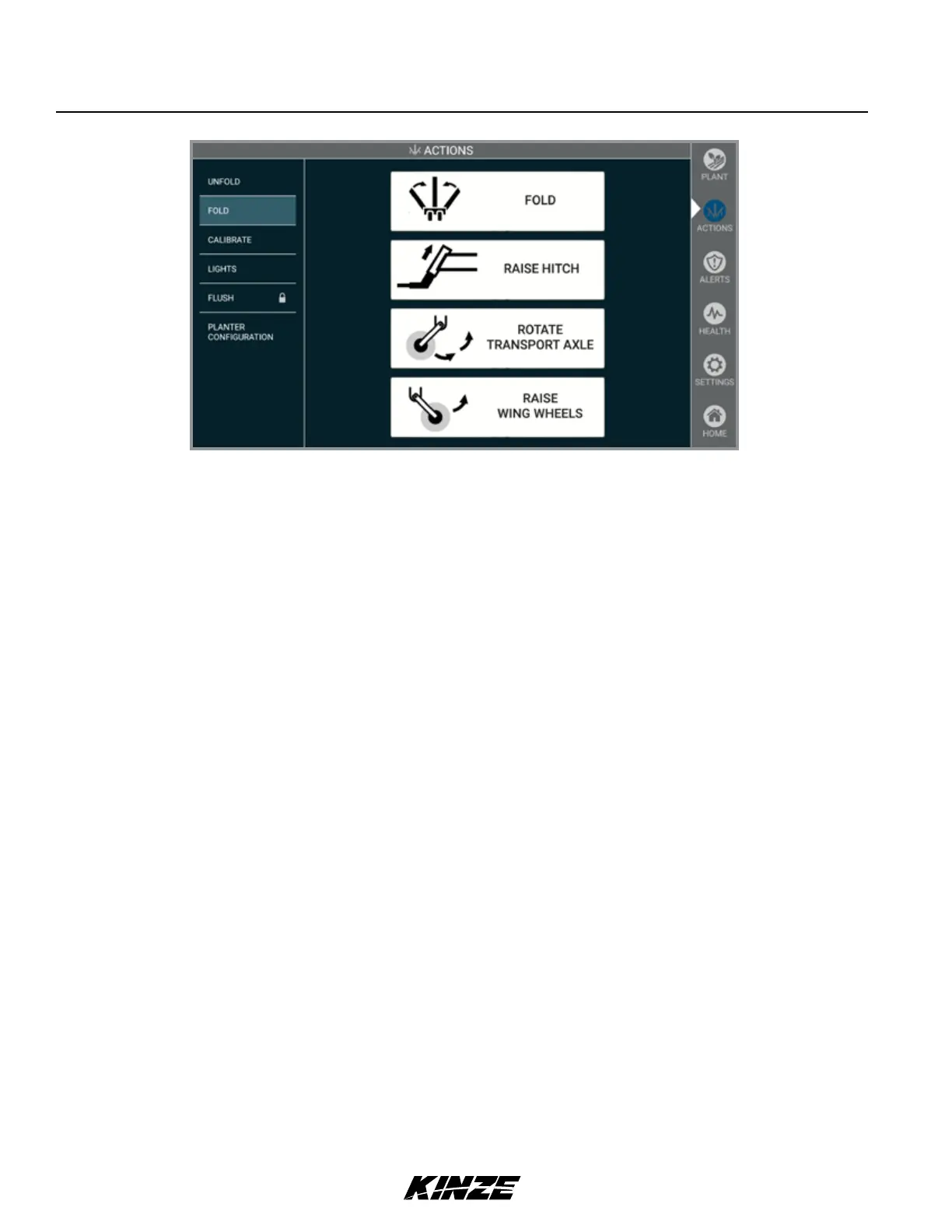

2. Navigate to “ACTIONS”, then select “FOLD”.
3. Place planter into field turnaround position.
4. Press and hold “RAISE HITCH” (If equipped). Operate proper hydraulic tractor control to raise drawbar to
level planter frame.
5. Press and hold “FOLD”. Operate proper hydraulic tractor control until 2 hooks are over the top of the
inner hitch.
Note: If tractor assist is needed place tractor in forward and slowly move forward when unfolding
to prevent damage to wheel arm.
6. Lift drawbar hitch to lock wings into place after folding.
7. Press and hold “ROTATE TRANSPORT AXLE” button. Operate proper hydraulic tractor control to raise
transport axle to either transport height.
8. Press and hold “RAISE WING WHEELS”. Operate proper hydraulic tractor control to raise wing wheels
into transport position.
9. Install locking pin on drawbar (if equipped).
10. Install lockups.
