Model 4900M0290-01
Rev. 8/19 4-7
Fertilizer
DOWN FORCE SETTINGS
The spring has been factory pre-set at 8.5" (21 cm) but can be adjusted from 8" - 9" (20 - 23 cm) as desired to fit soil
conditions.
Position 2 is ideal for conventional tillage and softer soil conditions. Position 3 is used for no-till and harder soil
conditions. Refer to the chart above to adjust for specific conditions.
In positions 1 and 2, coulter height can be further adjusted manually if needed by loosening the main bolt jam nut and
the main bolt, up to 10 turns or 1" (2.5 cm) length.
NOTE: Approximately ¼" of bolt length adjustment provides nearly 1" (2.5 cm) of coulter height change.
Down Force Settings
9" (23 cm) 8.5" (21 cm) 8" (20 cm)
Position 1
(Stowed)
N/A N/A N/A
Position 2
(Softer Soil
Conditions)
110 - 160
lbs
150 - 210
lbs
200 - 250
lbs
Position 3
(Harder
Soil Condi-
tions)
180 - 240
lbs
250 - 285
lbs
290 - 350
lbs

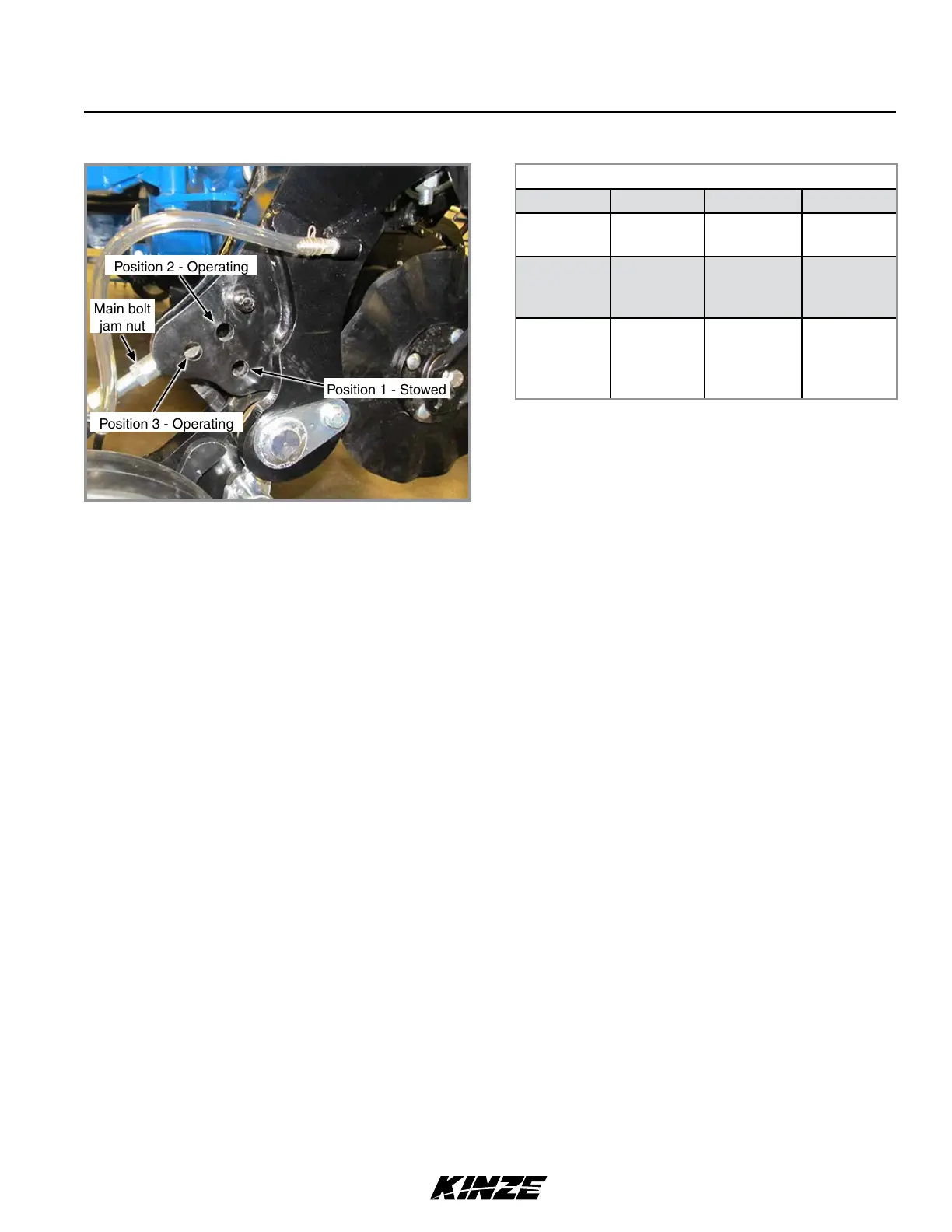

Position 1 - Stowed
Position 2 - Operating
Position 3 - Operating
Main bolt
jam nut
NOTE: Maximum disc blade depth is 4" (10 cm).
