Kinze 4900 - Row Unit Power Extension Harness - 12 Row, 16 Row, and 24 Row

M0290-01Model 4900
6-66 Rev. 8/19
TM
Lubrication and Maintenance

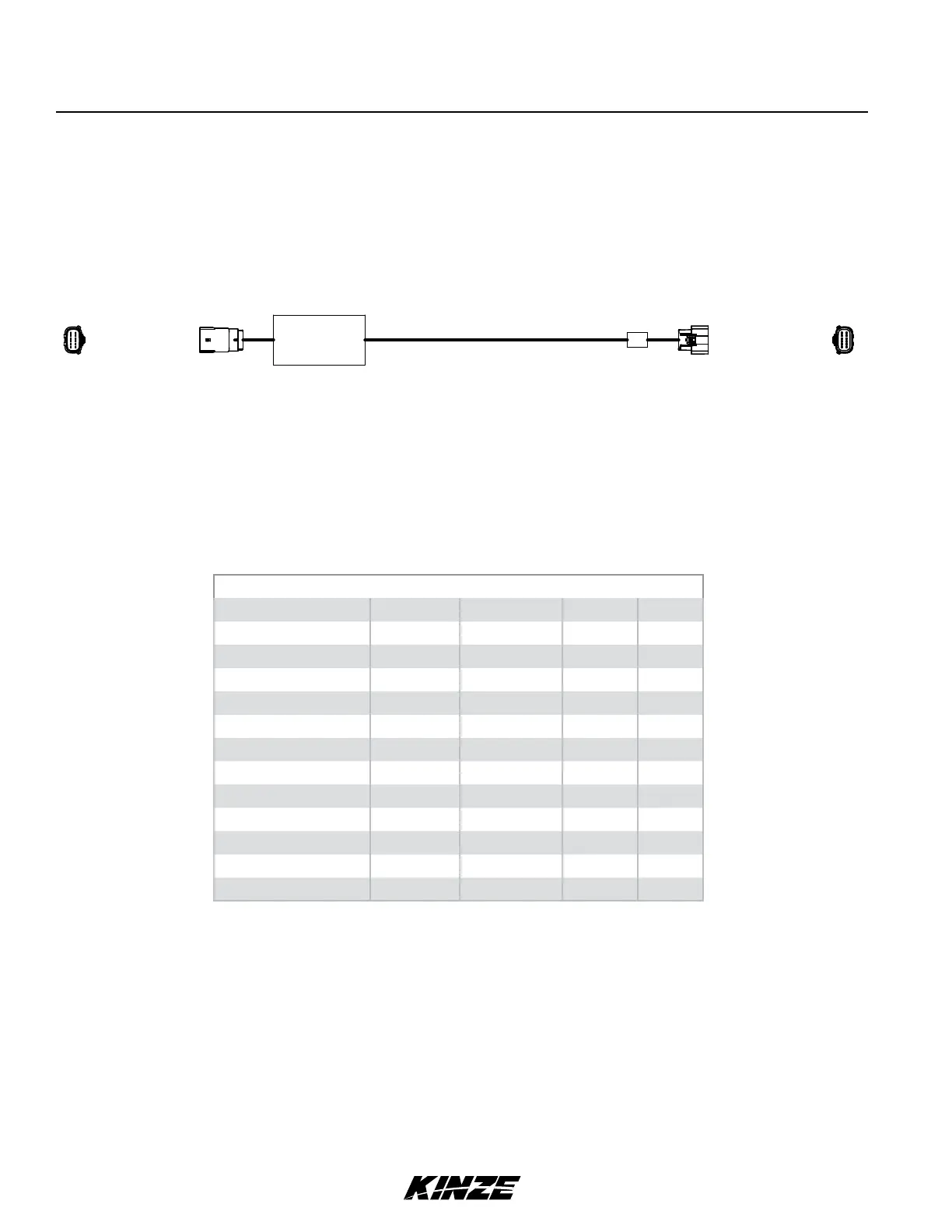

ROW UNIT POWER EXTENSION HARNESS - 12 ROW, 16 ROW, AND 24 ROW
P1
VENDOR ID
REV / DATE
PART NUMBER
J1
P/N A25029
Signal Wire Gauge Color FROM TO
Power 16 Red J1-1 P1-1
Ground 16 Black J1-2 P1-2
Power 16 Red J1-3 P1-3
Ground 16 Black J1-4 P1-4
Strapping 20 Yellow J1-5 P1-5
Strapping 20 Orange J1-6 P1-6
Strapping 20 White J1-7 P1-7
Strapping 20 Green J1-8 P1-8
Strapping 20 Blue J1-9 P1-9
Strapping 20 Violet J1-10 P1-10
Strapping 20 Blue/Red J1-11 P1-11
Strapping 20 Brown J1-12 P1-12
(P1)(J1)
