Kinze 4900 - Bulk Fill Scale Harness - 12 Row, 16 Row, and 24 Row

M0290-01Model 4900
6-68 Rev. 8/19
TM
Lubrication and Maintenance

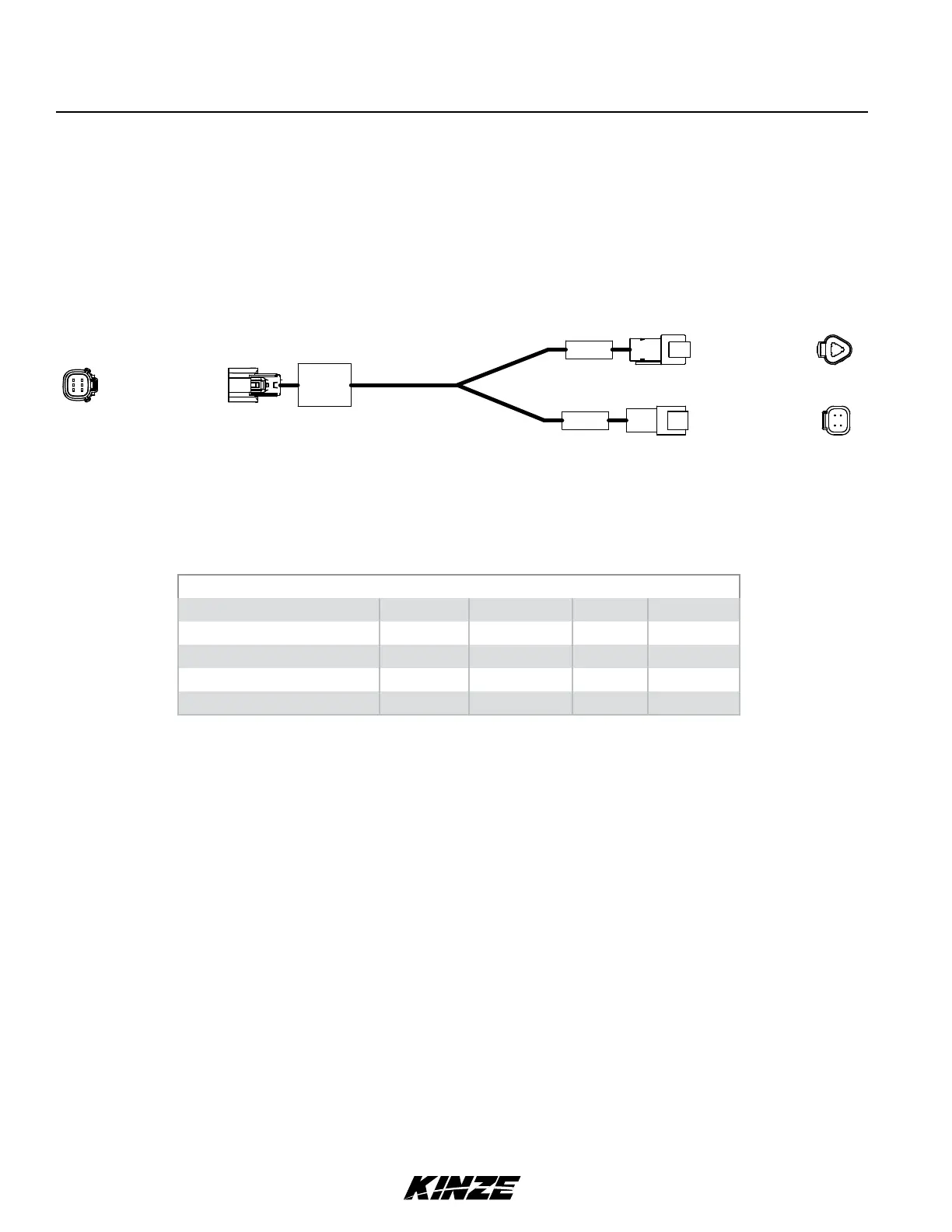

BULK FILL SCALE HARNESS - 12 ROW, 16 ROW, AND 24 ROW
P/N A25218
Signal Wire Gauge Color From To
Bulk Fill Scale (CAN H) 18 (TP) Yellow J1-1 P1-1
Bulk Fill Scale (CAN H) 18 (TP) Green J1-2 P1-2
Bulk Fill Scale Head (PWR+) 18 Red J1-3 P1-3
Bulk Fill Scale Head (PWR-) 18 Black J1-4 P1-4
SCALE PWR
J1
SCALE COM
J2
VENDOR ID
REV / DATE
PART NUMBER
BF-J6
P1
(P1)
(J1)
(J2)
