Model 4900M0290-01
Rev. 8/19 2-7
Machine Operation
TRACTOR REQUIREMENTS
VACUUM METER TRACTOR MOUNTED PTO PUMP AND PLANTER MOUNTED HYDRAULICS
Consult your dealer for information on horsepower requirements and tractor compatibility. Requirements vary with planter
options, tillage, and terrain.
Three dual remote hydraulic outlets (SCV) are required on all sizes of conventional planters equipped with row markers.
Four dual remote hydraulic outlets (SCV) are required on all sizes of bulk fill planters equipped with row markers. A 12
volt DC electrical system is required on all sizes.
Six dual remote hydraulic outlets (SCV) are required on all sizes of planters equipped with vacuum meters but without
PTO pump.

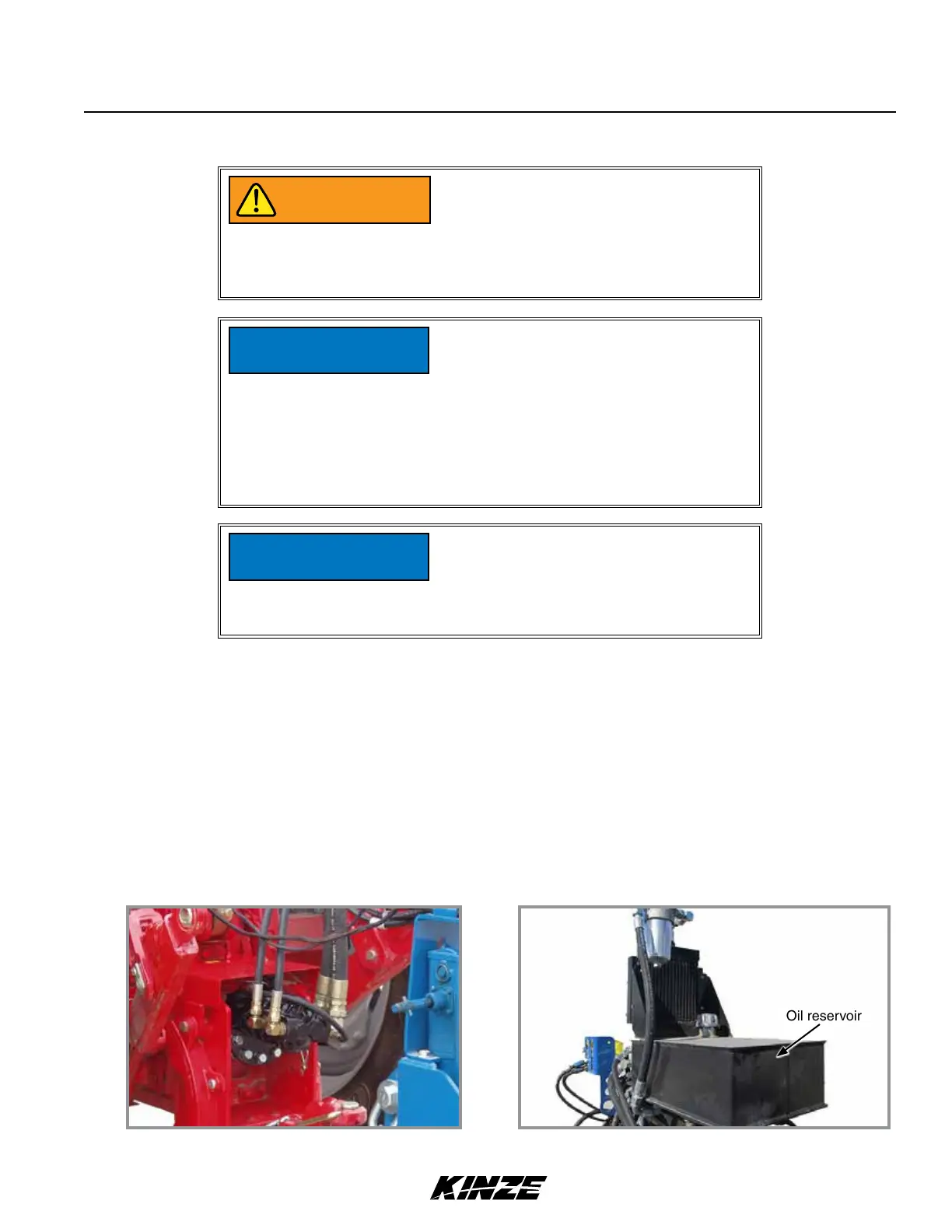

Two-section PTO Hydraulic Pump 8 gal (30.3 L) Reservoir
Oil reservoir
Loss of control of equipment during
transport can result in death, serious
injury, or damage to property and
equipment. Tractor gross weight must be
greater than planter gross weight with
attachments and options.
WARNING
Connect hydraulic motor case drain to
a case drain return line with zero PSI
on tractor. Failure to connect to a return
with zero PSI will cause hydraulic motor
shaft seal damage. DO NOT connect
hydraulic motor case drain to a SCV
outlet or motor return circuit connection.
Contact tractor manufacturer for specific
details on “zero pressure return”.
NOTICE
All Hydraulic Requirements: Minimum
Pressure 2350 PSI (16202.6 kPa); Maximum
Pressure 3000 PSI (20684.2 kPa). Check
tractor hydraulics to ensure that maximum
pressure cannot be exceeded.
NOTICE
