M0290-01Model 4900
2-6 Rev. 8/19
TM
Machine Operation
1. Torque transport wheel ¾"- 16 lug nuts to 200 ft-lb (244 N-m).
2. Inflate tires to the following specifications:
• Wing - 12R and 16R: 7.5” x 20” - 40 psi (275.7 kPa), 24R: 11 - 22.5 - 90 psi (620.5 kPa)
• Transport - 12R: 255-70R, 22.5 - 100 psi (689.4 kPa), 16R and 24R: 11 - 22.5 - 90 psi (620.5kPa)
• Contact drive - 4.80” x 8” - 50 psi (344.7 kPa)
• Row marker - 16” x 6.5” x 8” - 14 psi (96.5 kPa)
3. Lubricate planter and row units per lubrication information in this manual.
4. Check all drive chains for proper tension, alignment, and lubrication.

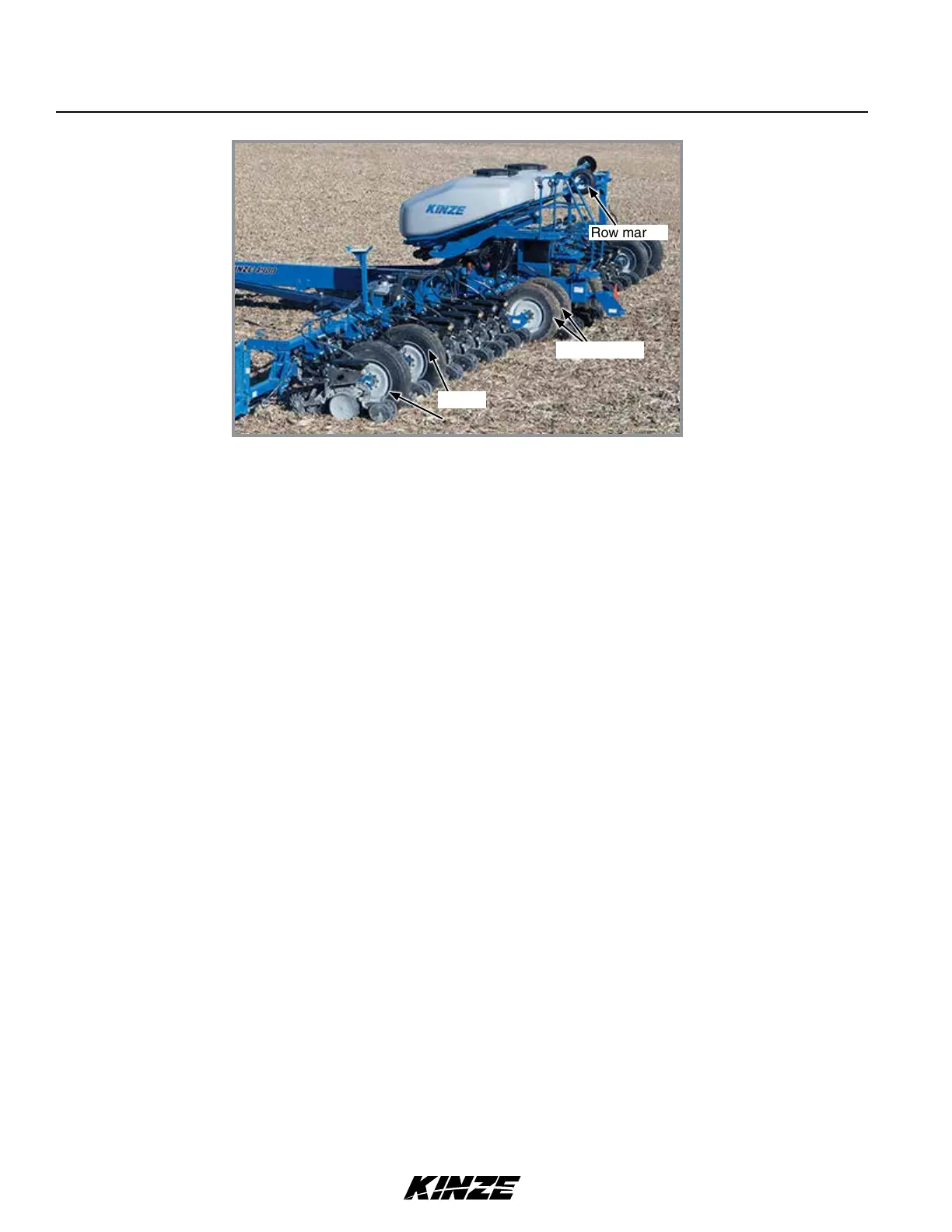

Tire locations (L.H. shown)
Row marker
Wing
Transport
