Model 4900M0290-01
Rev. 8/19 3-3
Row Unit Operation
Seed hoppers have a capacity option of 1.9 or 3.0 bushels.
NOTE: Planters with the insecticide option are required to
use only the 1.9 bushel hoppers.
Use clean seed and make certain there are no foreign objects
inside when filling seed hopper. Replace hopper lids after
hoppers are filled to prevent accumulation of dust or dirt
in seed meter which can cause premature wear.
Periodically empty hoppers completely to remove any foreign
objects and to ensure proper seed meter operation.

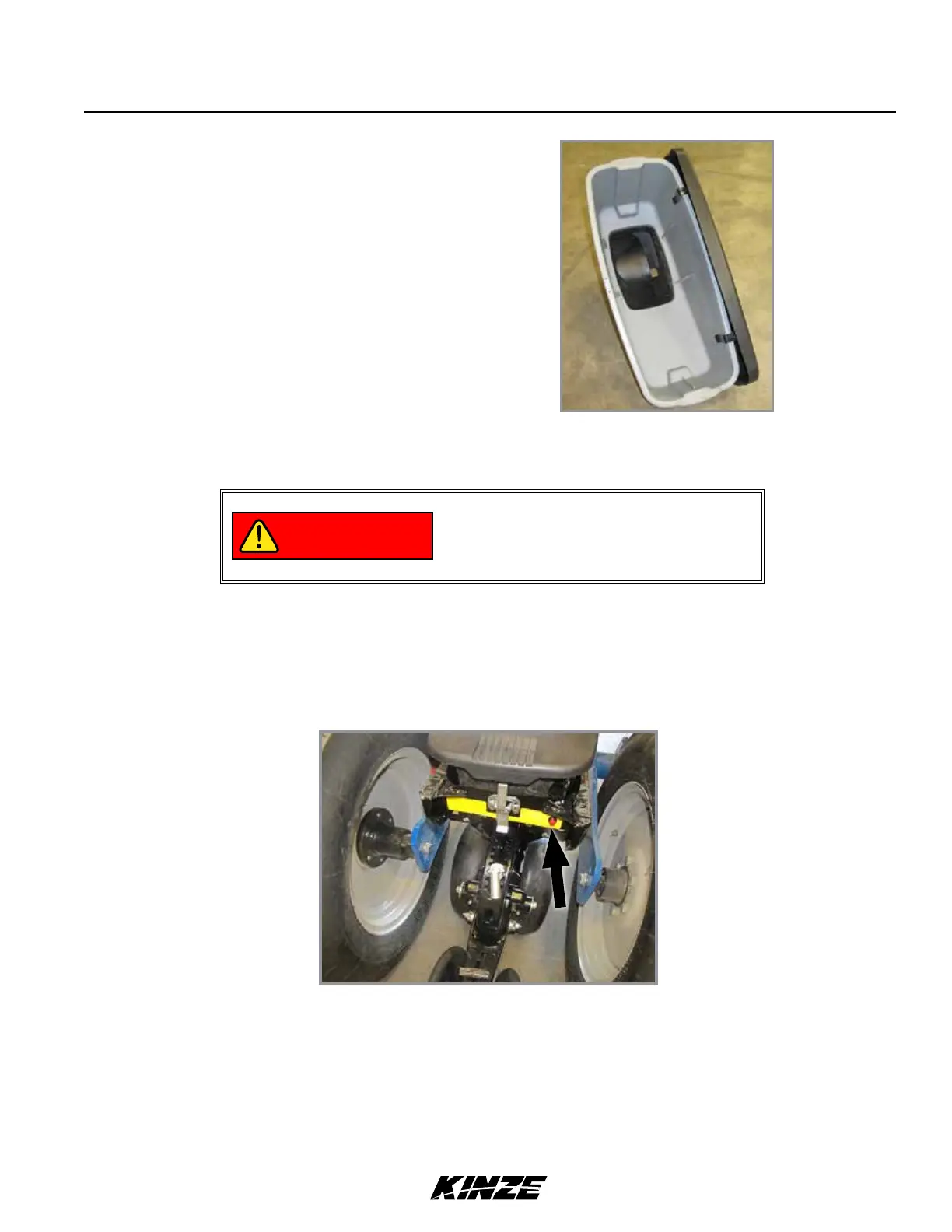

SEED HOPPERS
Seed Hopper
Disengage hopper latch and lift hopper off hopper support. Disconnect vacuum meter and drive connections.
MANUAL RUN BUTTON (BLUE DRIVE)
Use the manual run button to turn on the seed meter on each row unit to check functionality.
Seed hopper is retained by an over-
center latch. Wear gloves to prevent
injury to hands while releasing the latch.
DANGER
