Kinze 4900 - 24 V Power Harness (Rows 7-12), 12 Row

TM
Model 4900M0290-01
Rev. 8/19 6-59
Lubrication and Maintenance

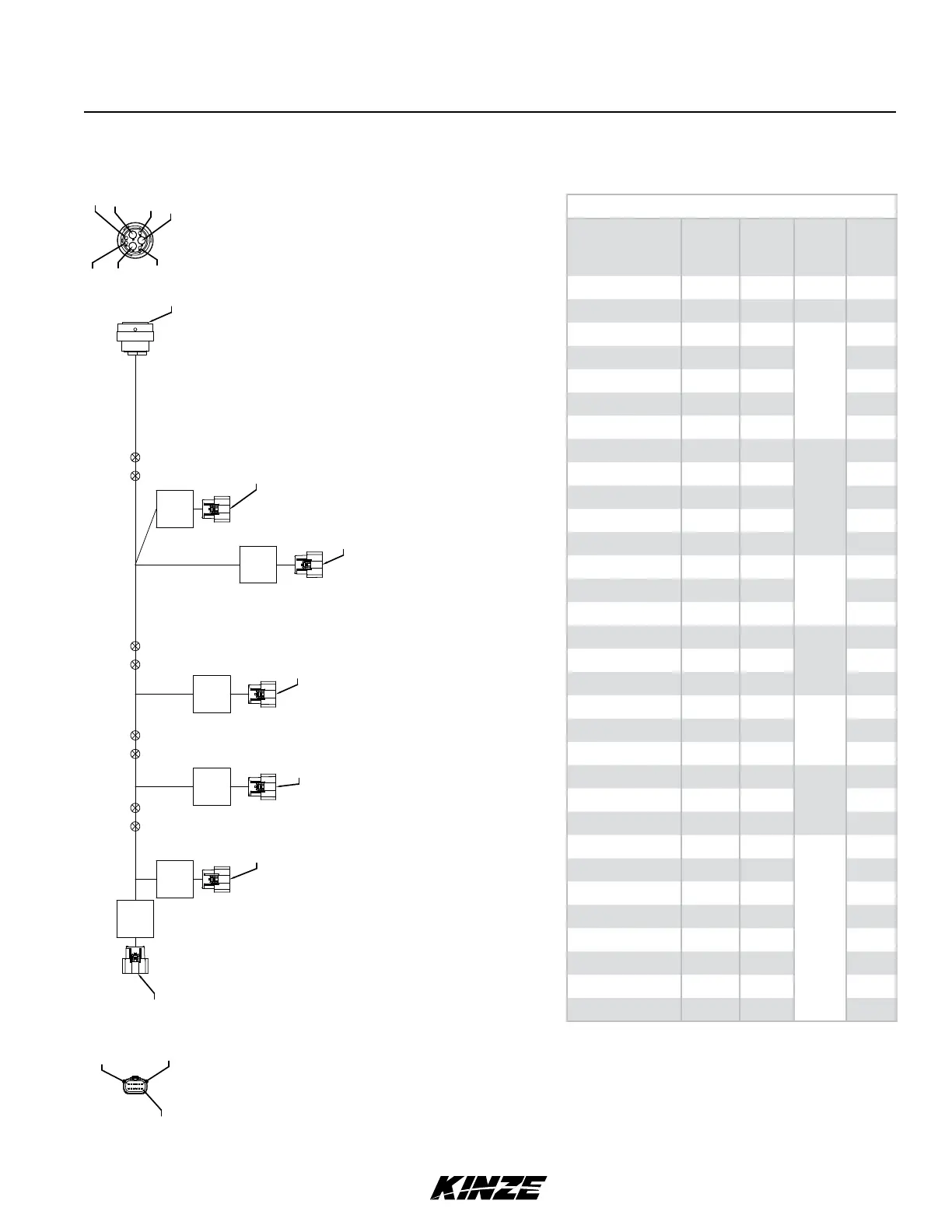

24V POWER HARNESS (ROWS 7-12), 12 ROW
P1
POWER
ROW 7
P3
POWER
ROW 9
P4
POWER
ROW 10
P5
POWER
ROW 11
P6
POWER
ROW 12
SP1
SP2
SP5
SP6
SP3
SP4
SP7 SP8
P2
POWER
ROW 8
6 PL
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 1
Pin 6
Pin 12
P1
P2
P3
P4
P5
P6
J1
P/N A25935
Function
Wire
Gauge
Color From To
Power 6 Red J1-6 SP1
Ground 6 Black J1-4 SP2
Power 16 Red
SP1
SP3
RU 7 (Power) 16 Red SP5
RU 8 (Power) 16 Red SP4
RU 7 (Power) 16 Red SP6
RU8 (Power) 16 Red P6-1
Ground 16 Black
SP2
P6-3
RU 7 (Ground) 16 Black P5-1
RU 8 (Ground) 16 Black P5-3
RU 7 (Ground) 16 Black P6-2
RU 8 (Ground) 16 Black P6-4
Power 16 Red
SP3
P5-2
RU 9 (Power) 16 Red P5-4
RU 9 (Power) 16 Red SP7
Ground 16 Black
SP4
P4-1
RU 9 (Ground) 16 Black P4-3
RU 9 (Ground) 16 Black SP8
Power 16 Red
SP5
P4-2
RU 10 (Power) 16 Red P4-4
RU 10 (Power) 16 Red SP9
Ground 16 Black
SP6
P3-1
RU 10 (Ground) 16 Black P3-3
RU 10 (Ground 16 Black SP10
RU 11 (Power) 16 Red
SP7
P3-2
RU 11 (Power) 16 Red P3-4
RU 12 (Power) 16 Red P2-1
RU 12 (Power) 16 Red P2-3
RU 11 (Ground) 16 Black
SP8
P1-1
RU 11 (Ground) 16 Black P1-3
RU 12 (Ground) 16 Black P2-2
RU 12 (Ground) 16 Black P2-4
