Machine Operation
1. Remove lockups.

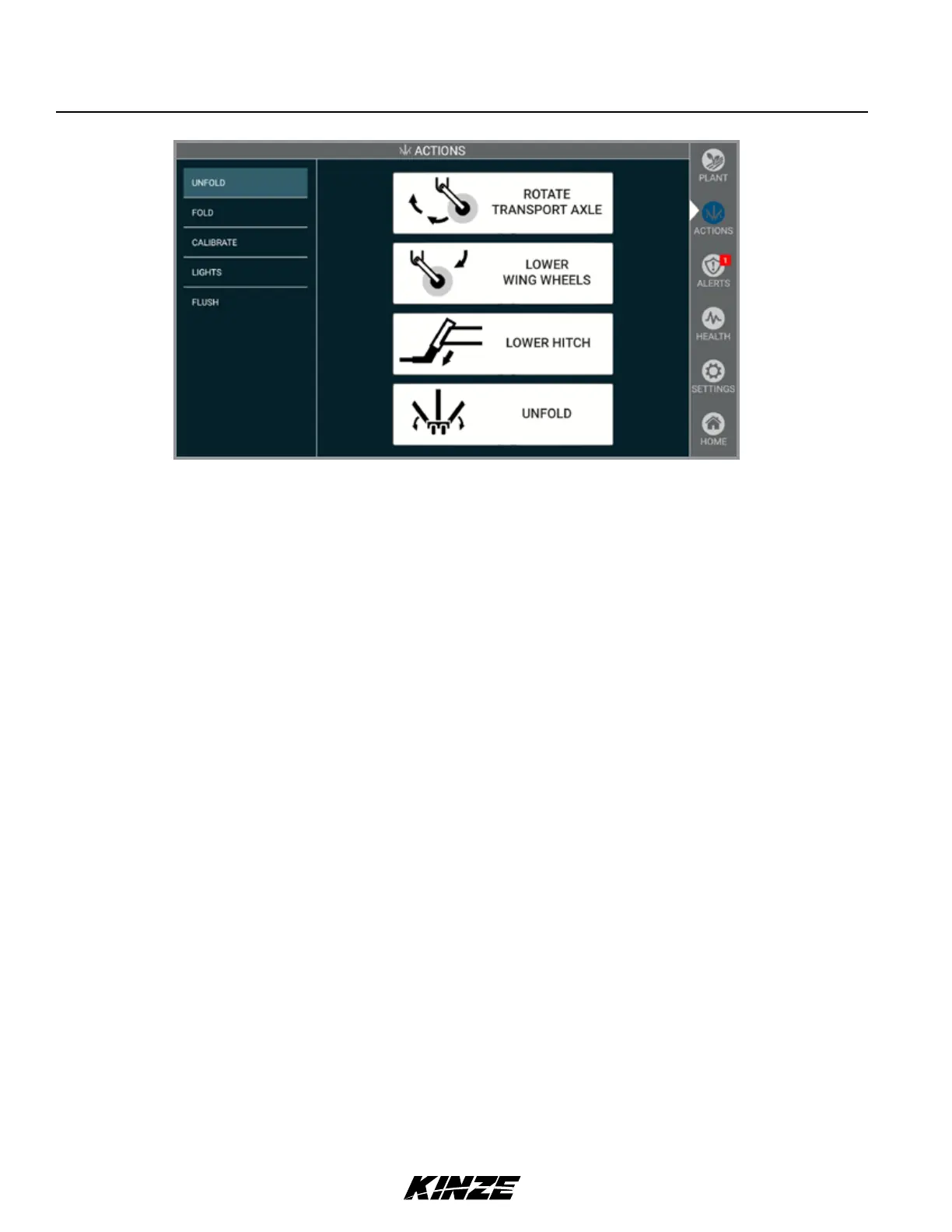

2. Navigate to Actions, then select “UNFOLD”.
3. Press and hold “ROTATE TRANSPORT AXLE”. Operate proper hydraulic tractor control to lower
transport axle to field turnaround position.
4. Press and hold “LOWER WING WHEELS”. Operate proper hydraulic tractor control to lower wing wheels
into field turnaround position.
5. Press and hold “LOWER HITCH”. Operate proper hydraulic tractor control to unhook the wings.
6. Press and hold “UNFOLD”. Operate proper hydraulic tractor control to move wing out, away from tractor.
Planter is completely unfolded when stub wings are latched into the H-frame.
Note: Place tractor in reverse and slowly reverse when unfolding to prevent damage to wheel arm.
7. Lower planter and hold hydraulic lever for an additional 30 seconds to rephase lift cylinders.
8. If equipped with row markers, remove lockups and place in storage position.
9. Lower hitch to level machine during planting.
