Kinze 4900 - Page 71

TM
Model 4900M0290-01
Rev. 8/19 3-9
Row Unit Operation
Connect tractor power harness terminal E1 to positive battery terminal. Connect terminal E2 to negative battery
terminal. Connect console harness P4 to display C1, and console harness P5 to display C2. Connect console
harness P3 to the speaker box. Connect console harness P1 to tractor power harness J2. Connect the intermediate
harness P1 to the tractor power harness J1.

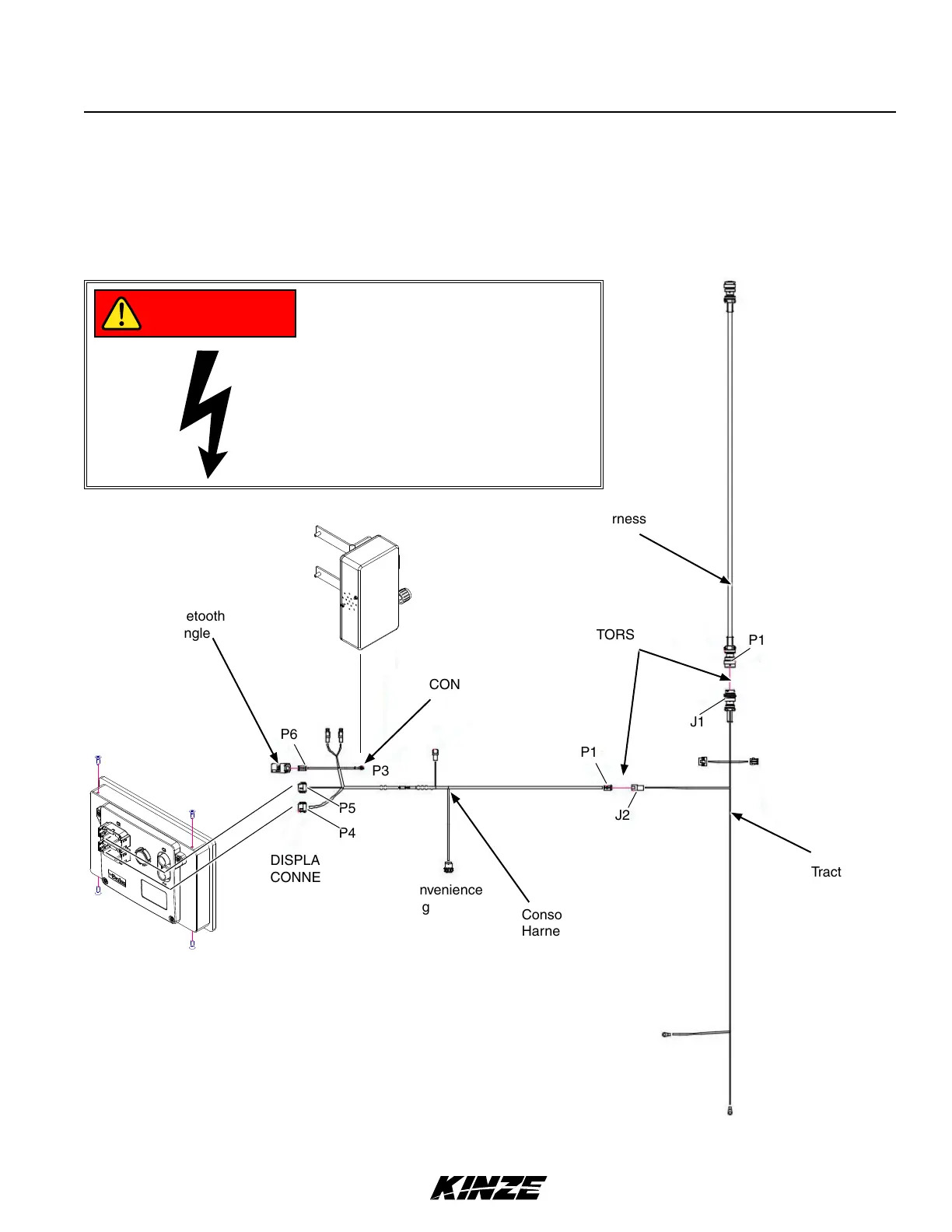

TRUE DEPTH AND HARNESS INSTALLATION
Bluetooth
Dongle
Intermediate
Harness
Planter
Connector
Tractor
Power
Harness
Console
Harness
Convenience
Plug
P6
P3
C2
C1
P5
P4
P1
E1
E2
P1
J1
J2
DISPLAY
CONNECTORS
BATTERY
CONNECTORS
SPEAKER
CONNECTOR
HARNESS
CONNECTORS
True Depth Harness Installation
ELECTRICAL SHOCK HAZARD
Disconnect (unplug) power before
installing, inspecting, or servicing the
unit.
DANGER
