TM
Model 4900M0290-01
Rev. 8/19 4-3

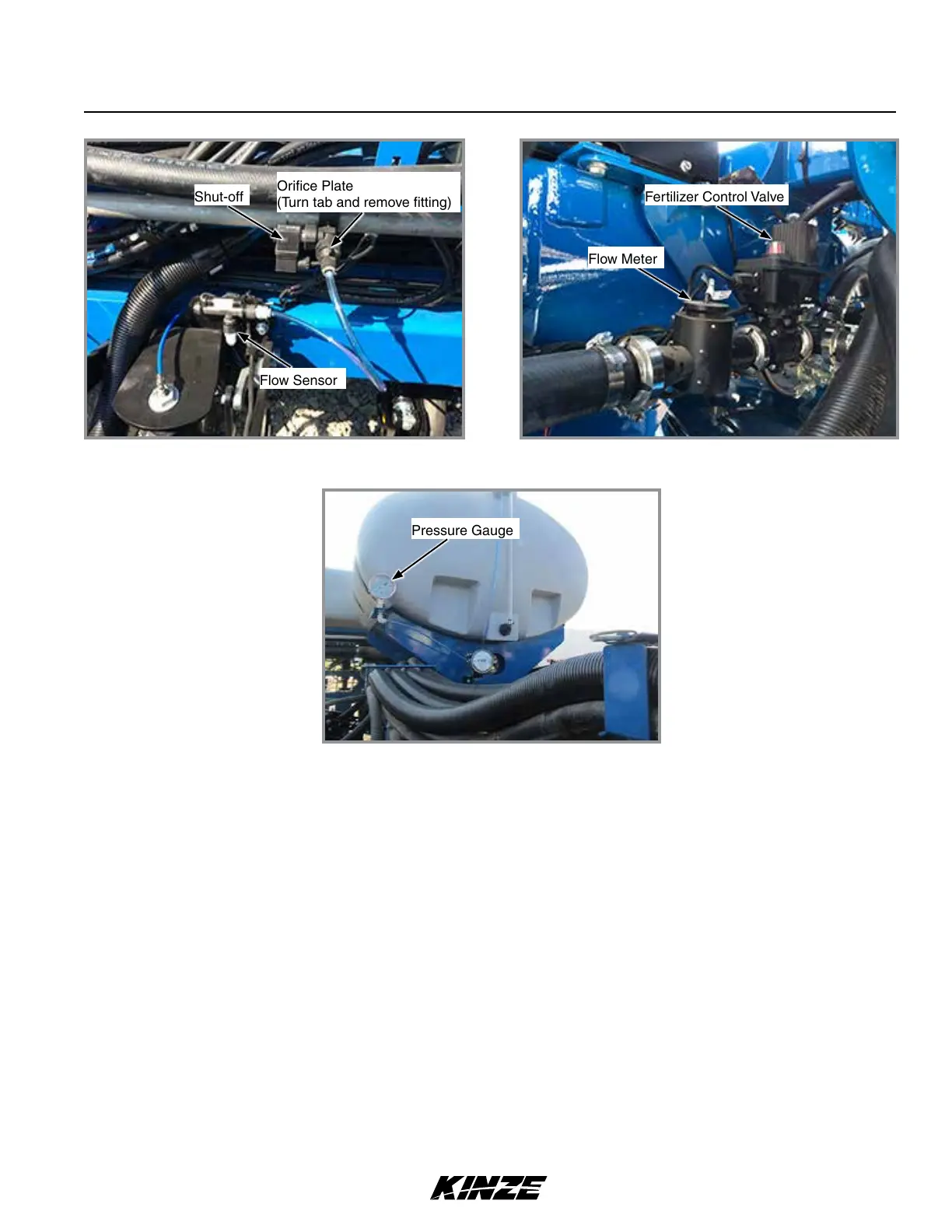

Fertilizer
Flow Sensor
Shut-off Fertilizer Control Valve
Flow Meter
Flow Meter measures fertilizer rate when operating in the field and is displayed in the tractor cab.
Fertilizer Control Valve controls the fertilizer rate and changes rate with change in speed from input from the flow meter.
Shut-off 24 volt shut-off stops fertilizer when coming into a planted area.
Flow Sensor functions as a blockage sensor to signal operator when there is a blockage or no fertilizer flow when
there should be. Flow sensor does not indicate rate.
Orifice Plate is factory installed with a 0.037" diameter. To access the orifice, turn the tab counterclockwise and
remove the fitting and tube.
Pressure Gauge is located on the tank. On some models, the pressure gauge may be located on the end of the toolbar.
Underneath Bulk Fill TankOn Toolbar at Row
Pressure Gauge
Orifice Plate
(Turn tab and remove fitting)
