4.3 Connections with External Amplifier (Type 9287C)
The following figure shows the elements required for a
complete measuring system.

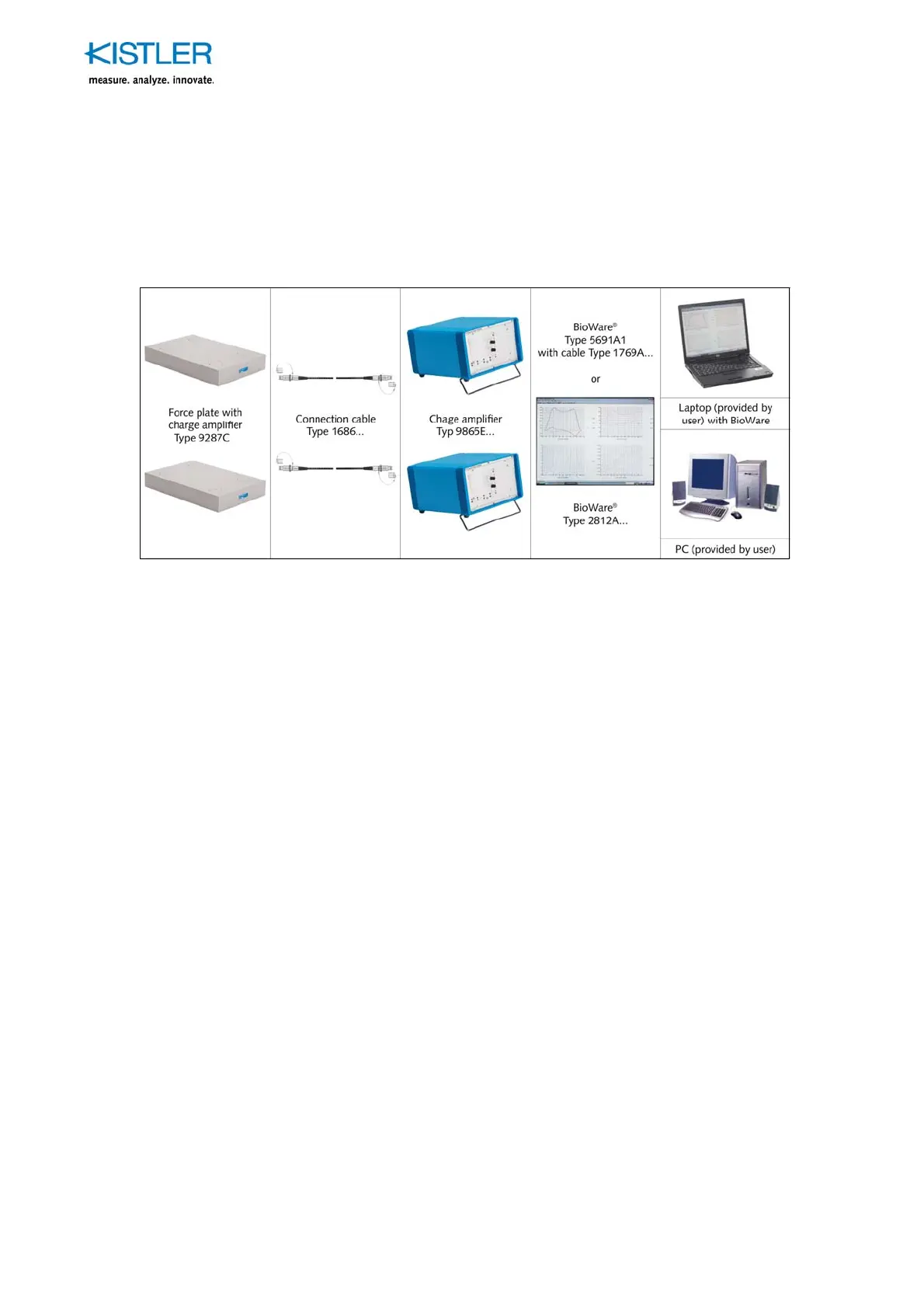

Fig. 5: Measuring system with BioWare
®
and two force
plates Type 9287C
Instead of the BioWare software system also other process-
ing and indicating instruments can be connected to the
charge amplifier.
