Assembly, Installation and Putting Into Operation

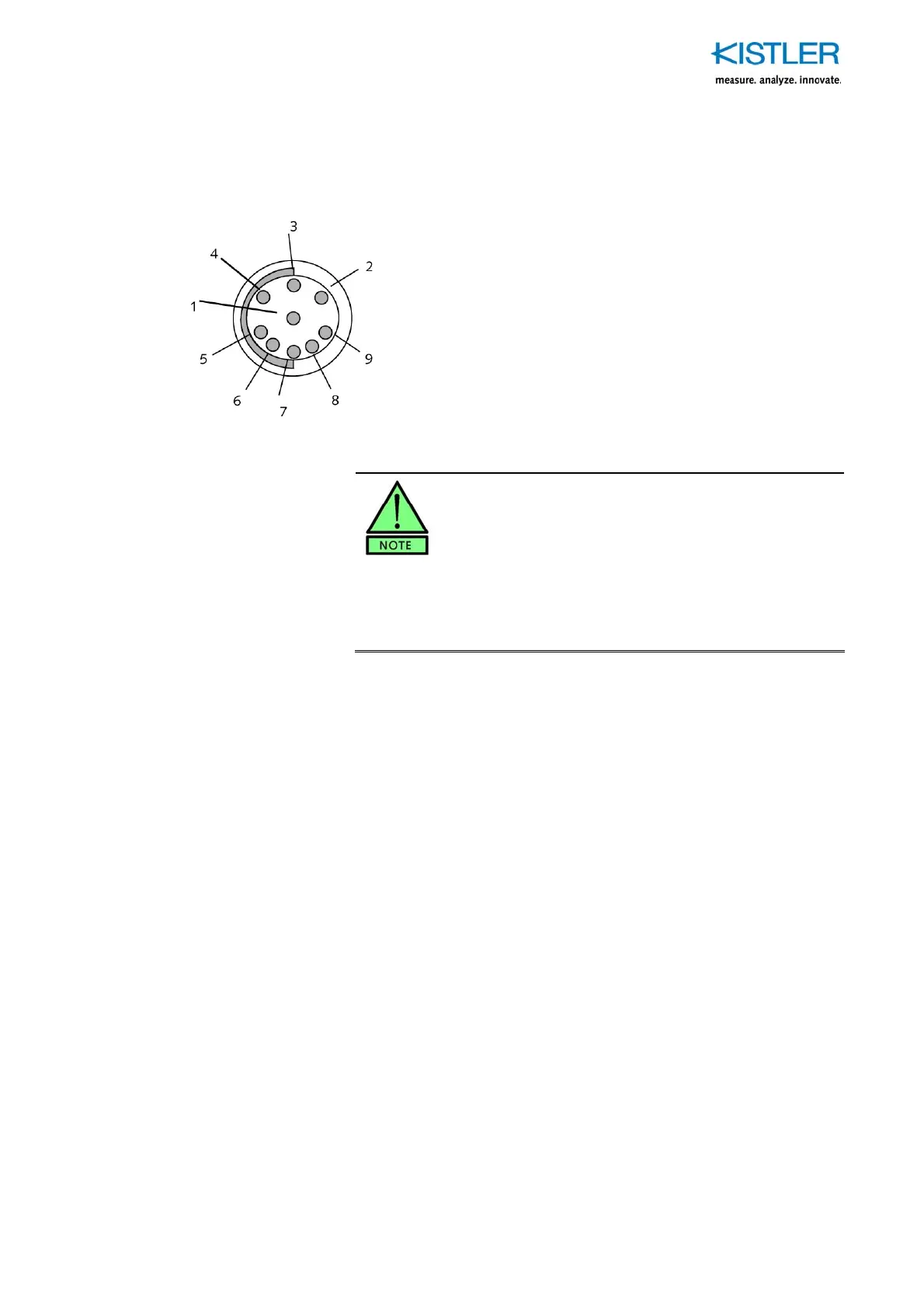

4.3.1 Output Connector of Force Plate Type 9287C (with External Amplifier)
1 Masse
2 F
x1+2
3 F
x3+4
4 F
y1+4
5 F
y2+3
6 F
z1
7 F
z2
8 F
z3
9 F
z4
Socket type: 9-pin Fischer DEE 104A055
Important Remarks:
It is very important that the correct type of cable be
used only
If the contacts or insulating material are contami-
nated, they can be cleaned with cleaning spray
(Type 1003) or clean white gasoline (rectified ben-
zene). The insulation resistance >10 TΩcan be
measured using an insulation measuring instrument
(Type 5493). Please contact our agent for support
9287C
_002-462e-03.11 Page 15
