Assembly, Installation and Putting Into Operation
4.4.1 Output Connector of Force Plate Type 9287CA (with Built-in Amplifier)
1 Exct. GND
2 F
z4
3 F
z3
4 F
z2
5 F
z1
6 Betrieb
7 Control GND
8 N.C. (reserved)
9 F
x1+2
10 F
x3+4
11 F
y1+4
12 F
y2+3
13 A' (Range z select)
14 Signal GND
15 N.C. (reserved)
16 A (Range x, y select)
17 B (Range x, y select)
18 B' (Range z select)
19 Exct. +10 … 30 VDC

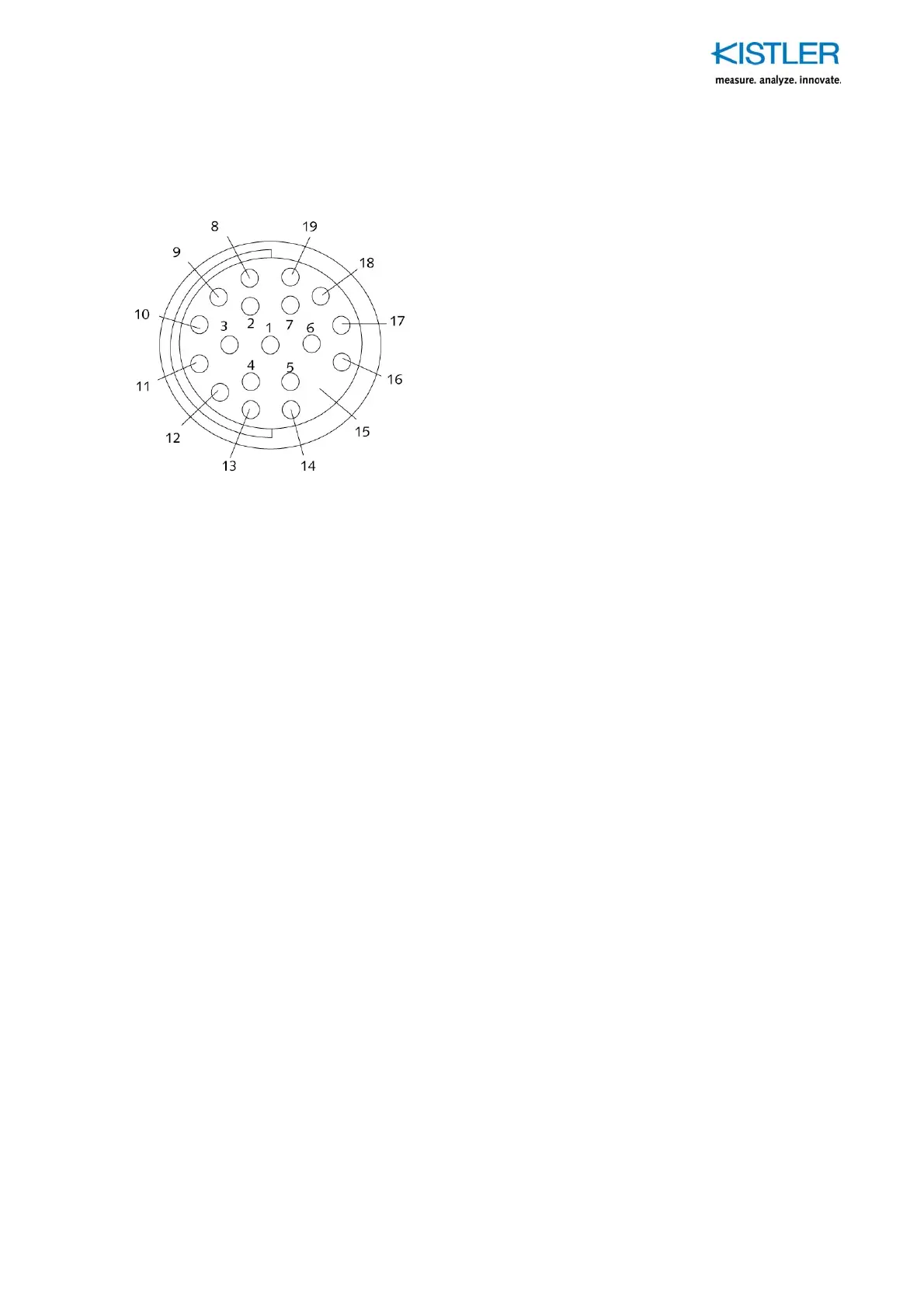

Socket type: 19 pin Fischer DEE 104A092-130
Fig. 8: Front view
9287C
