KitchenAid KESI901PBL - Installation Clearances

2-4

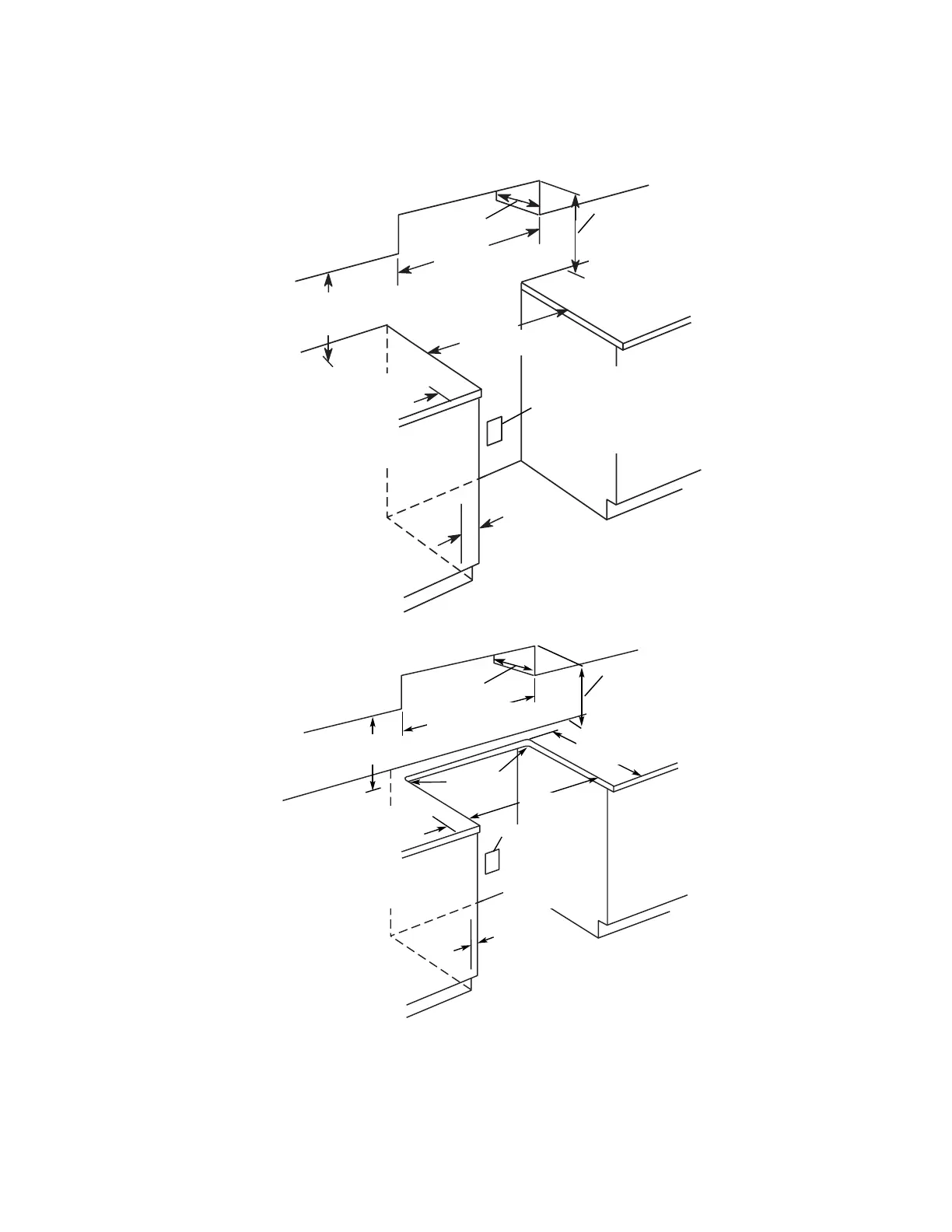

INSTALLATION CLEARANCES
Cabinet opening dimensions shown are for
25,″ (64 cm) countertop depth, 24″ (61 cm)
NOTE: 24″ (61 cm) minimum when bottom of
wood or metal cabinet is protected by not less
than 1/4″ (0.64 cm) flame retardant millboard
covered with not less than No. 28 MSG sheet
steel, 0.015″ (0.4 mm) stainless steel, 0.024″
13" (33 cm) max.
upper cabinet depth
For minimum
clearance to
the top of the
cooktop, see
NOTE.
30" (76.2 cm) min.
opening width
30" (76.2 cm) min.
opening width
18" (45.7 cm)
upper cabinet
to countertop
4" (10.2 cm)
min. clearance
from both sides
of range to side
wall or other
combustible
material.
Junction box -
8" (20.3 cm) to
22" (55.9 cm) from
either cabinet,
7" (17.8 cm) max.
from door.
7/8" (2.2 cm)
min. required
between cutout
and cabinet
door or hinge.
(0.6 mm) aluminum, or 0.020″ (0.5 mm) cop-
per.
30″ (76.2 cm) minimum clearance between the
top of the cooking platform and the bottom of an
unprotected wood or metal cabinet.
Junction box -
8" (20.3 cm) to
22" (55.9 cm) from
either cabinet,
7" (17.8 cm) max.
from floor.
22-3/4
" (57.8 cm)
opening depth
30" (76.2 cm)
opening width
For minimum
clearance to
the top of the
cooktop, see
NOTE.
18" (45.7 cm)
upper cabinet to
countertop
13" (33 cm)
upper cabinet depth
30" (76.2 cm)
opening width
7/8" (2.2 cm) min.
required between
cutout and cabinet
door or hinge.
4" (10.2 cm) min.
clearance from
both sides of
range to side wall
or other combustible
material between
upper cabinet and
countertop.
1/4" (6.2 cm)
radius both
corners
base cabinet depth and 36″ (91.4 cm)
countertop height.
Freestanding Range
Slide-In Range
