COMPONENT LOCATIONS

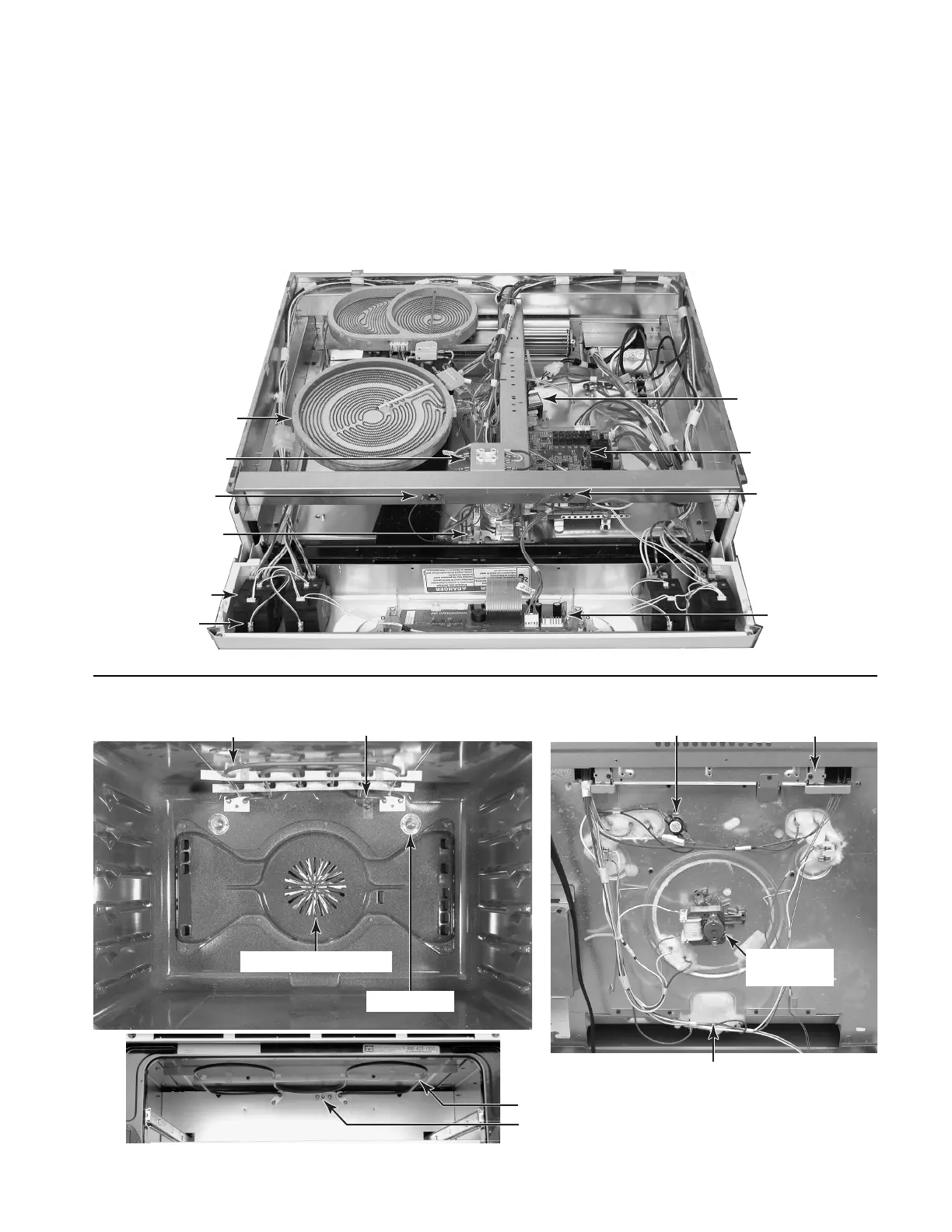

Cooktop Components
This section instructs you on how to service each component inside the Self-Cleaning Slide-In/
Freestanding Electric Ranges. The components and their locations are shown below.
COMPONENT ACCESS
Oven & Rear Components
Element & Limiter
Hot Surface
Indicators
Control Power
Supply
Power Supply
Transformer
Cooling Fan
Door Latch
Assembly
LED Indicator
Infinite Switch
Electronic
Oven Control
Dual Broil Element Oven Temp Sensor
Convection
Fan Motor
Oven Light
Oven TOD
Convection Element
Hidden Bake Element
Warming Drawer Element
Cooling Fan
Thermal Switch
Control Thermal
Switch
Warming Drawer Temp Sensor
