4-16

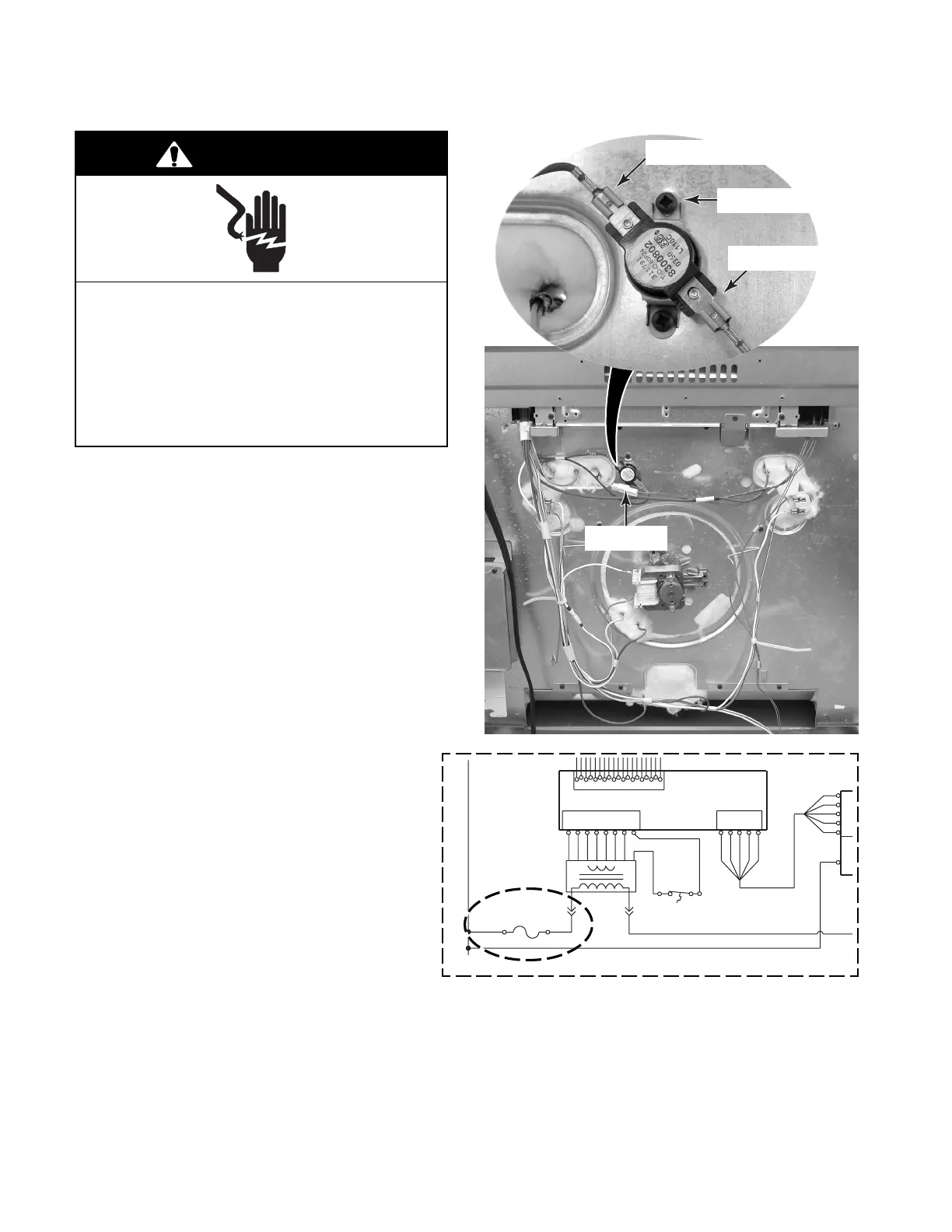

REMOVING THE OVEN TOD
1. Unplug range or disconnect power.
2. Pull the range out of its mounting location
so that you can access the rear of the unit.
3. Remove the rear panel from the unit (see
page 4-9 for the procedure).
4. Remove the two wire connectors from the
oven TOD terminals.
5. Remove the two screws from the oven
TOD and remove it.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
WARNING
Oven TOD
Screw (1 of 2)
Wire Connector
Wire Connector
BK
L1
BK
BK
P2
TRANSFORMER
W
BK
BK
P1
P4-1
DISPLAY
BOARD
TOD 130
°
C (266
°
F)
THERMAL SW
OPENS @ 96.1
°
C
±
3
°
C
(205
°
F
±
5.4
°
F)
BK
To Next Page
