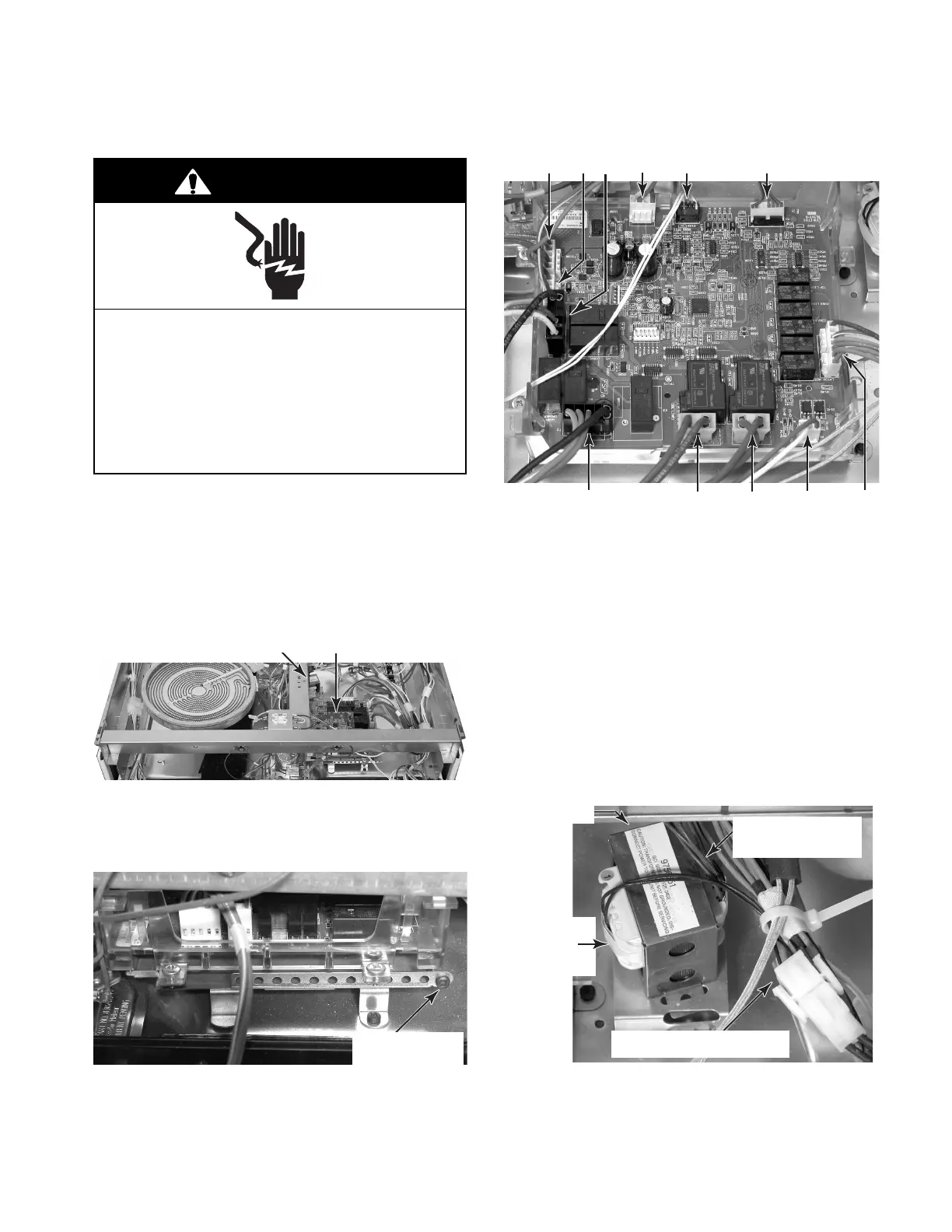

REMOVING THE CONTROL POWER SUPPLY AND
THE POWER SUPPLY TRANSFORMER
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
WARNING
1. Unplug range or disconnect power.
2. Remove the control panel and rotate it
forward (see page 4-2, steps 2a through
2d for the procedure).
3. Remove the cooktop glass (see page 4-5
for the procedure).
5. To remove the power supply transformer:
a) Disconnect the primary wire connector
from the wire harness, and remove the
wires and connector from the wire tie.
b) Disconnect the secondary wire con-
nector from electronic oven control
(EOC) connector P1, and the two blue
wires from the control thermal switch
terminals.
c) Remove the power supply transformer
screw from the bracket and remove the
transformer.
4. To remove the control power supply:
a) Remove the control power supply
mounting screw from the bracket.
Control Power SupplyPower Supply Transformer
Control Power
Supply Screw
P2 P1 T3 P7 P6 P3
T2 T1A T1B P5 P4
Primary Wire Connector
Secondary Wires
At EOC-P1
Screw
Power
Supply
Transformer
b) Disconnect the wire connectors from
the control power supply terminals, and
remove the module from the unit.
