KitchenAid KESI901PBL - Diagnostics & Troubleshooting; Diagnostics

6-1
DIAGNOSTICS & TROUBLESHOOTING
DIAGNOSTICS
ENTERING MANUAL DIAGNOSTICS
Within 120 seconds of power up, press the following keys to enable the relay capabilities listed
below, and enter the manual diagnostics mode:
a) Cancel key.
b) Cancel key.
c) Start key.
ENGAGING THE RELAYS
Pressing the following keys will toggle the state of the associated relays. NOTE: For the latch relay,
the self-clean button will turn on the latch relay, and changing the state of the latch switch will turn
off the relay.

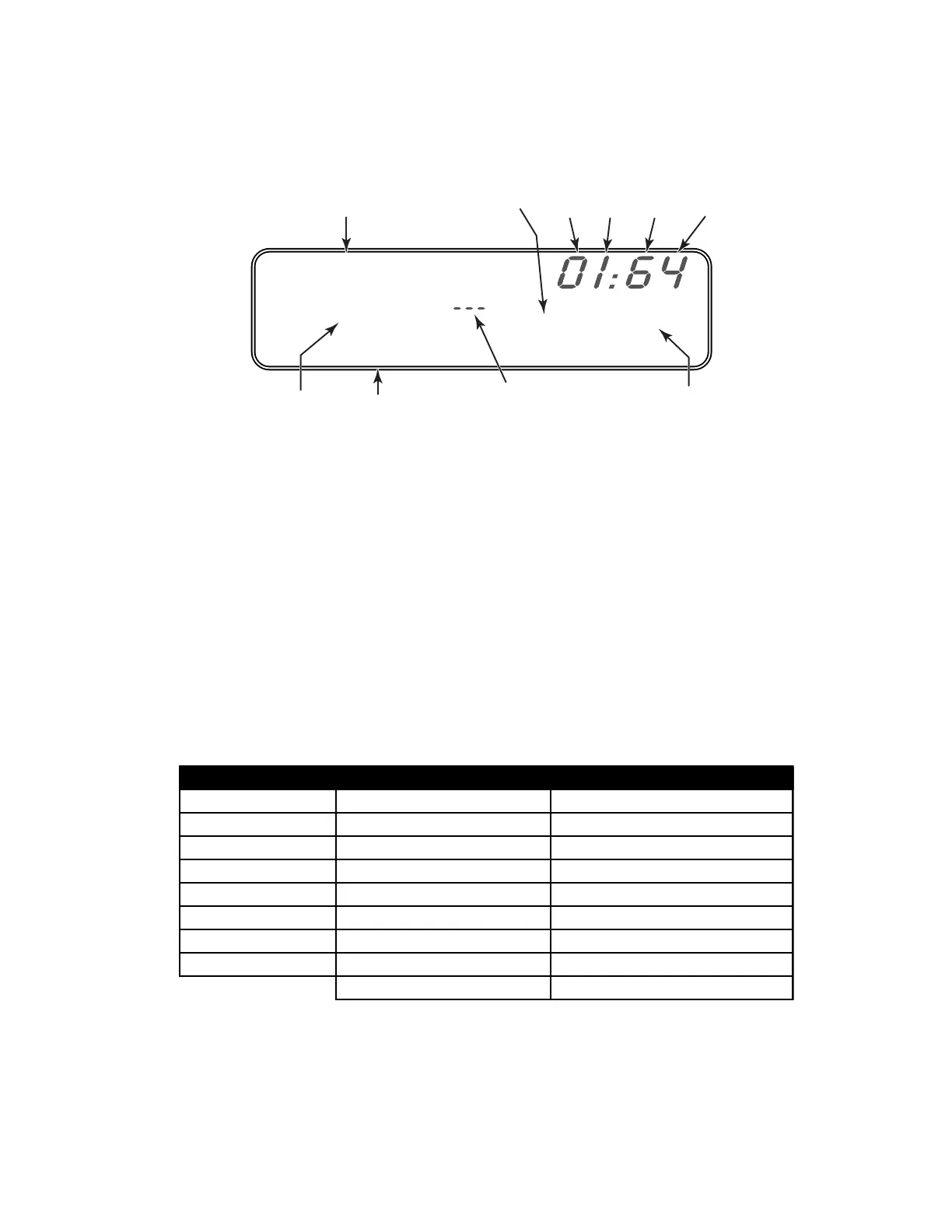

O . BROIL REL CYCLED
Relay Being
Engaged
Latch
Switch
Meat Probe
Readout*
Warming Drawer
Sensor Readout*
#2 Oven Temp
Sensor Readout*
#1 Oven Temp
Sensor Readout
Version
Door
Switch
F
Code
E
Code
AM34 UI30 EEKET - 002
72
73 73
F
00
* If available (3 dashes will be shown if not available)
DOUBLE LINE BREAK (DLB), FANS, AND OPEN DOOR
During diagnostics, all fans and elements may operate with the door open. NOTE: The latch motor
will not cycle with the door open.
On electric models, the double line break (DLB) will engage when entering the diagnostics mode,
and will disengage when exiting the diagnostics mode.
Key Press Relay Text Line Display
Bake Key Bake Relay BAKE RELAY CYCLED
Maxi Broil Key Outer Broil Relay O.BROIL REL CYCLED
Econo Broil Key Inner Broil Relay I.BROIL REL CYCLED
Convect Bake Conv Relay and Fan CONV REL CYCLED
Warm Drawer On Warm Drawer Relay WD RELAY CYCLED
Top Light Oven Light Relay O LIGHT REL CYCLED
Oven Light Top Light Relay T LIGHT REL CYCLED
Clean Key Cycle Motor ROTATING MOTOR
After Latch Sw Toggles MOTOR ROTATED
