4-4

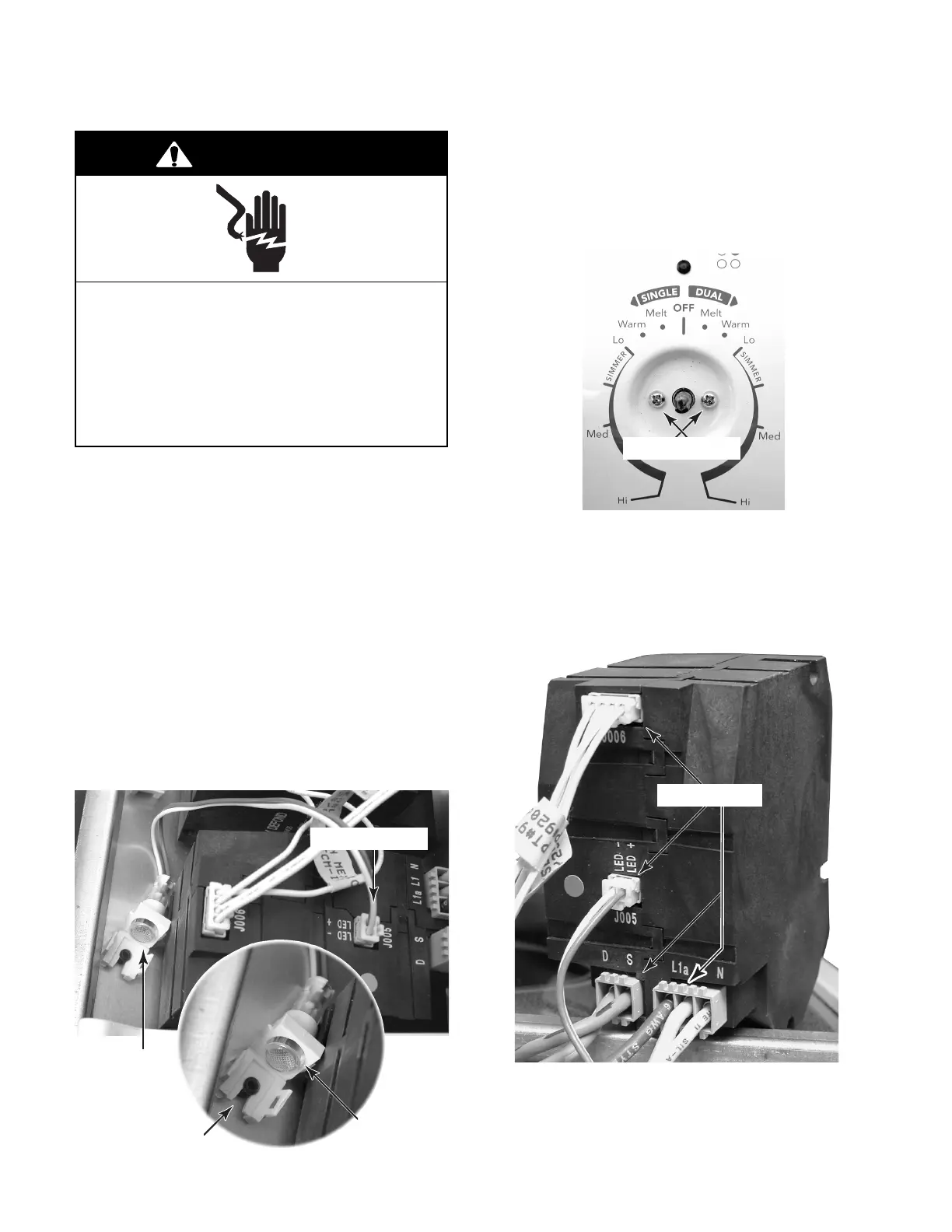

REMOVING AN LED INDICATOR AND AN INFINITE SWITCH
1. Unplug range or disconnect power.
2. Remove the control panel and rotate it
forward (see page 4-2, steps 2a through
2d for the procedure).
3. To remove an LED indicator:
a) Pry out on the two locking tabs and
rotate the indicator body 90°.
b) Disconnect the LED connector from
the infinite switch at J005.
c) Remove the LED indicator from the
body.
d) If you wish to remove the indicator
body, slide if off the red lens.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
WARNING
4. To remove an infinite switch:
a) Pull the knob off the infinite switch you
wish to service.
b) Remove the two two screws from the
infinite switch.
c) Remove the infinite switch from the
control panel and disconnect the 4 wire
connectors. NOTE: Release the lock-
ing arm on each connector before re-
moving the connector.
LED
Slide Indicator
Body Off Lens
Rotate
Body 90°
LED Connector
Switch Screws
4 Connectors
To Next Page
