5-7
Refer to page 4-17 for the procedure for servic-
ing the hidden bake element.
1. Unplug range or disconnect power.
2. Disconnect one of the wires from the hid-
den bake element terminals.
3. Set the ohmmeter to the R x 1 scale.
4. Touch the ohmmeter test leads to the
hidden bake element terminals. The meter
should indicate between 21 and 33 Ω.

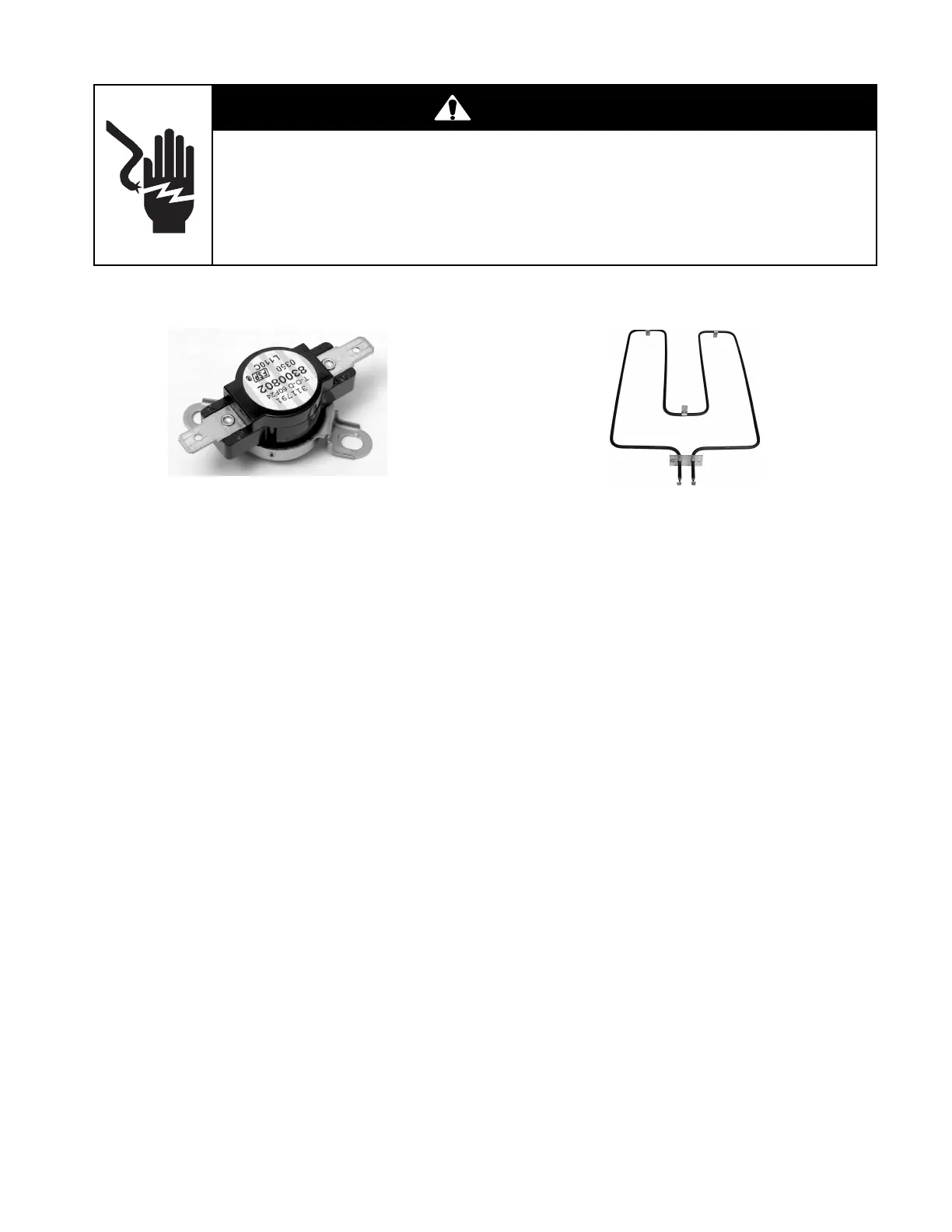

HIDDEN BAKE ELEMENT
OVEN TOD
Refer to page 4-16 for the procedure for ser-
vicing the oven TOD.
1. Unplug range or disconnect power.
2. Disconnect one of the wires from the oven
TOD terminals.
3. Set the ohmmeter to the R x 1 scale.
4. Touch the ohmmeter test leads to the
oven TOD terminals. The meter should
indicate a closed circuit (0 Ω).
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
