REMOVING & REINSTALLING THE OVEN DOOR
To reinstall the oven door:
1. While tilting the door back slightly from a
vertical position, insert the hinge hangers
into the chassis slots as far as they will go.
Continue to push in on the bottom, and
fully open the door.
2. Rotate the locking arm on the hinge hang-
ers to the locked, or fully “down” position.
3. Open and close the oven door to make
sure that it operates and seals properly.
To remove the oven door:
1. Fully open the door.
2. Rotate the locking arm on the door hinge
from the locked “down” position, to the
unlocked “up” position.
3. Close the door to within six to eight inches,
then pull out on the bottom of the door
while slowly closing the door, and remove
the hinge hangers from the slots in the
chassis.

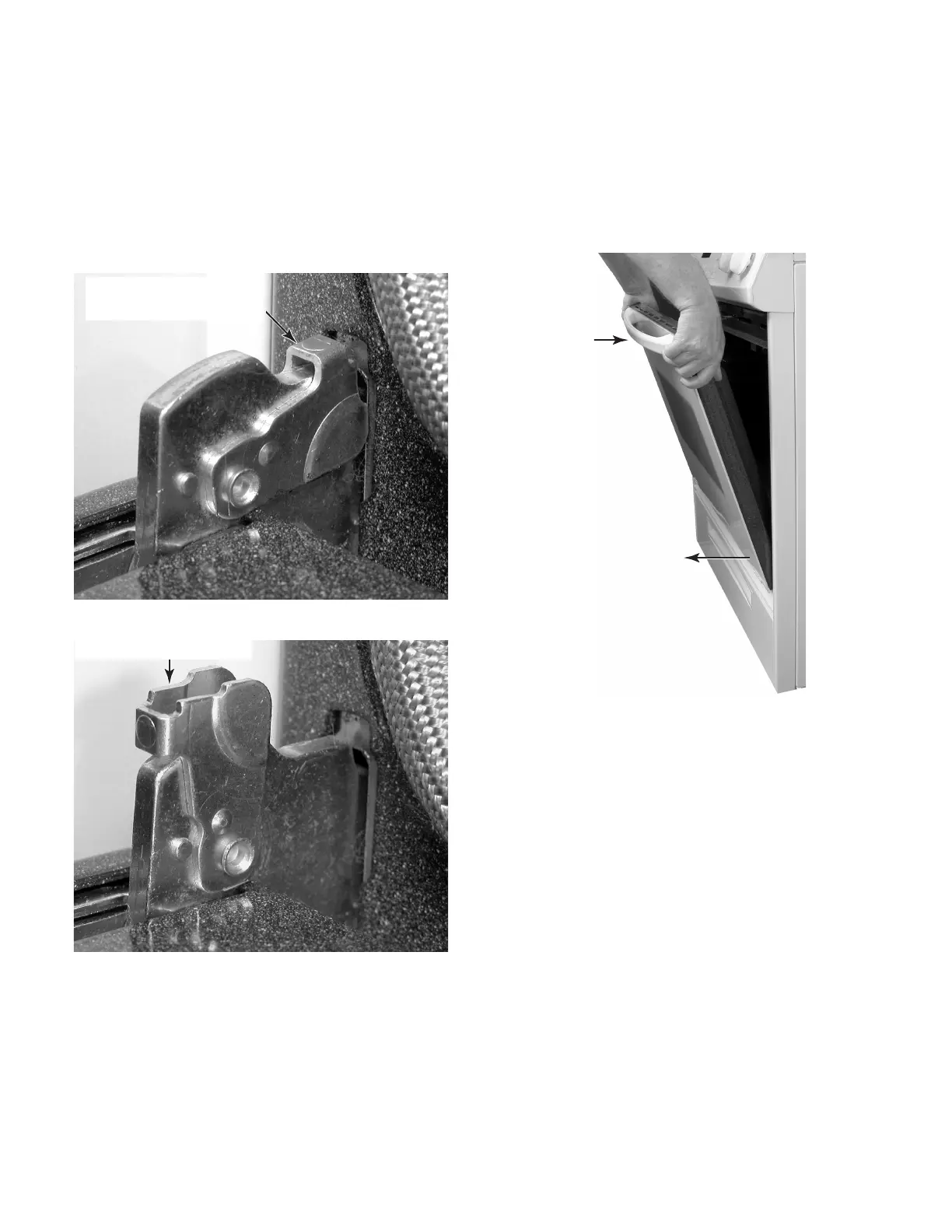

Locking Arm In The
Locked “Down” Position
Locking Arm In The
Unlocked “Up” Position
Pull Out
Close
To Remove Door
